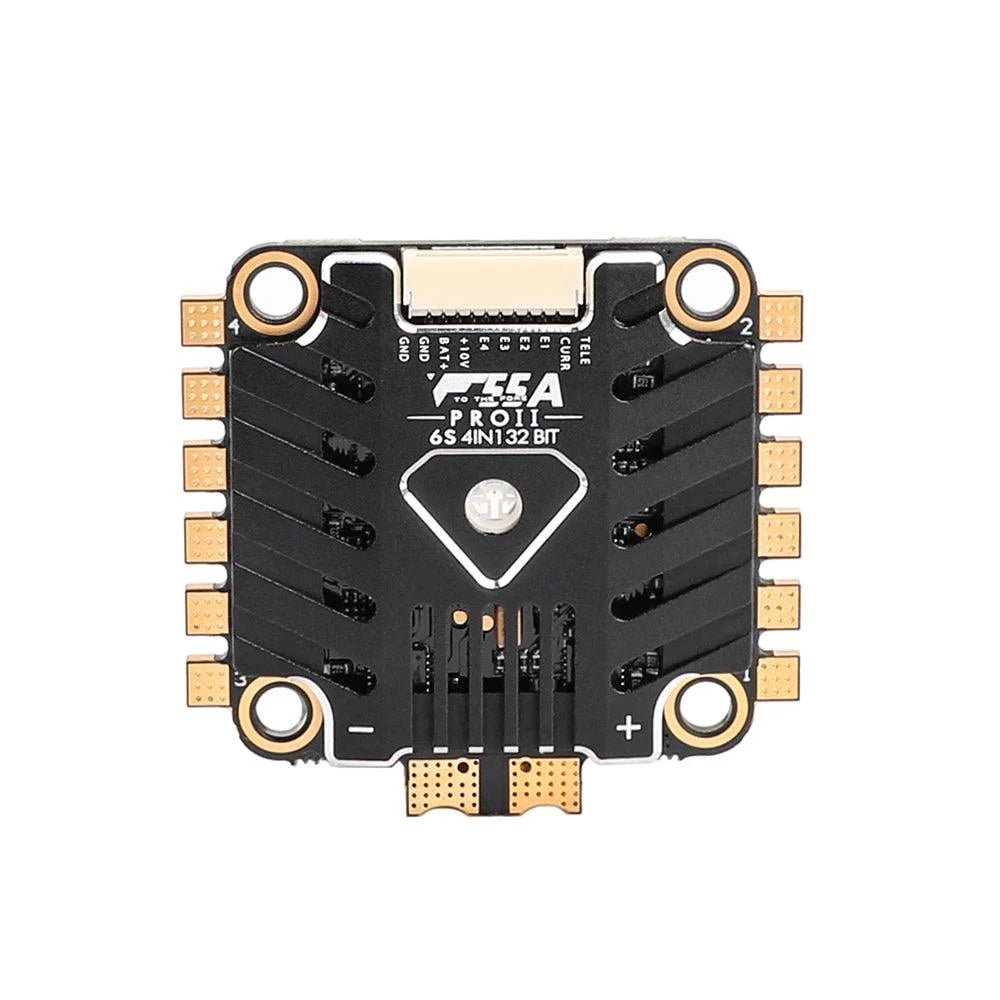

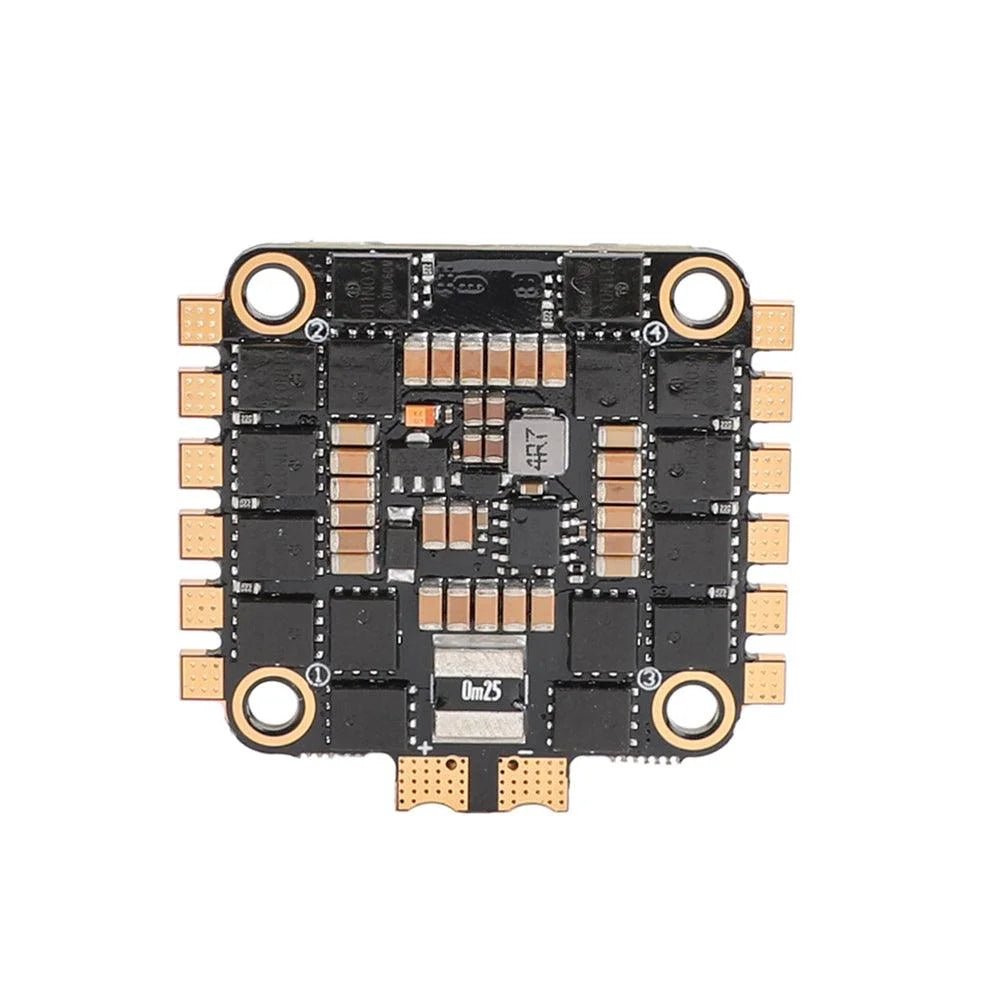

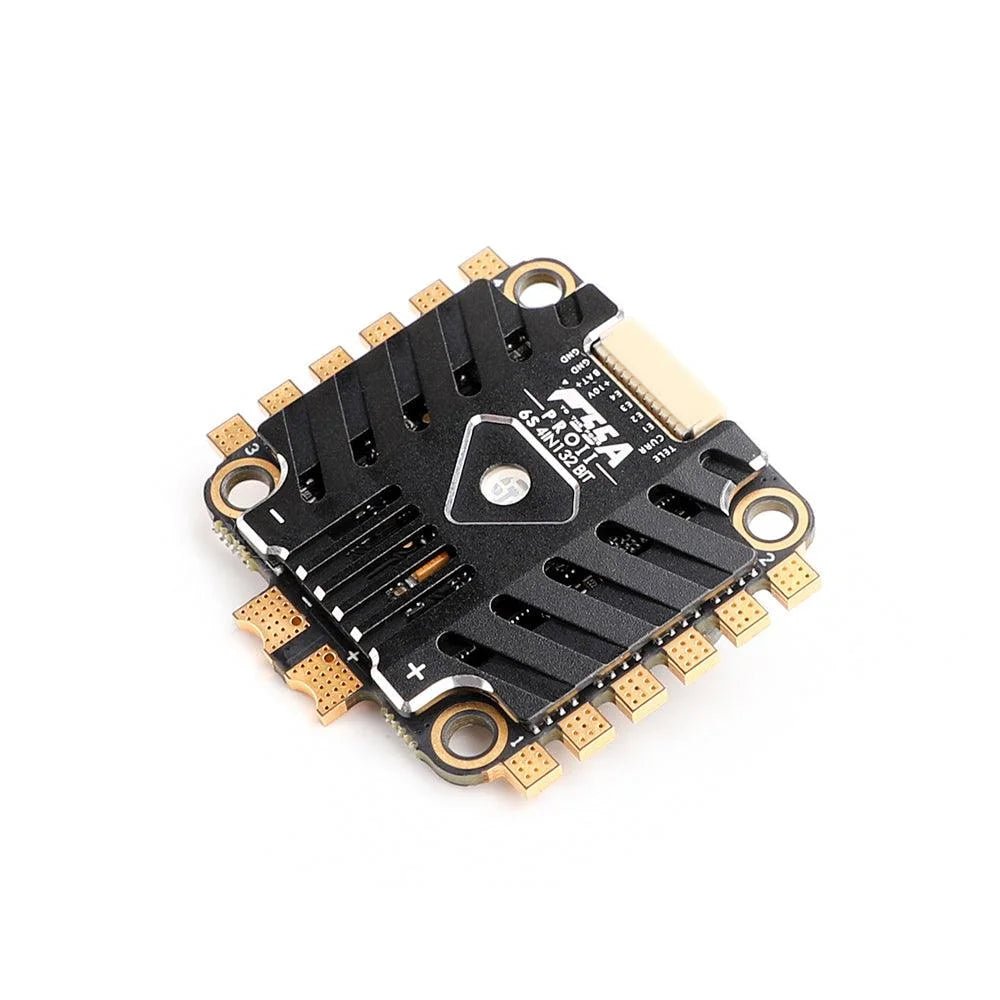

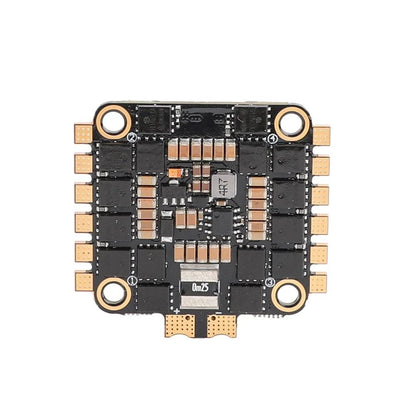

T-MOTOR F55A Pro II 4-in-1 ESC - 55A 32-Bit 3-6S (30x30)

Description

The Indestructible Choice for High-Performance Builds.

The T-Motor F55A Pro II is widely regarded as one of the most durable and reliable ESCs ever made. Designed for professional racing and heavy-duty freestyle, it features a massive CNC-machined aluminum heatsink that keeps the electronics cool even under extreme loads. Powered by a 32-bit processor, it delivers smoother motor response and higher efficiency than standard ESCs.

Key Features:

• Superior Cooling: The unique aluminum fin design efficiently dissipates heat, preventing overheating during aggressive flights.

• 32-Bit Performance: Running BLHeli_32 firmware, this ESC supports telemetry and high PWM frequencies (up to 96K) for silky smooth flight characteristics.

• High Power: 55A continuous current with a massive 75A burst capability handles the most powerful 2207 and 2306 motors with ease.

• Reliability: Premium MOSFETs and onboard capacitors reduce electrical noise and voltage spikes.

Technical Specifications:

• Continuous Current: 55A

• Burst Current: 75A (10 seconds)

• Input Voltage: 3-6S LiPo

• Firmware: BLHeli_32

• Mounting: 30.5 x 30.5mm (M3)

• Weight: 17.5g (With heatsink)

Includes:

• 1x T-Motor F55A Pro II ESC

• 1x XT60 Power Cable & Capacitor

• 1x Wiring Harness (Compatible with T-Motor FCs)
