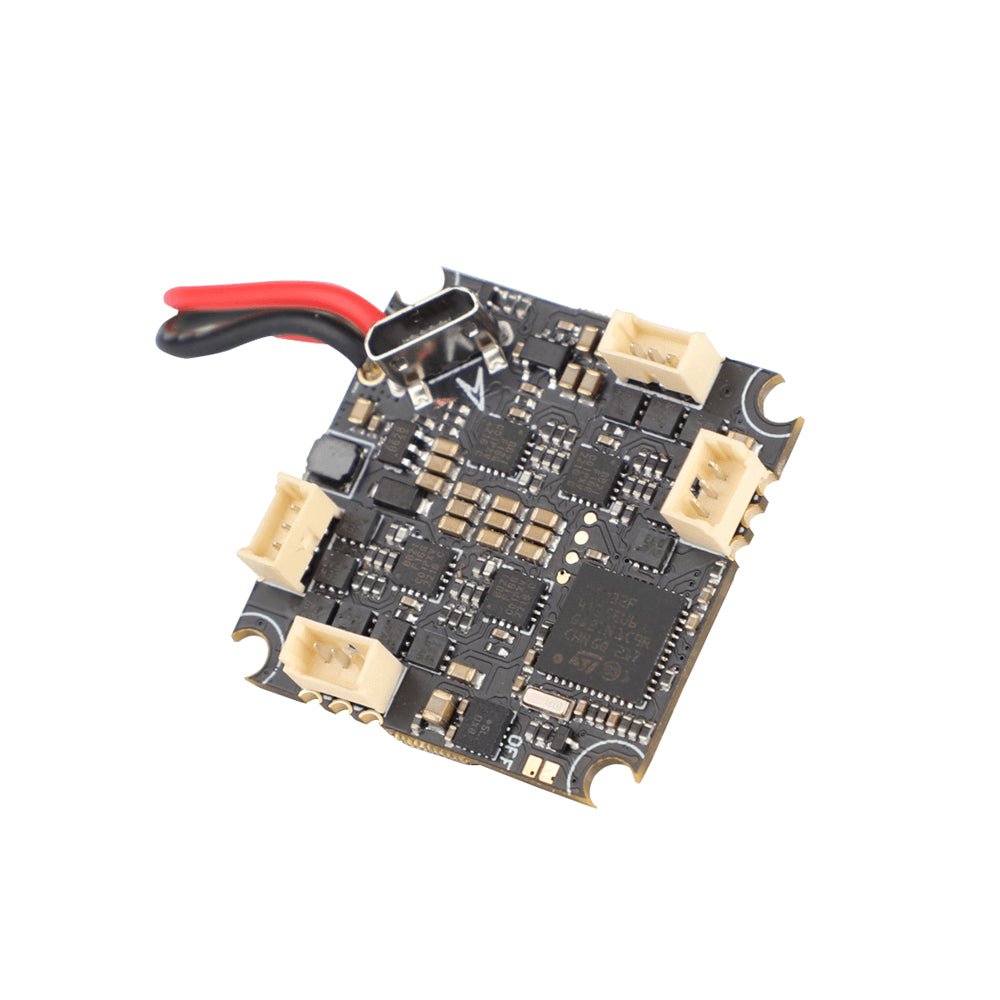

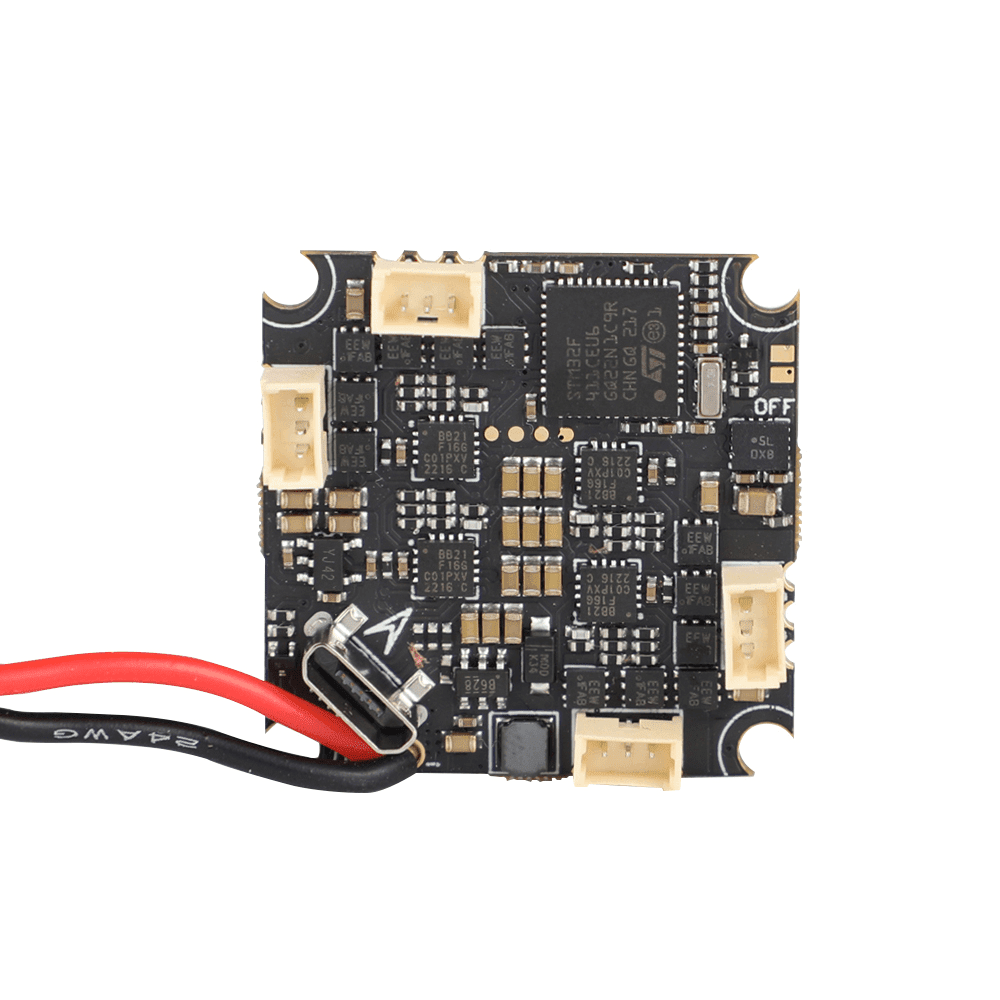

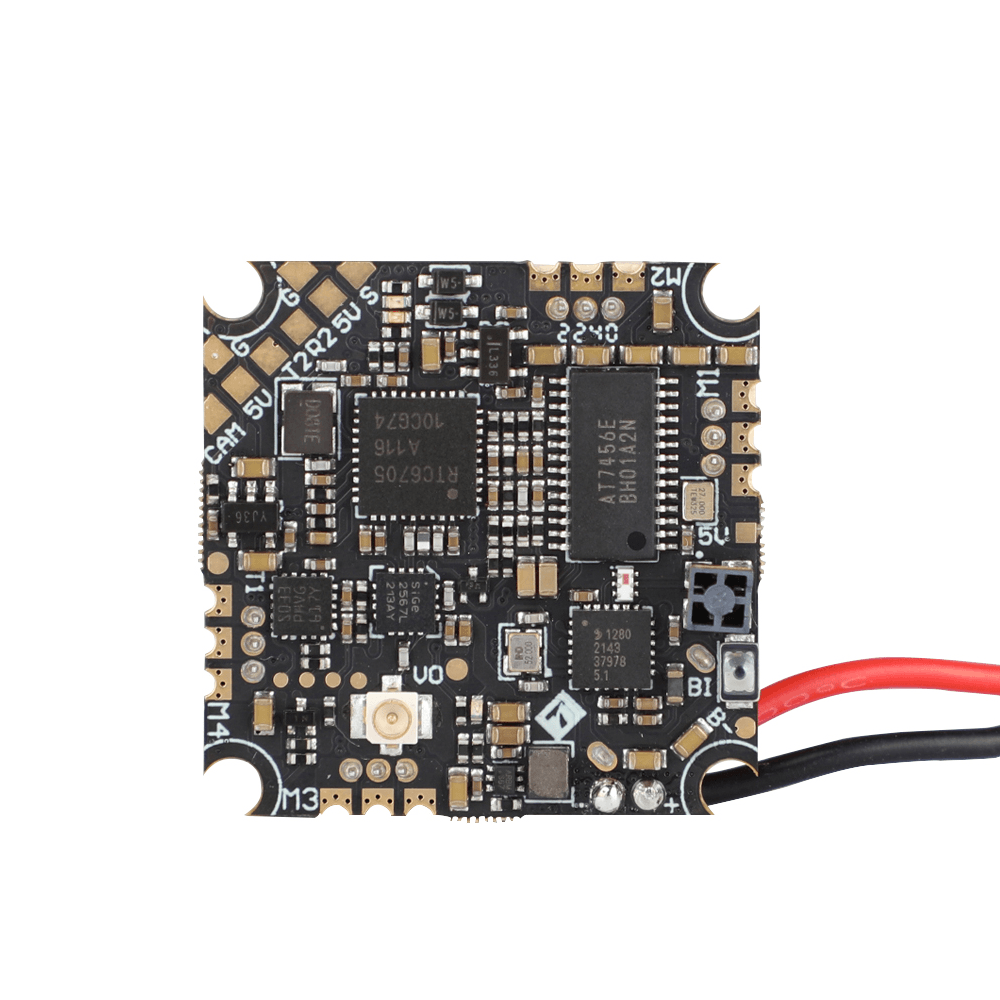

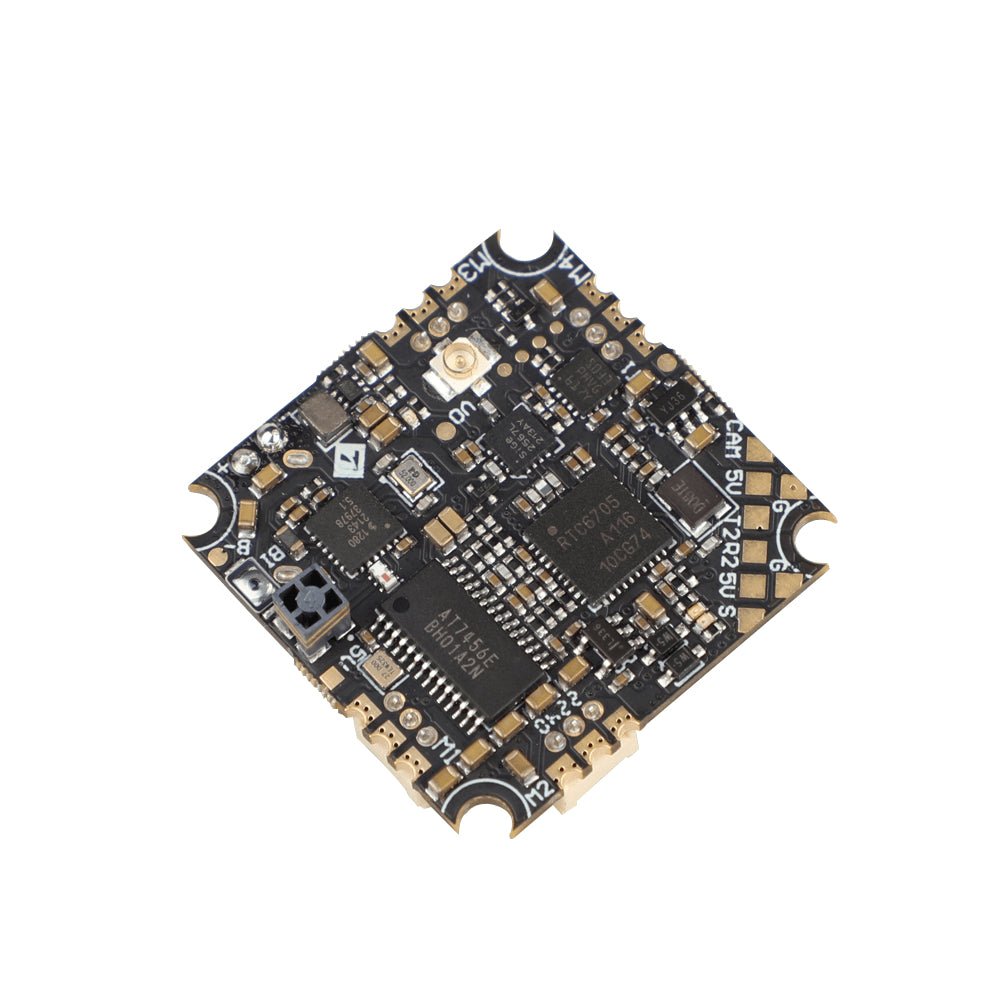

T-MOTOR F411 1S AIO - 6A Bluejay ESC + ELRS Rx + Analog VTX (Ultra-Light Whoop Board)

Description

The Ultimate All-In-One Solution for 1S Tiny Whoops.

T-Motor brings its legendary reliability to the micro world. This incredible AIO board packs a Flight Controller, 6A Bluejay ESC, ELRS Receiver, and an Analog Video Transmitter all onto a single, ultra-light PCB. Designed specifically for 65mm and 75mm whoops, it eliminates the need for messy wiring and external components.

Why this is the best upgrade for your Whoop:

• Everything Integrated: No need to buy a separate receiver or VTX. It's all built-in!

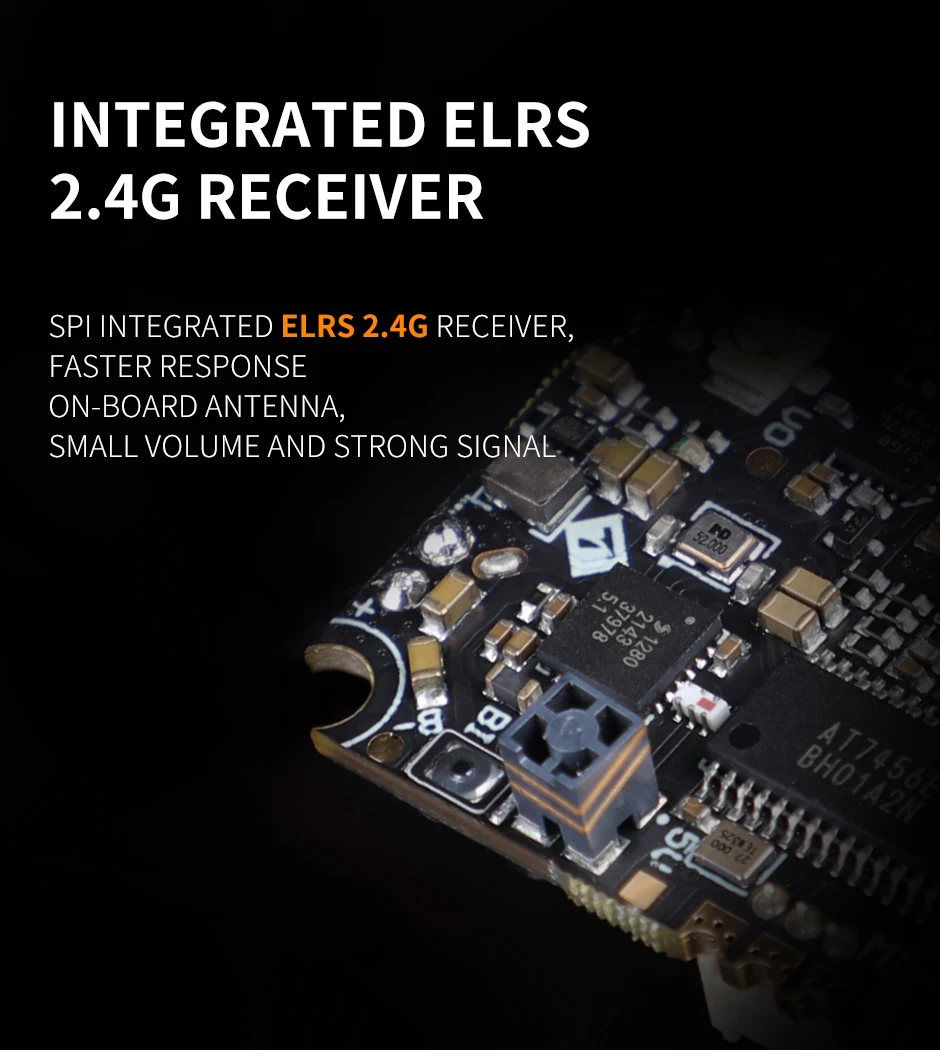

• Built-in ELRS: Comes with an integrated SPI ExpressLRS receiver for long-range and low-latency control.

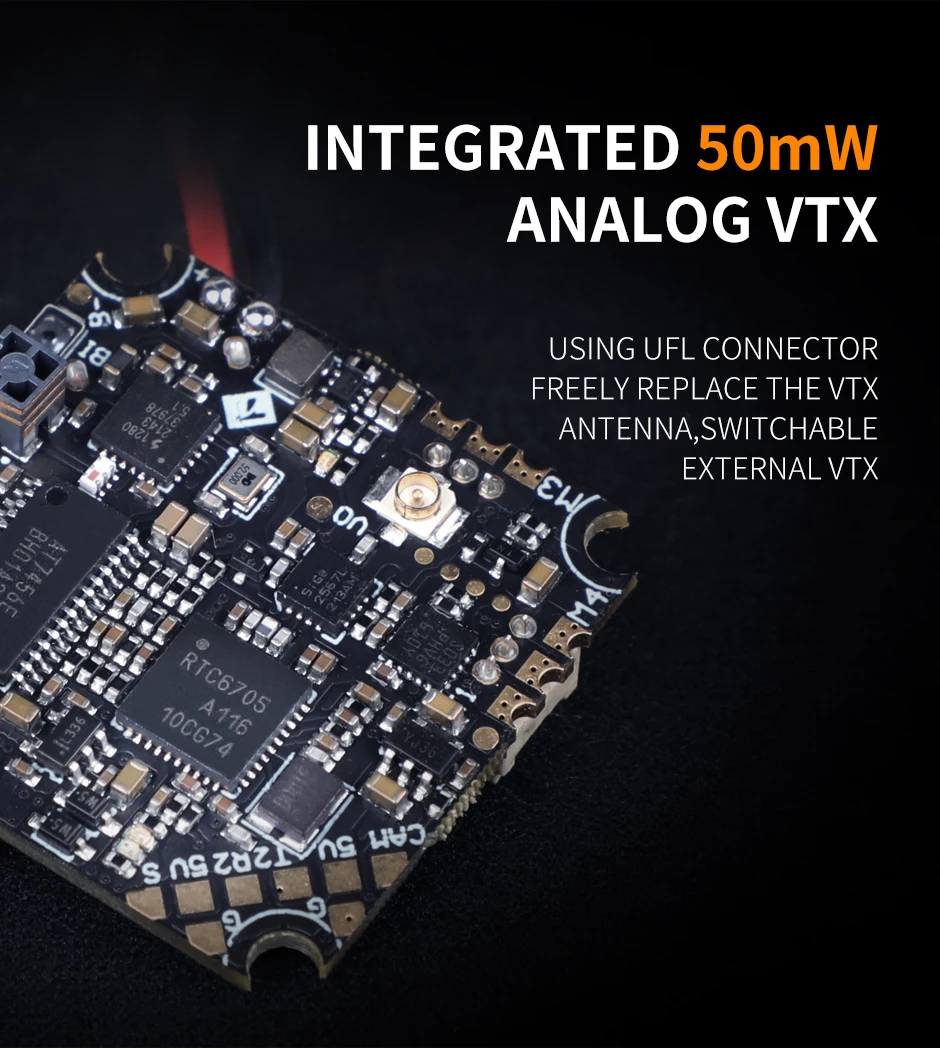

• Integrated VTX: Features an onboard 50mW analog video transmitter with SmartAudio support.

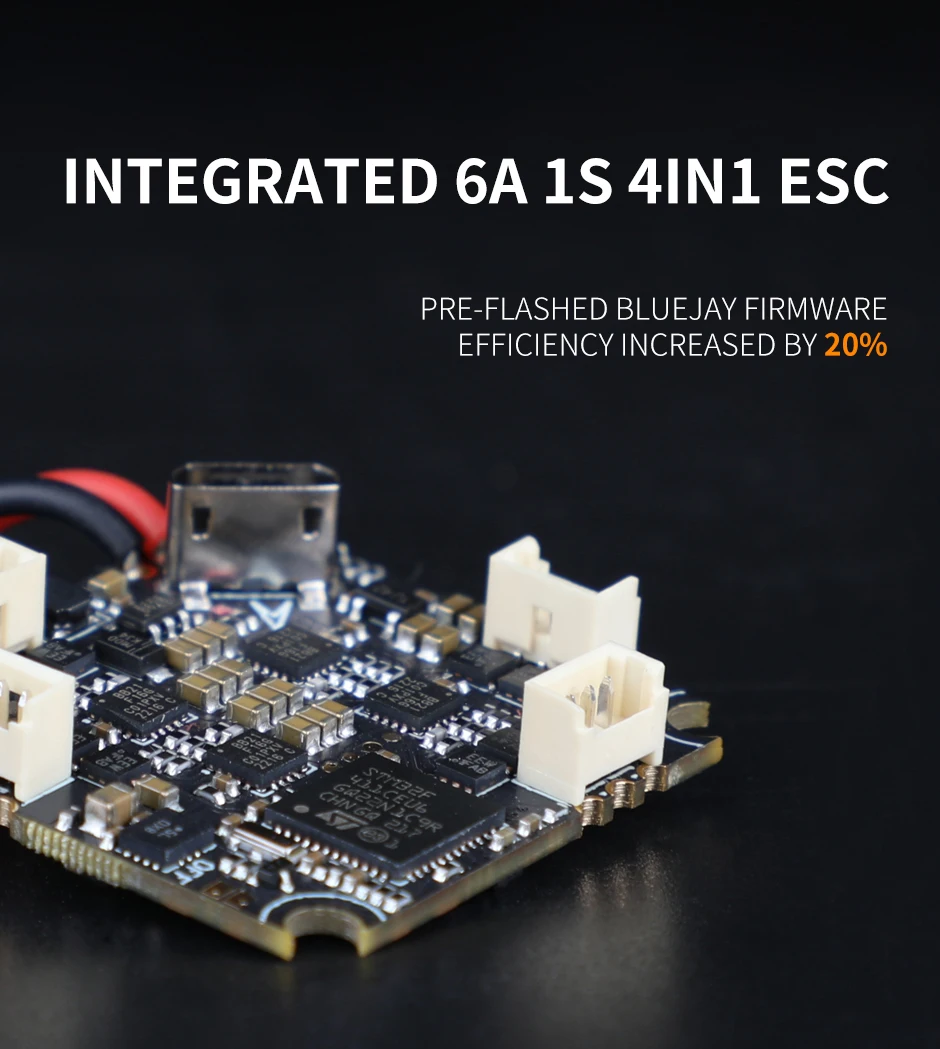

• Bluejay ESC Firmware: Pre-flashed with Bluejay for smoother motor control and support for 48kHz/96kHz PWM frequency (longer flight times).
• Ultra Light: Saves massive weight, making your tiny drone faster and more agile.

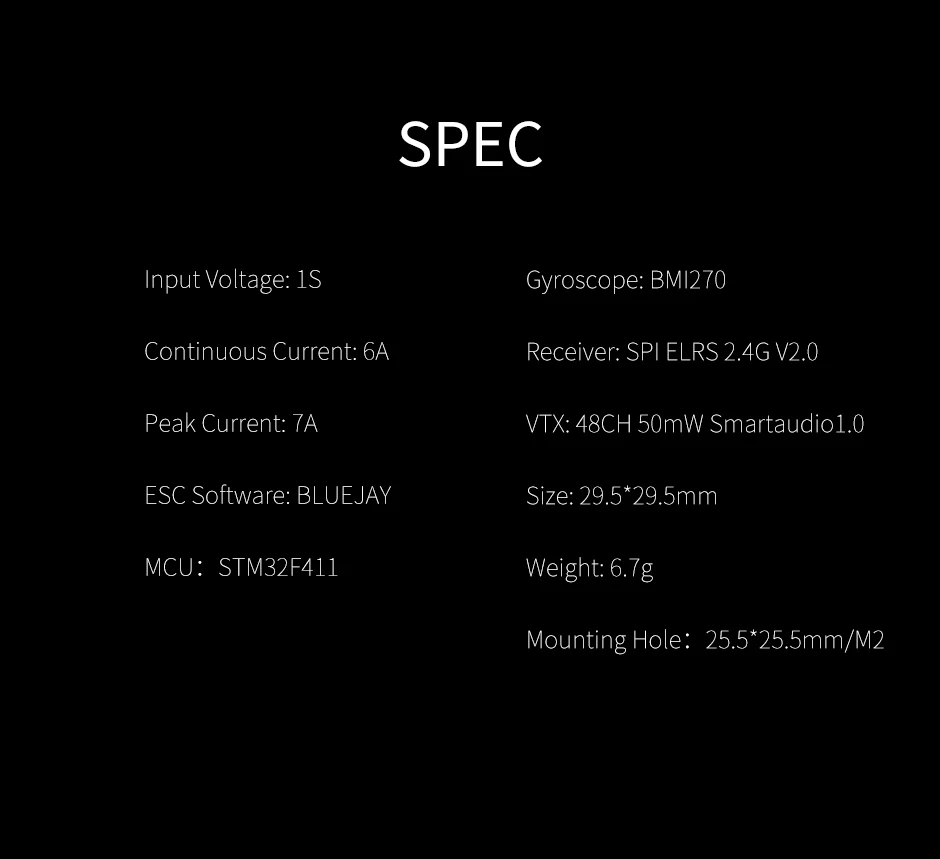

Technical Specifications:

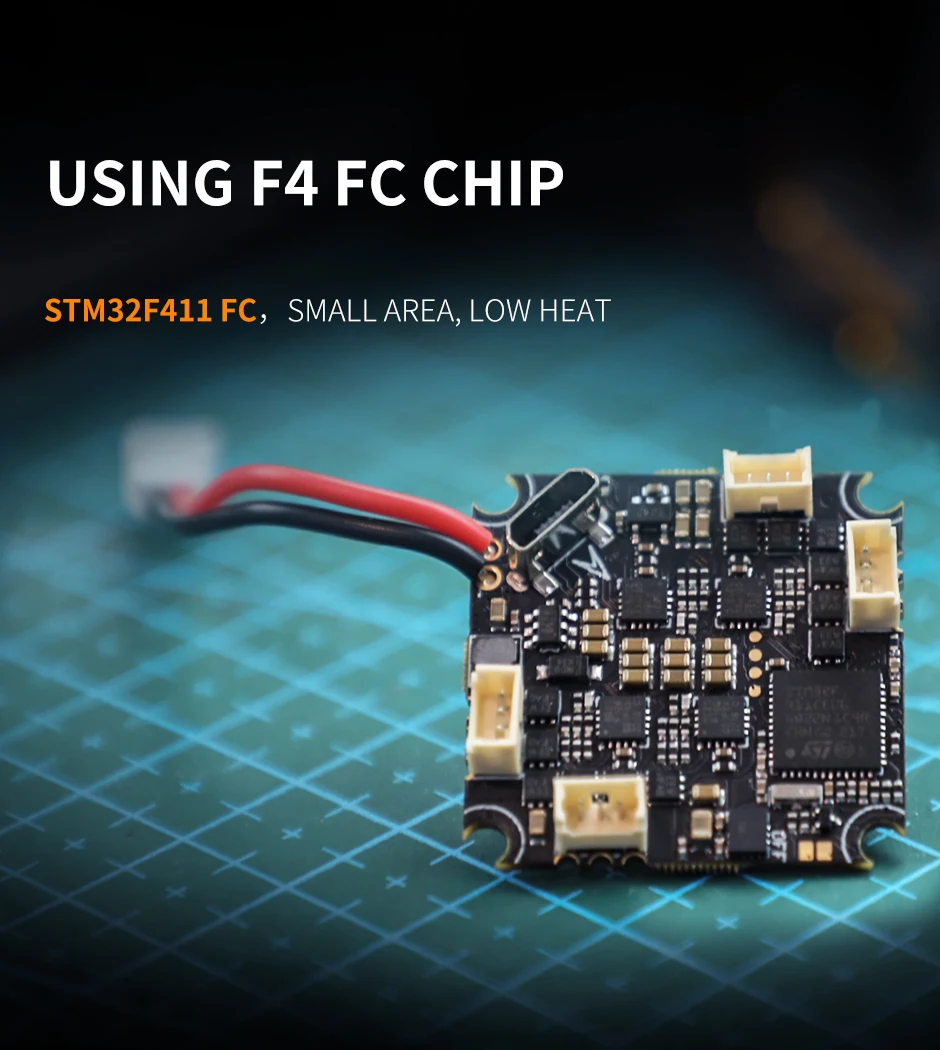

• MCU: STM32F411
• ESC: 6A Continuous (Peak 7A)
• Input Voltage: 1S LiPo only (2.9V-4.35V)
• Receiver: Integrated SPI ELRS (2.4GHz)
• VTX: Integrated 50mW Analog VTX
• Mounting: 25.5 x 25.5mm (Whoop Pattern)

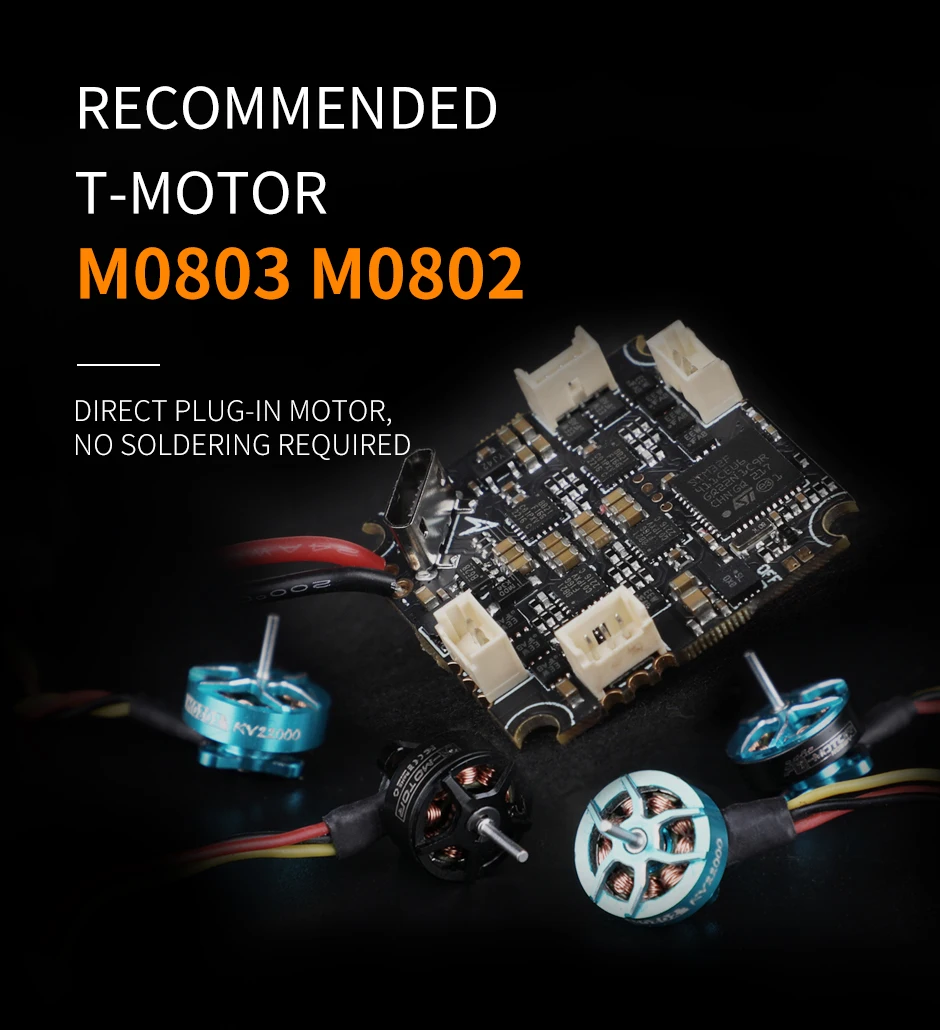

• Motor Plugs: Pre-soldered JST-1.25 sockets (Plug & Play)

Perfect for: Mobula6 custom builds, Moblite7, and other 1S Toothpick frames
