Description

The Ultimate Brain for Your Digital Build.

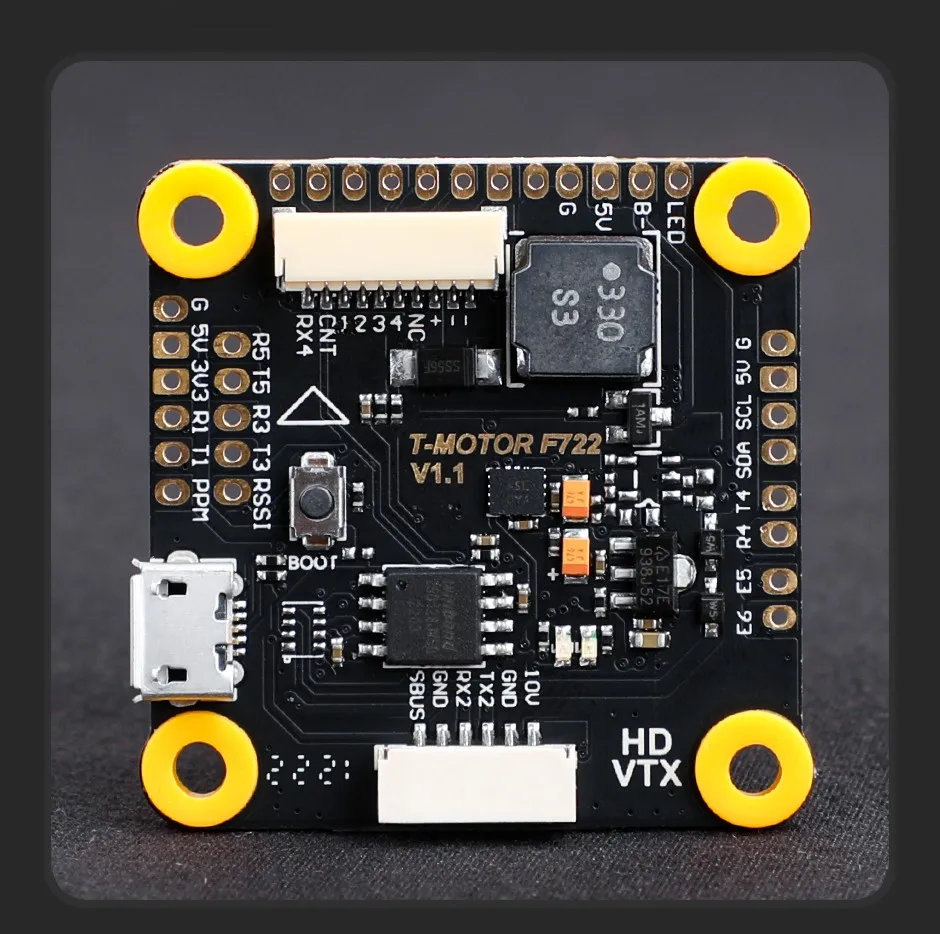

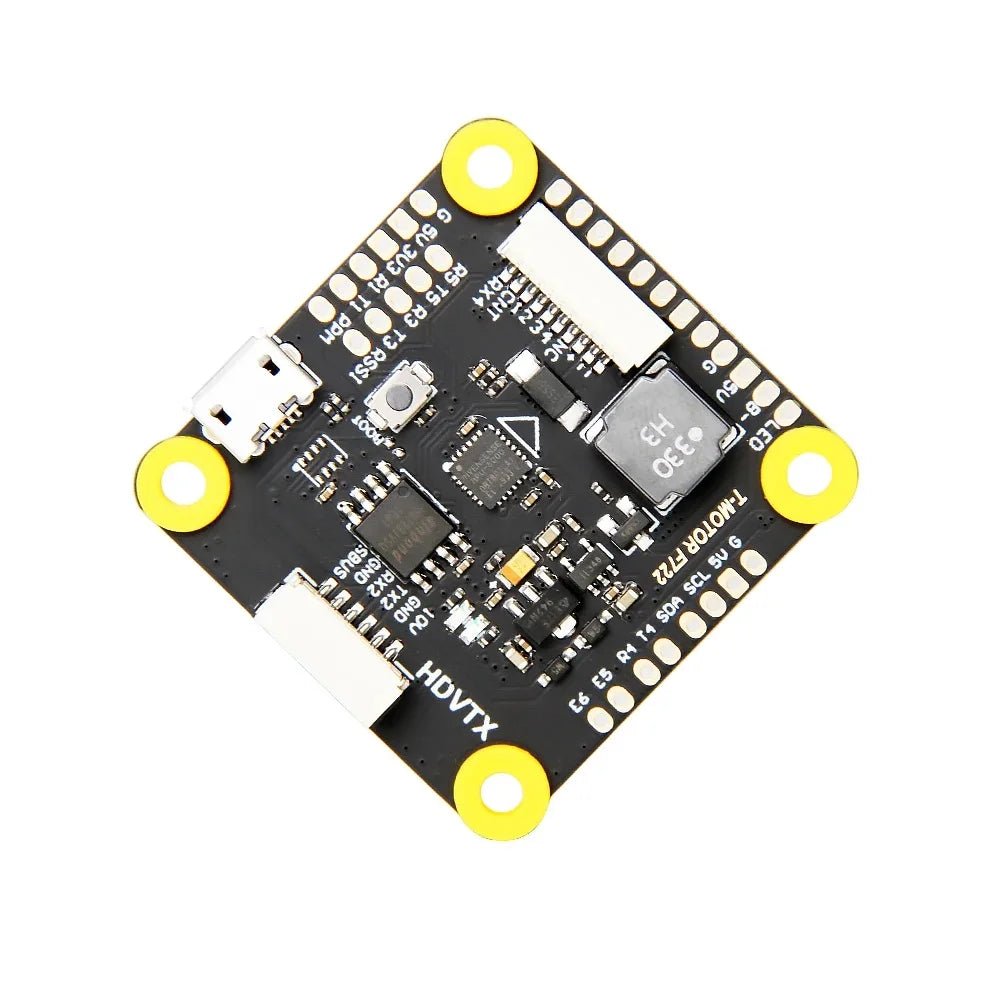

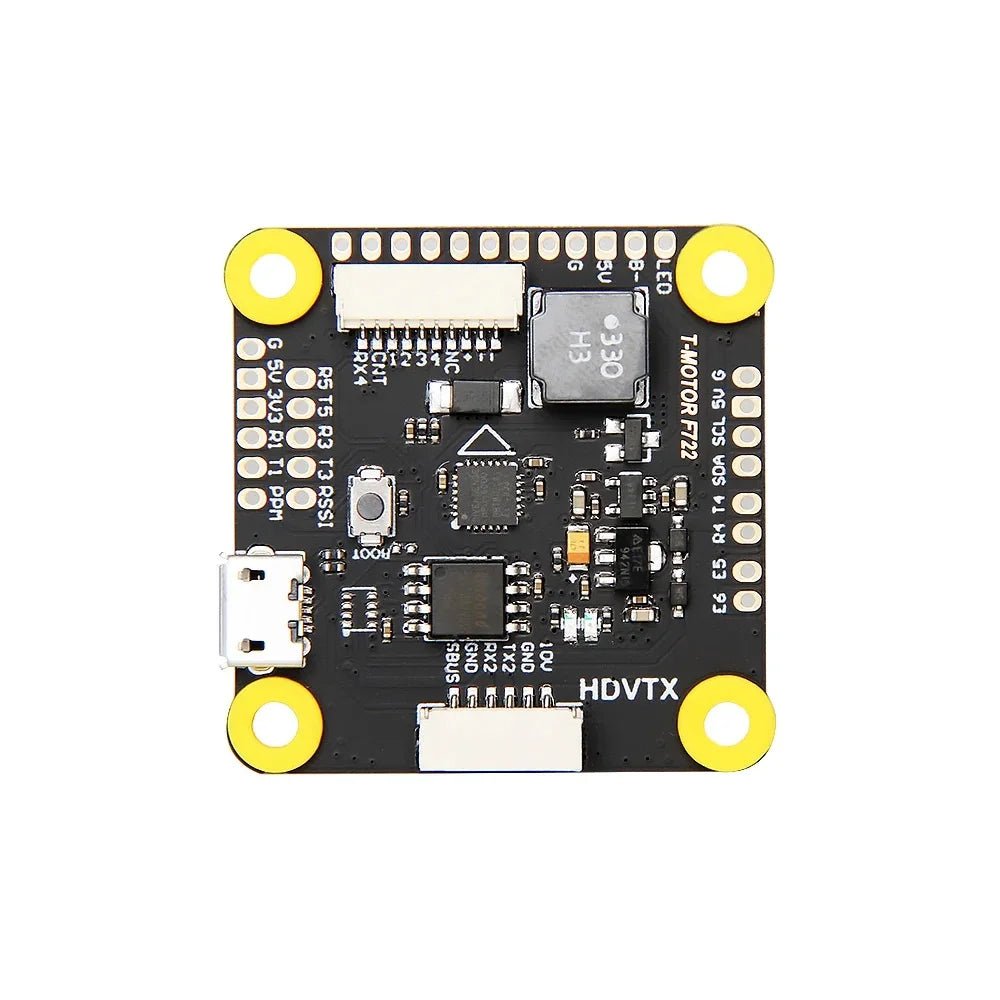

Stop struggling with messy wiring. The T-Motor F7 HD Flight Controller is specifically engineered to seamlessly integrate with the DJI Digital FPV system. Featuring a dedicated 6-pin port, you can connect your DJI O3 Air Unit or Caddx Vista directly without soldering a single wire for the video feed. Paired with T-Motor's industrial-grade components, this FC delivers the locked-in feel that professional pilots demand.

Why Choose T-Motor F7 HD?

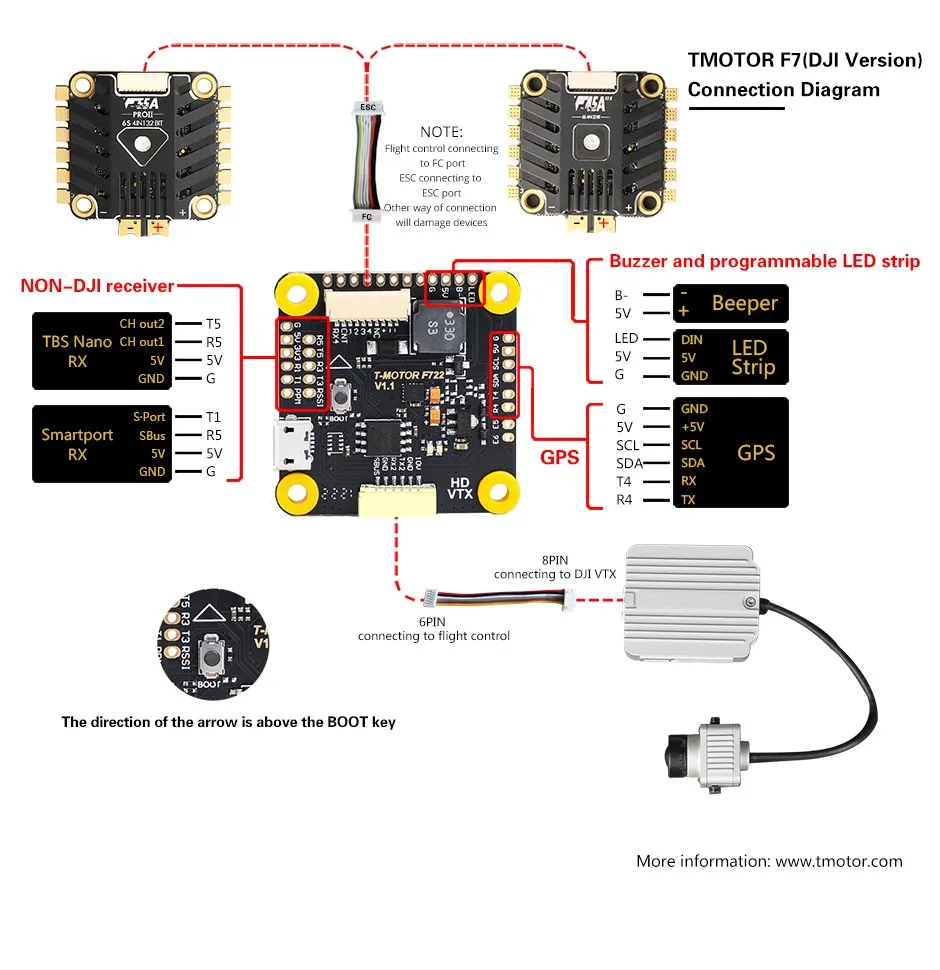

• Seamless HD Integration: Features a direct "Plug & Play" port for DJI Air Unit and Vista/Link systems.

• High-Speed Processing: Powered by the STM32F722 MCU for ultra-low latency and faster loop times compared to F4 boards.

• Stable Power: Dual BECs (5V/3A and 10V/2A) ensure your HD VTX and peripherals get clean, consistent power.

• Clean Layout: Logical pad placement makes soldering motors and receiver wires a breeze.

• Pro-Level Filtering: Optimized circuit design to reduce electrical noise, giving you smoother flight footage.

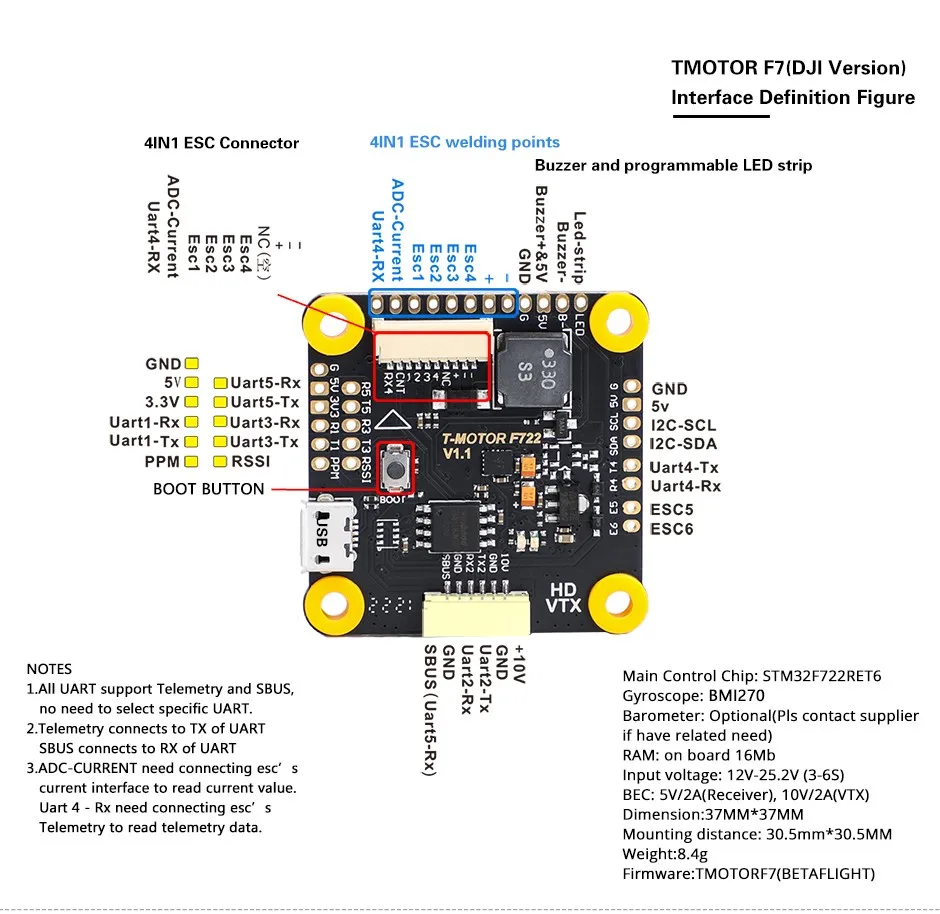

Technical Specifications:

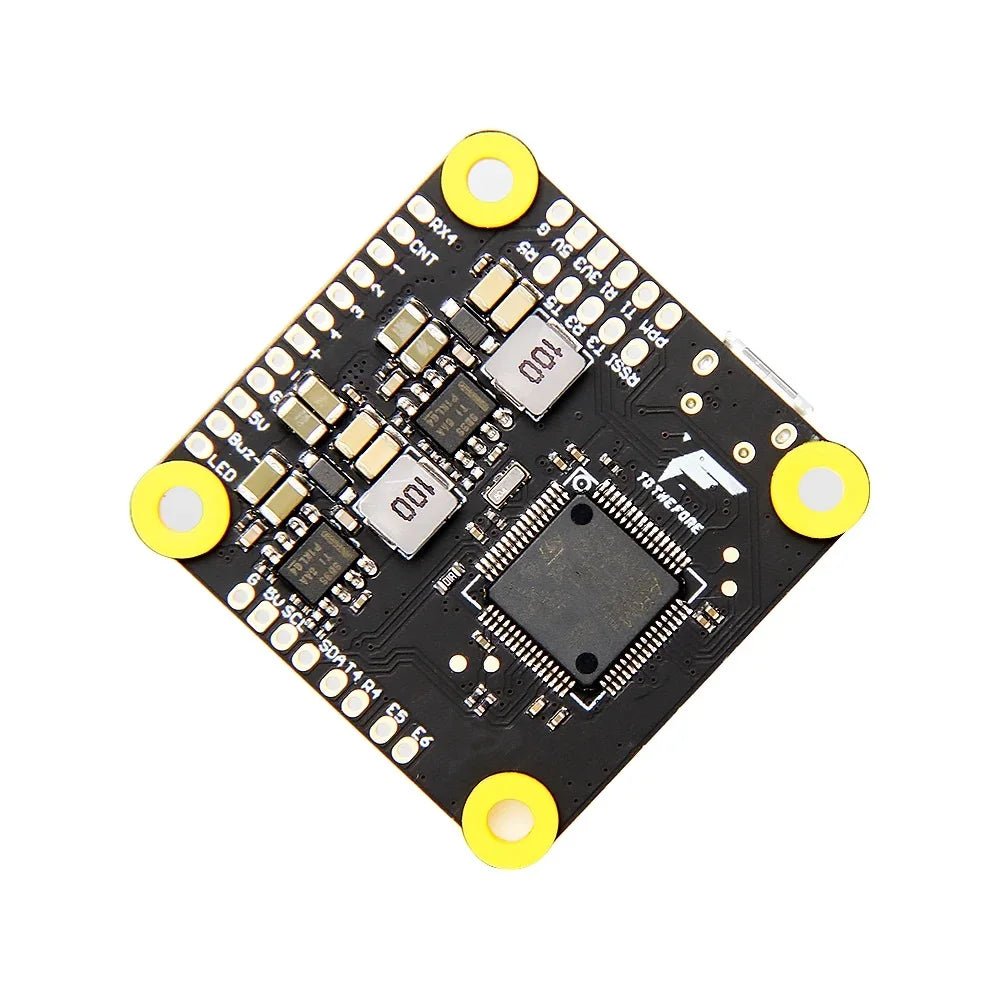

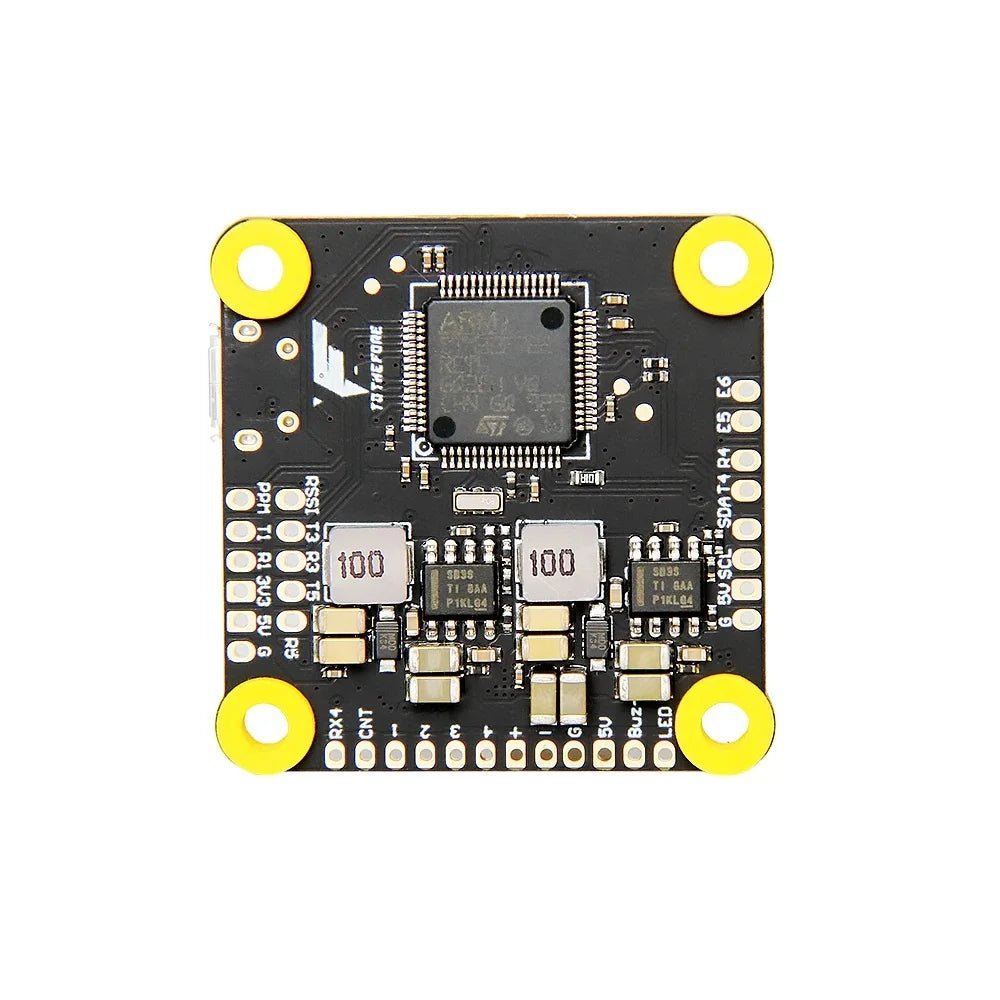

• MCU: STM32F722RET6

• IMU (Gyro): MPU6000 / BMI270 (High Performance)

• Mounting Pattern: 30.5 x 30.5mm (M3)

• Input Voltage: 3S - 6S LiPo

• BEC Output: 5V/3A, 10V/2A (For VTX)

• Blackbox: 16MB Onboard Flash

• Weight: 8.4g

What's in the Box:

• 1x T-Motor F7 HD Flight Controller

• 1x DJI Air Unit Cable

• 1x FC to ESC Cable

• 1x Set of Vibration Dampers
