SpeedyBee Mario 5 DC 04 Pro Frame

Name: SpeedyBee Mario 5 DC 04 Pro Frame
Brand: SpeedyBee
Price: 87.99 USD
Availability: OutOfStock
Rating: 4.86 (7 reviews)

$87.99 USD

~~$98.99 USD~~ $87.99 USD

Sale Sold out

Shipping calculated at checkout.

"Shipping & Returns"

"Free Shipping to USA (8-15 days)"

" Order Tracking Info "

Stay Updated Every Step of the Way.

Once your order is processed (usually within 1-3 business days), you will automatically receive a specific Tracking Number via email.

You can use this number to track your package directly on our website's "Track Your Order" page to see exactly where your items are in real-time.

Note: Sometimes it takes 24-48 hours for the carrier to update the tracking status after the label is created.

''🛡️30-Day Returns''

" 🔒 Secure Pay "

" 👨‍✈️ 24/7 Expert Pilot Support "

View full details

Description

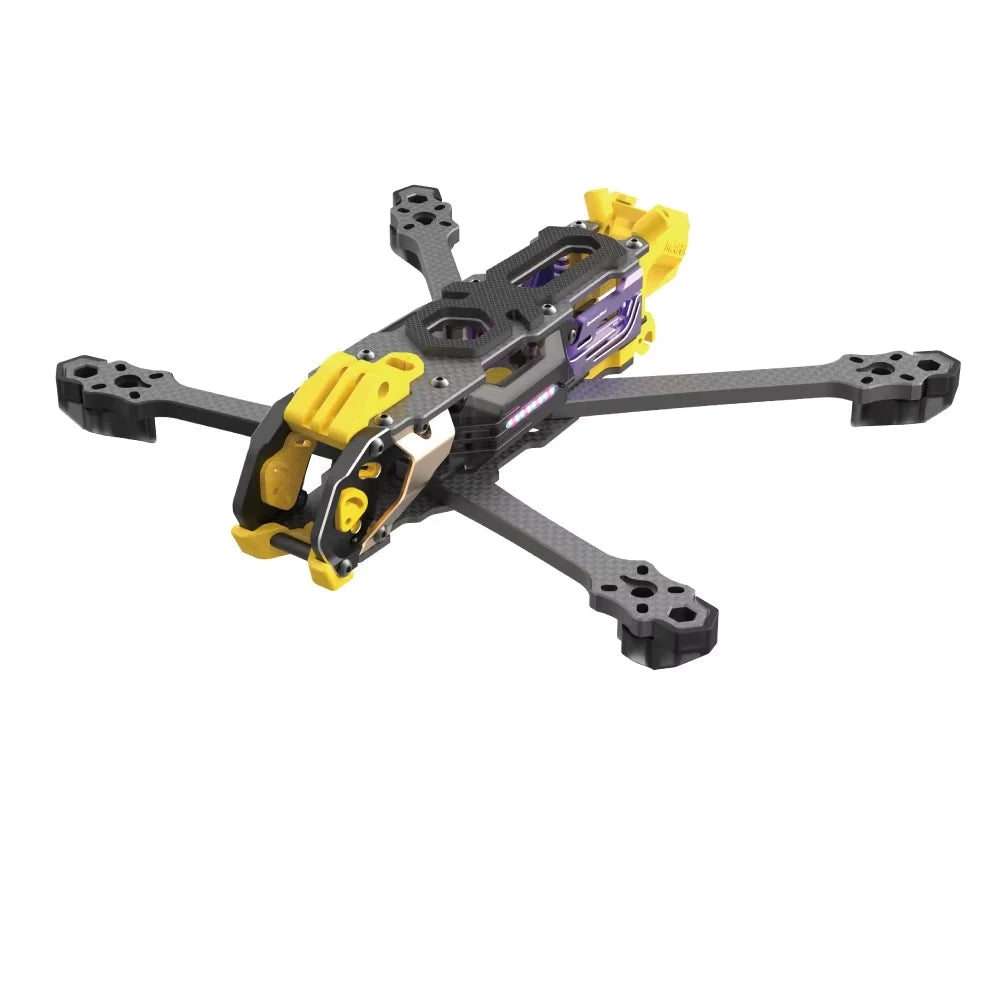

The Mario 5 Advanced is the "Pro" tier of the Mario series, designed for pilots who want a ready-to-fly experience right out of the box. Unlike the Lite version, this Advanced kit includes a comprehensive set of high-quality TPU parts, protecting your arm ends, GoPro mount, and antenna systems. Built with premium T700 carbon fiber and aviation-grade aluminum, the Mario 5 Advanced offers superior rigidity and crash resistance. It features an innovative "quick-release" arm mechanism for fast field repairs.

Specifications

Model	SpeedyBee Mario 5 Frame
Mario 5 DC Wheelbase	227mm
Mario 5 DC Weight	129 ±5g (3D Printed Parts Excluded)
Mario 5 DC Weight	170 ±5g (3D Printed Parts and Injection)
Mario 5 XH Wheelbase	226mm
Mario 5 XH Weight	126 ±5g (3D Printed Parts Excluded)
Mario 5 XH Weight	167±5g (3D Printed Parts and Injection)
Top Plate Thickness	2.5mm(T300 3K)
Middle Plate Thickness	2.0mm(T300 3K)
Bottom Plate Thickness	2.5mm(T300 3K)
Arm Thickness	6mm(T300 3K)
Camera Mounting Screw	7mm
3D Printed Parts	Yellow TPU
Battery Anti-Slip Pad	Silicone 3mm
Motor Spring Hole Position	Φ8mm
Compatible Propeller Size	Max 5.1 Inch
Motor Mounting Hole Distance	16-19mm
FC Mounting Hole	30.5x30.5(M3)
VTX Mounting Hole	20x20(M2) / 25.5x25.5(M2)
Head Material	Aviation Aluminum Alloy
Aluminum Column Material	7075 D523mm/D4622mm
Internal Mounting Height	23-31mm
Receiver Installation Space	25136mm
Suitable Capacitor Size	Φ10mm*20mm
GPS Installation Size	18187
Camera Compatibility	19mm/20
