Description

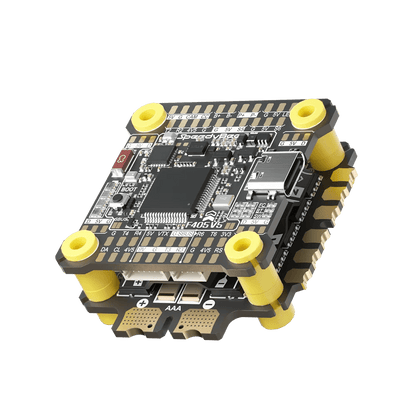

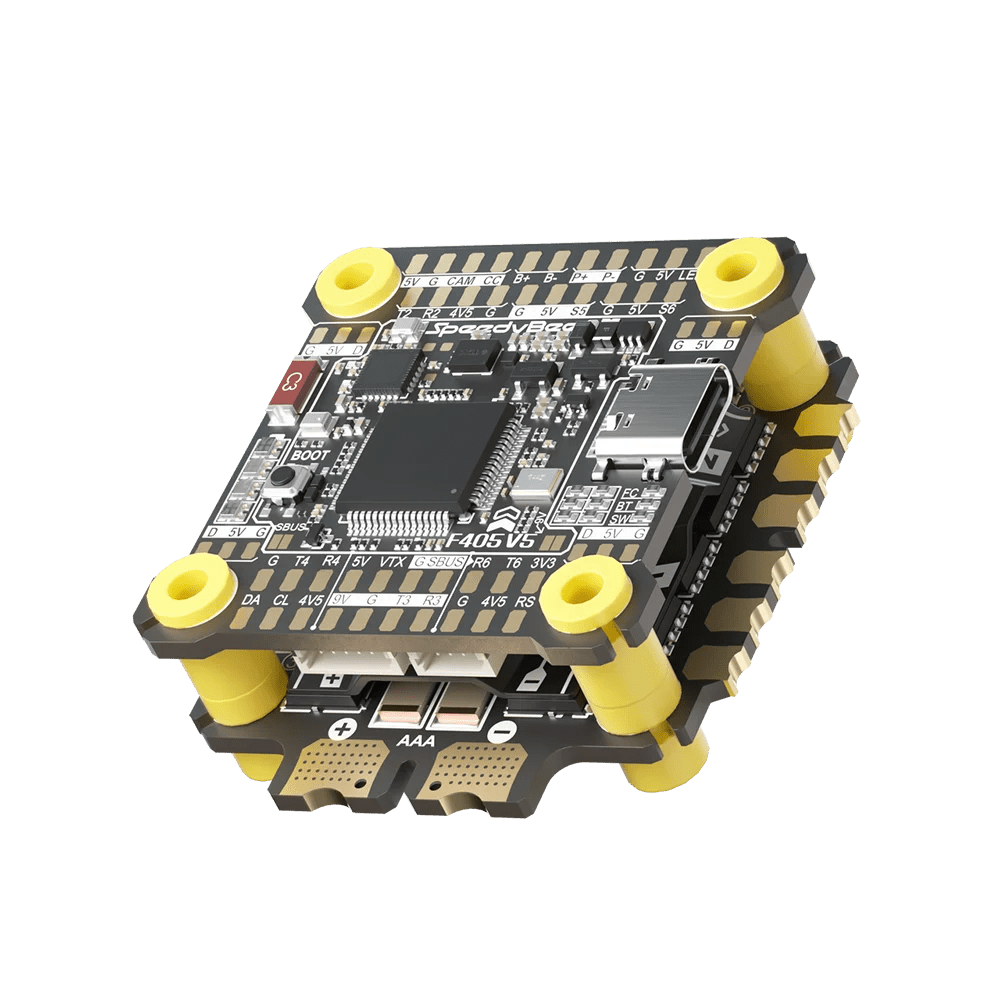

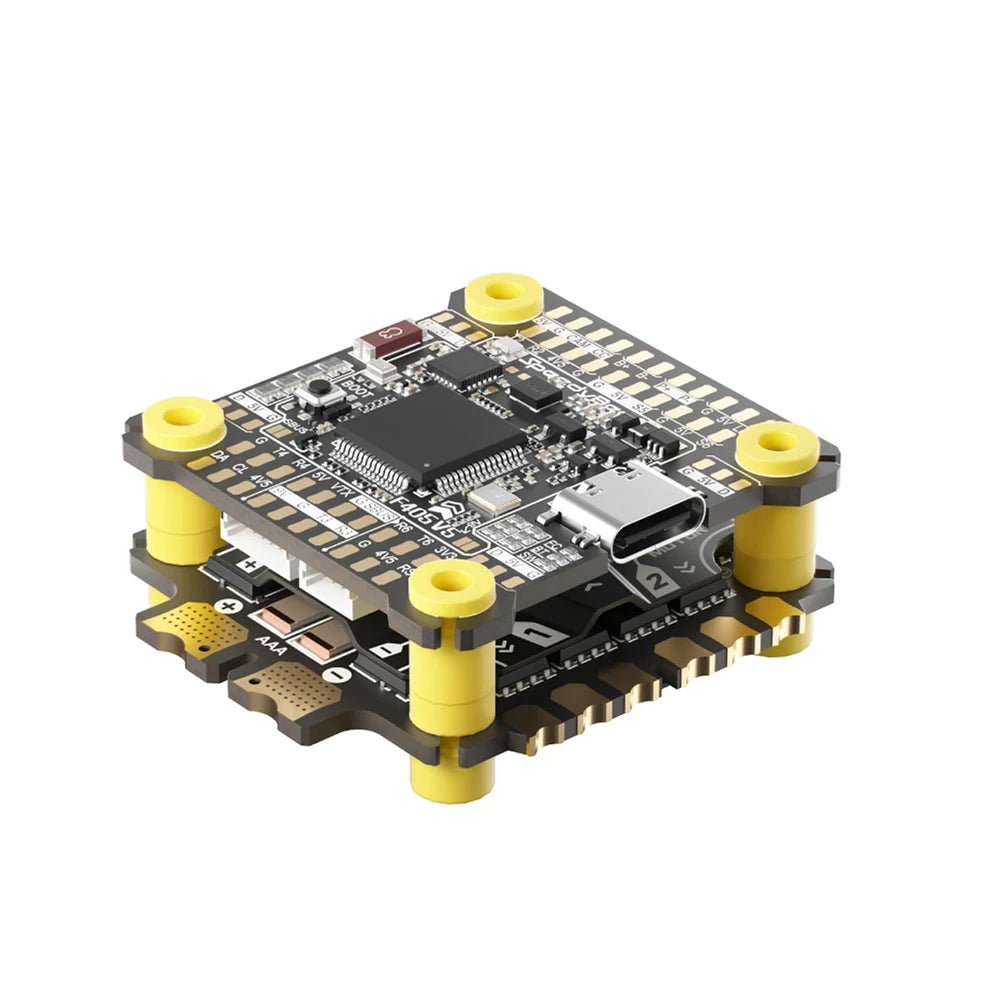

The New Standard of Performance: SpeedyBee F405 V5.
The evolution of the world's most popular FPV stack is here. The SpeedyBee F405 V5 Stack takes everything you loved about the V4 and pushes it further with a high-speed 32-bit 55A ESC and the upgraded F405 V5 Flight Controller. Engineered for 5-inch to 7-inch freestyle and racing drones, this stack offers ultimate stability and the convenience of wireless mobile tuning.
What’s New & Improved in V5:
OX32 32-bit ESC: Experience smoother motor response, higher efficiency, and better heat management with the 32-bit architecture.
* Enhanced Wireless App Control: Configure Betaflight, ESC settings, and even update firmware wirelessly via the SpeedyBee App.

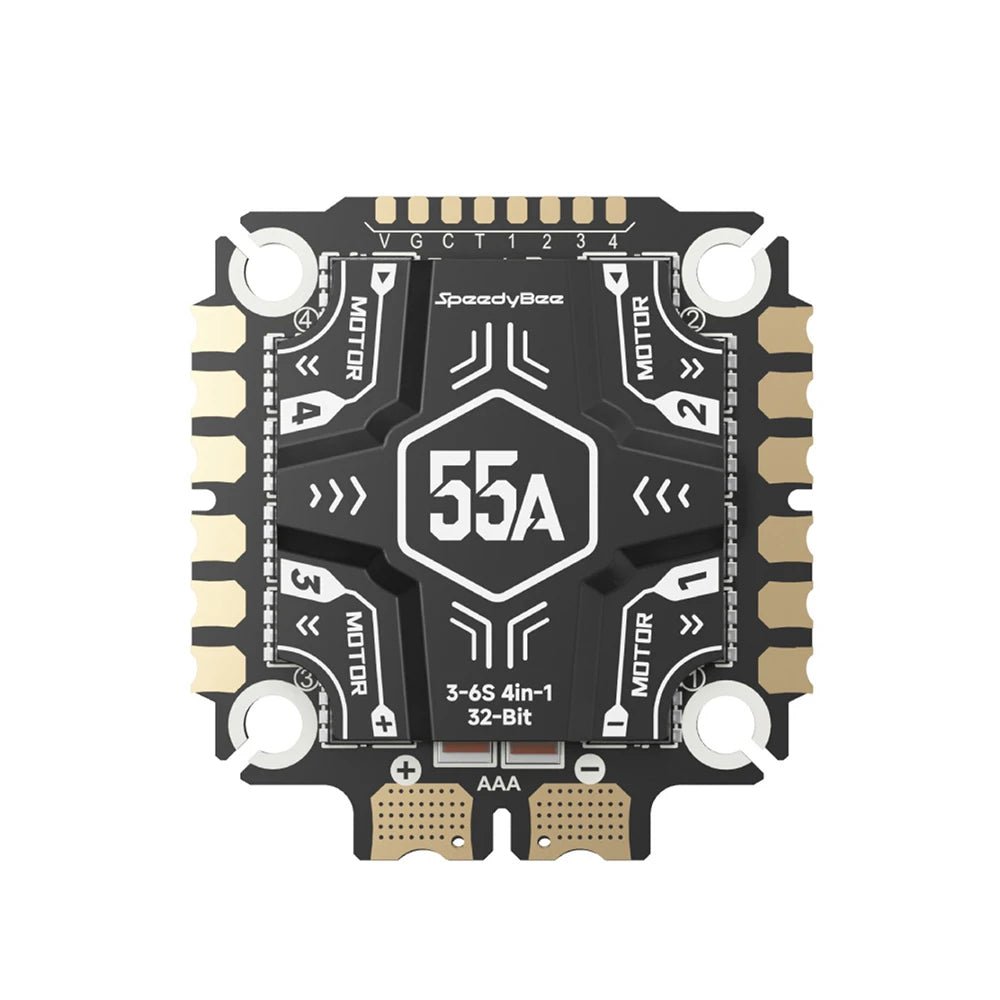

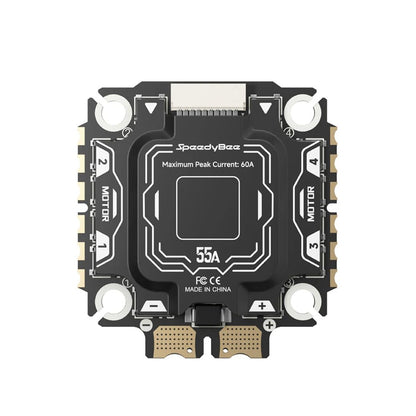

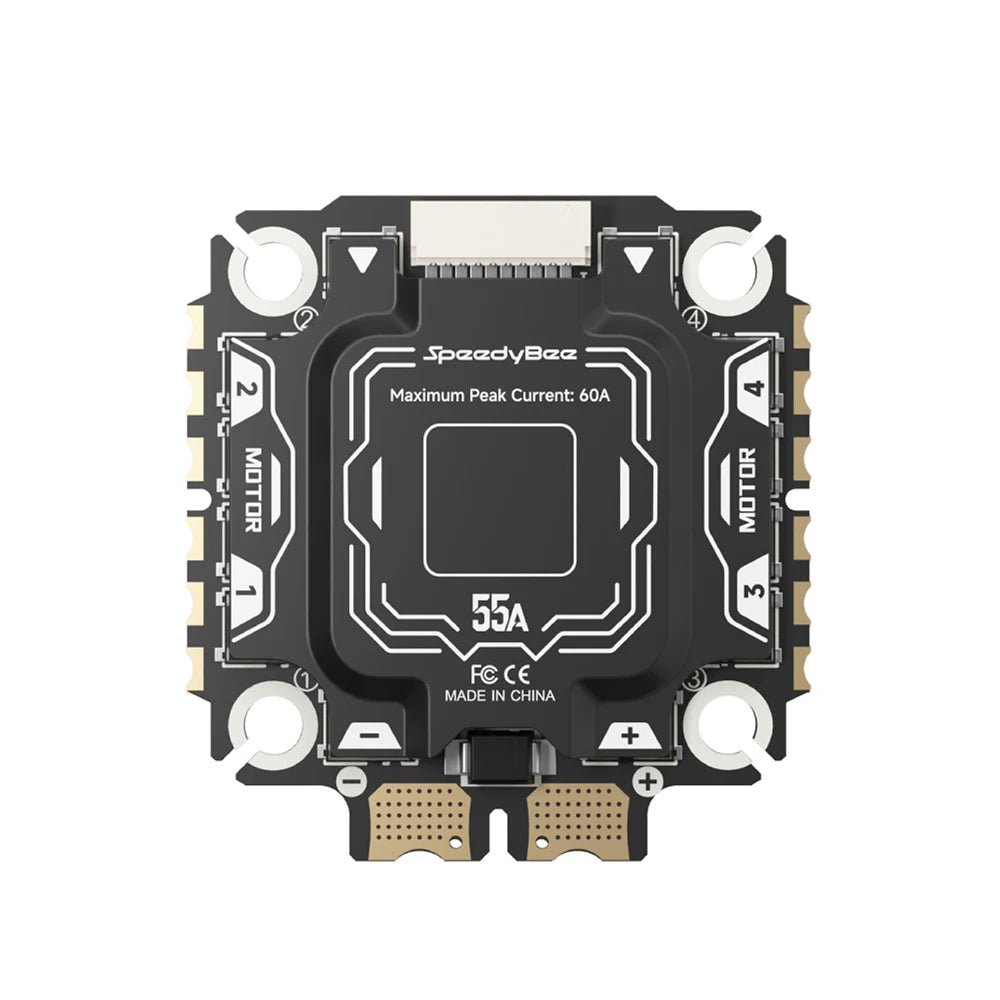

* Heavy-Duty 55A ESC: Solid power delivery for aggressive flying with up to 6S LiPo support.
ICM42688P Gyro: The gold standard for low-noise gyro performance, ensuring your quad feels like it's on rails.
Built-in Battery Indicator: 4-level LED real-time battery status check directly on the board.
Plug & Play for DJI: Direct 6-pin connector for DJI O3, Vista, and Walksnail systems.
Technical Specifications:
Mounting: 30.5 x 30.5mm (4mm hole diameter)

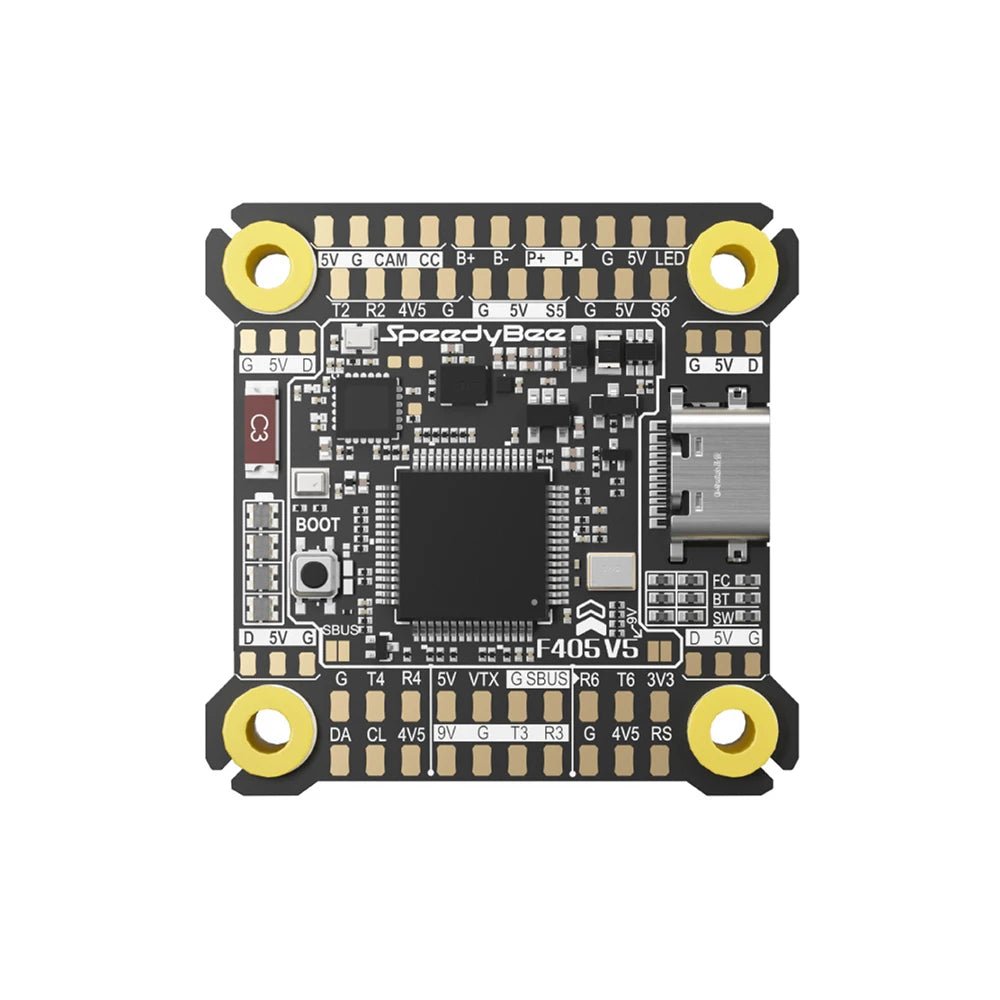

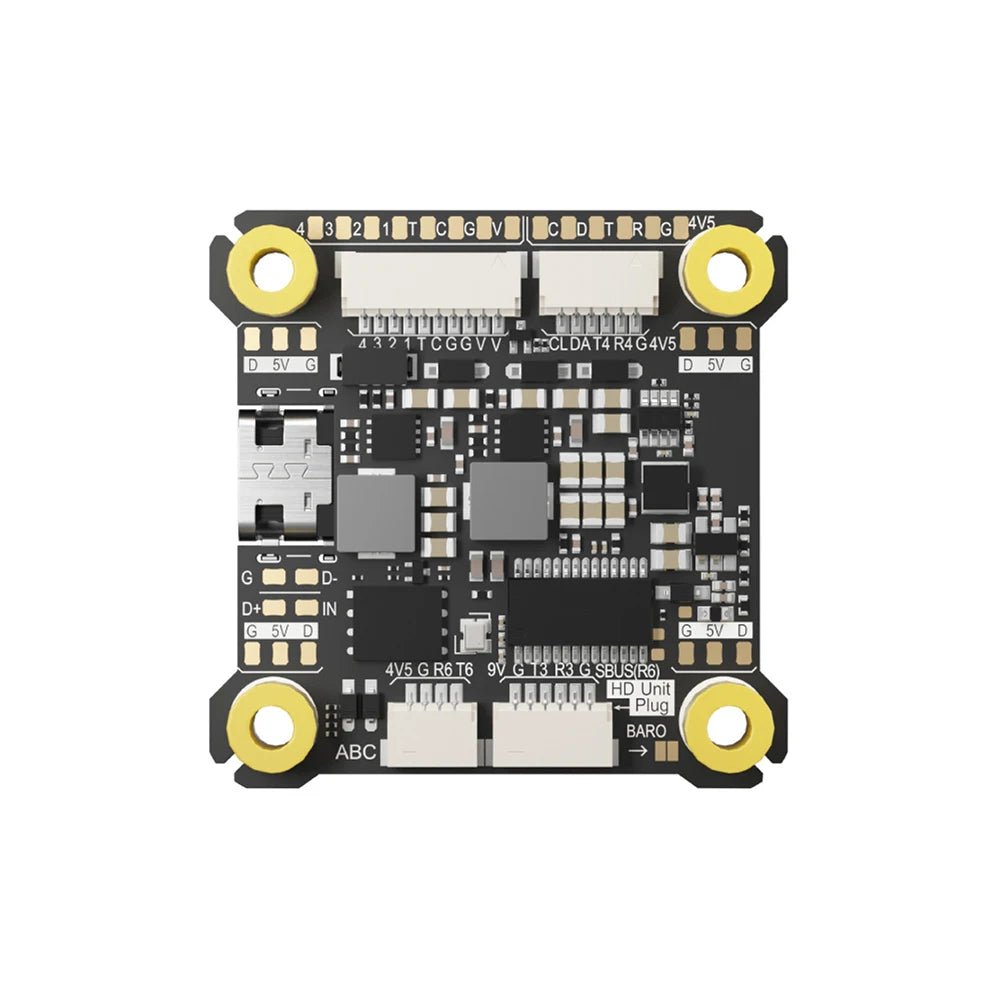

FC MCU: STM32F405
ESC Firmware: OX32 (32-bit)
Continuous Current: 55A * 4 (Burst 70A)
* Input Voltage: 3S - 6S LiPo
Blackbox: 8MB Onboard Flash
Package Includes:
1x SpeedyBee F405 V5 Flight Controller
1x SpeedyBee 55A 32-bit 4-in-1 ESC
1x 35V 1000uF Low ESR Capacitor
1x XT60 Power Cable (70mm)
Full Silicone Grommet & Hardware Set
