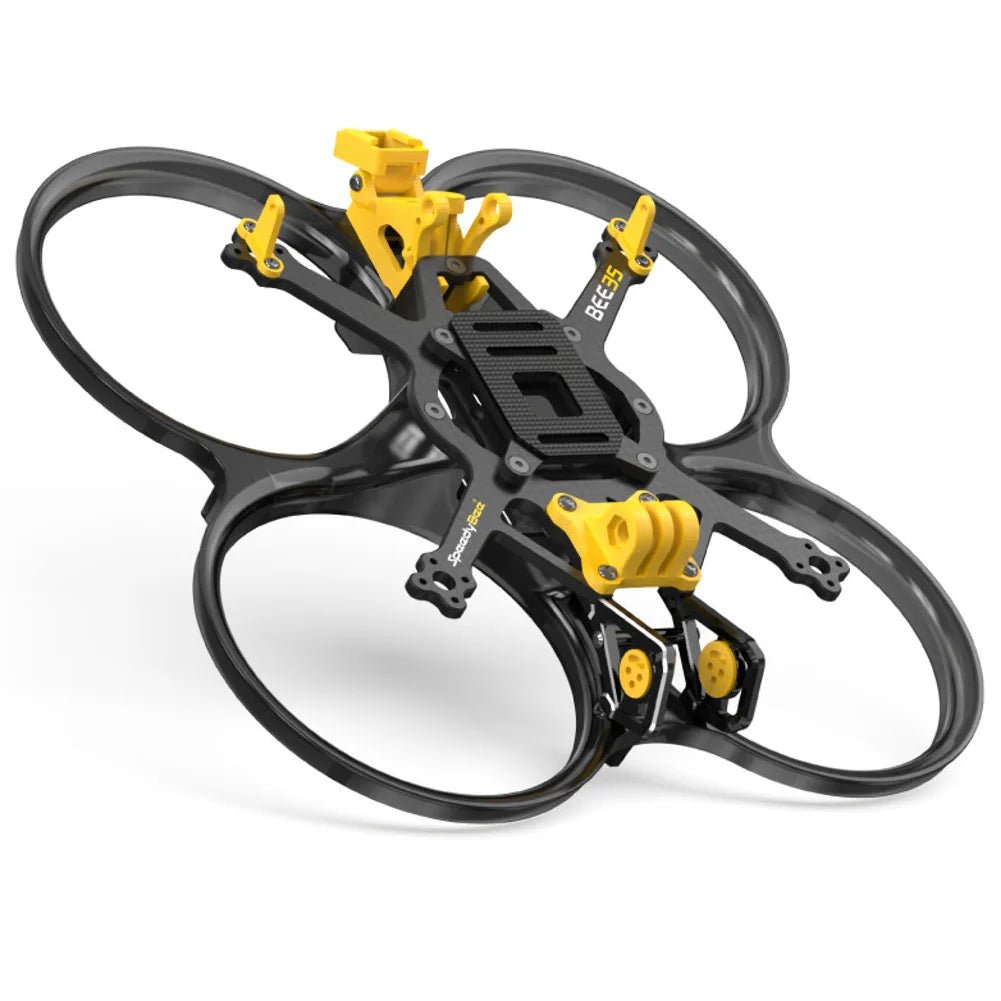

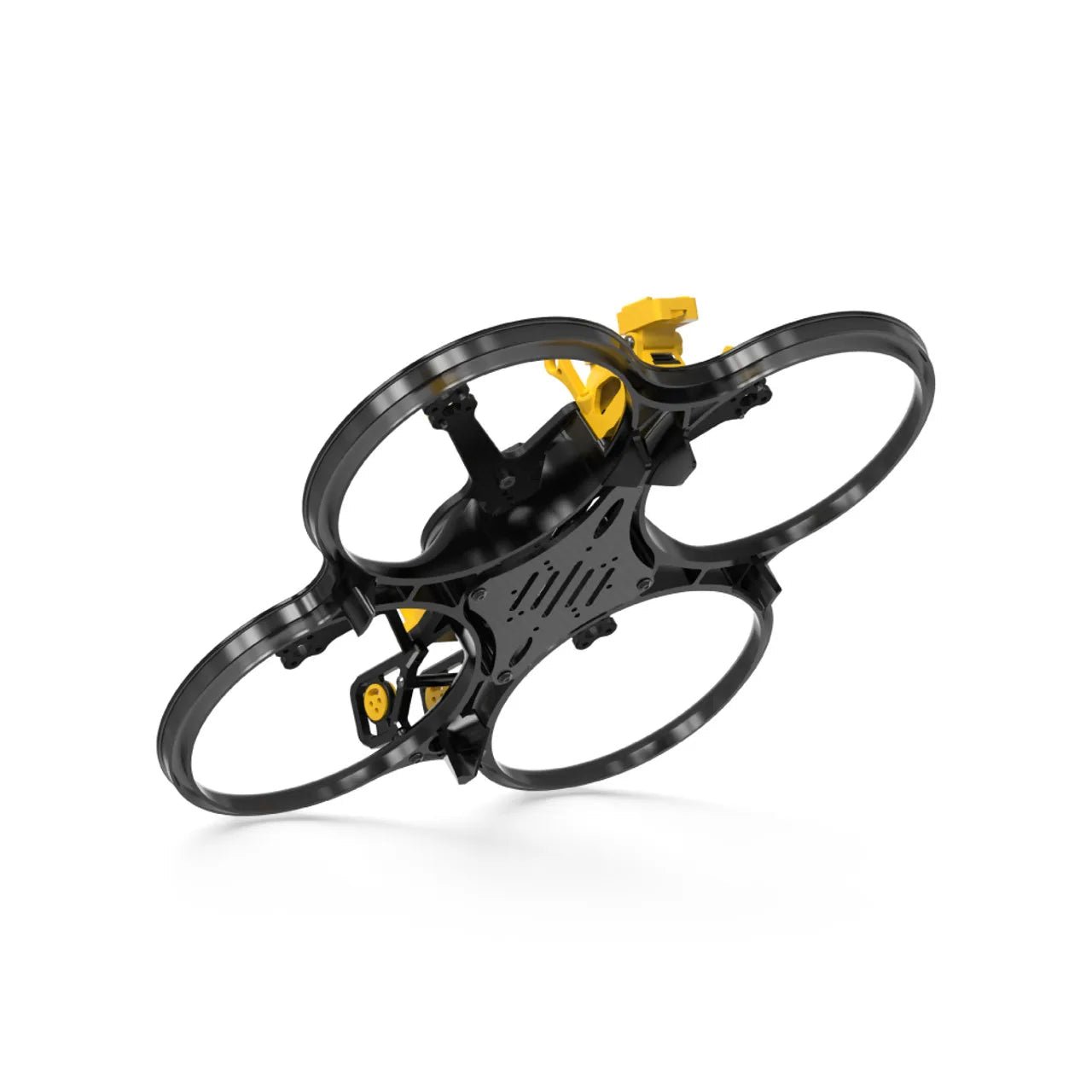

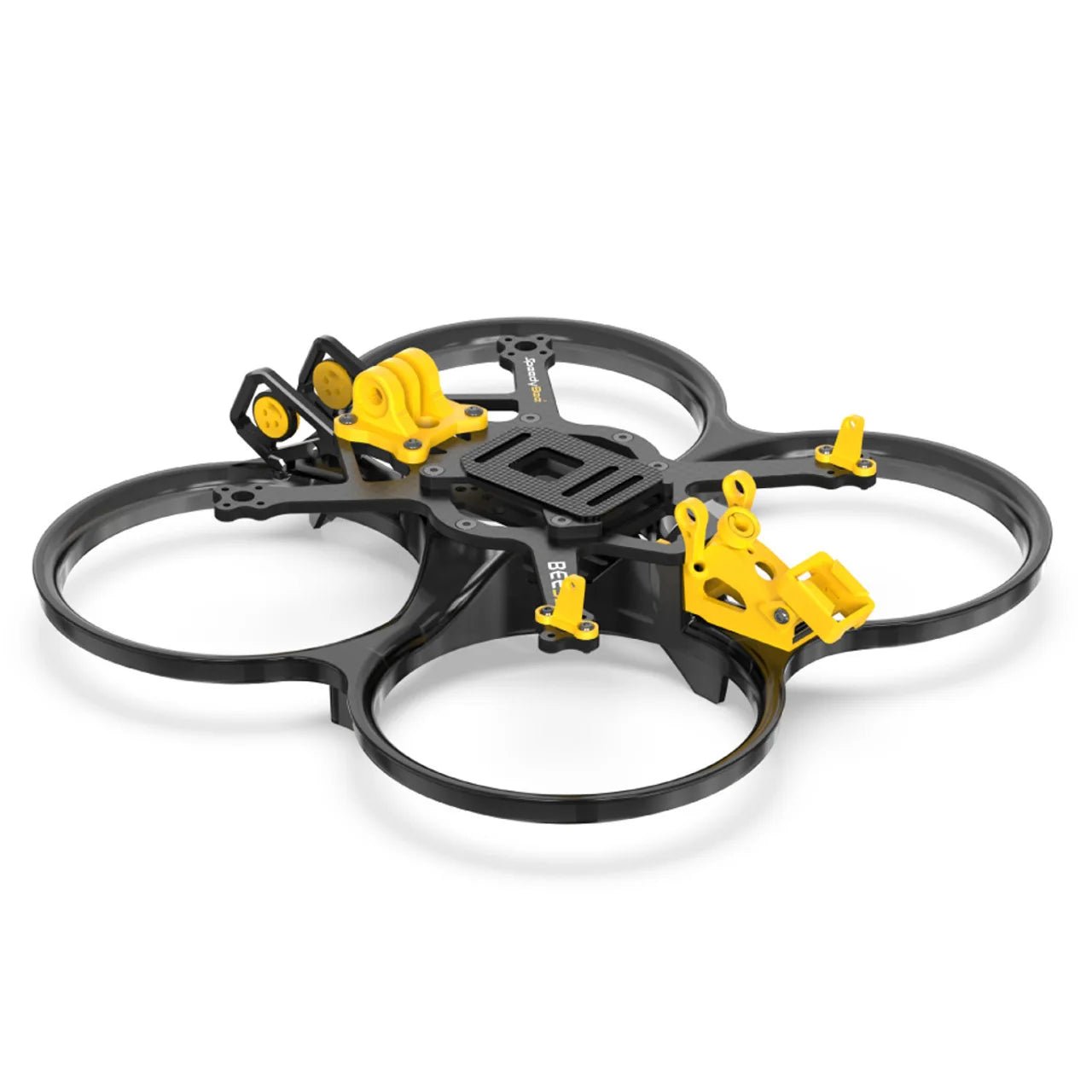

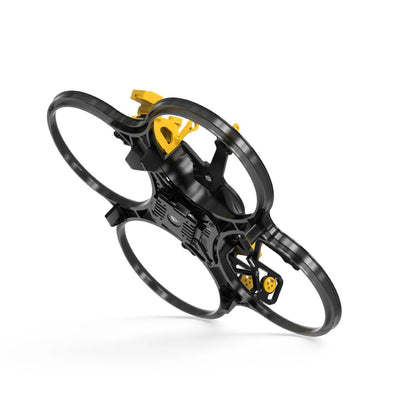

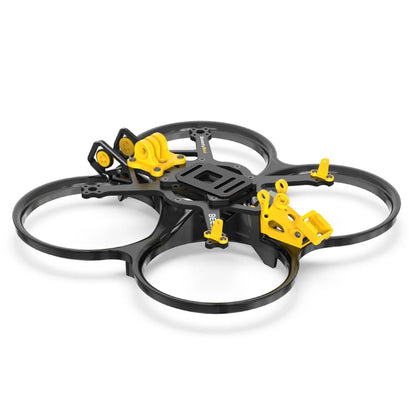

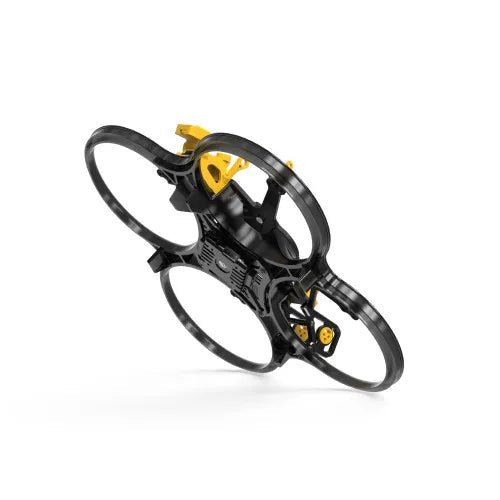

SpeedyBee Bee35 Cinewhoop Frame

Name: SpeedyBee Bee35 Cinewhoop Frame
Brand: SpeedyBee
Price: 65.99 USD
Availability: OutOfStock

$65.99 USD

~~$76.99 USD~~ $65.99 USD

Sale Sold out

Shipping calculated at checkout.

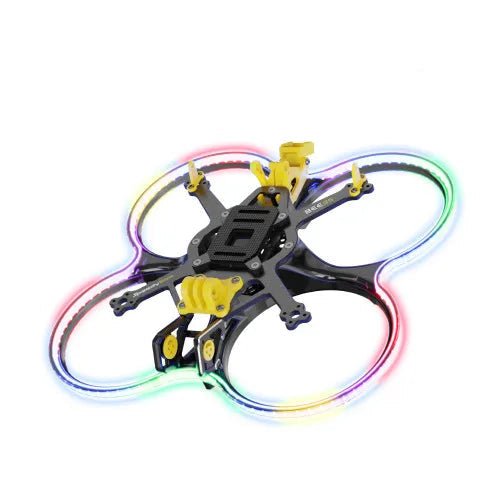

Type Bee35 Bee35 Pro Bee35 Pro LED

"Shipping & Returns"

"Free Shipping to USA (8-15 days)"

" Order Tracking Info "

Stay Updated Every Step of the Way.

Once your order is processed (usually within 1-3 business days), you will automatically receive a specific Tracking Number via email.

You can use this number to track your package directly on our website's "Track Your Order" page to see exactly where your items are in real-time.

Note: Sometimes it takes 24-48 hours for the carrier to update the tracking status after the label is created.

''🛡️30-Day Returns''

" 🔒 Secure Pay "

" 👨‍✈️ 24/7 Expert Pilot Support "

View full details

Description

The Bee35 is designed to take a beating. With its tough, injection-molded prop guards and performance-focused layout, this 3.5-inch frame is perfect for professional cinematic work. It supports O3 Air Unit installation without modification and provides excellent cooling for high-power VTXs. The bottom plate is reinforced to handle hard landings.

Specifications

Product Name	SpeedyBee Bee35 Frame
Wheelbase	153mm
Top Plate Thickness	3.5mm
Bottom Plate Thickness	2mm
Camera Mounting Distance	19/20mm
ESC/Motor Mounting Height	24mm
Flight Stack Mounting Holes	2020/25.525.5/30.5*30.5mm
Video Transmitter Mounting Holes	2020/25.525.5
Propeller Size	90mm
Motor Mounting Holes	12*12mm
Weight	138g

CNC Heat Sink	15g
Camera Gimbal	28g
Recommended Motor	1806/2004/2006
Recommended KV	4S/2500-3500KV,6S/1800-2300KV
Recommended Battery	900-1500mAh 4S/6S

Aerospace-grade Aluminum Front Plate

The aviation-grade aluminum headpiece provides excellent protection for the lens, and it is embedded with custom silicone damping material, resulting in effective anti-vibration performance for the lens. The GyroFlow effect is enhanced for better stability.

Open-source 3D printing schematics are available, enabling you to print them with different thicknesses to accommodate various lens installations.

100% efficient heat dissipation

We have found that the O3 video transmitter shuts down due to high CPU temperatures during prolonged high-temperature operation. To address this issue, we have specially designed a 7075-T aerospace-grade aluminum component for the O3 video transmitter, doubling its heat dissipation efficiency! Additionally, it features 20x20 mounting screw holes, making it compatible with Link, TX800, and other 20-hole video transmitters.

Note: The test data is conducted at an ambient temperature of 26 degrees Celsius. The actual performance may vary depending on the temperature of the usage environment.
