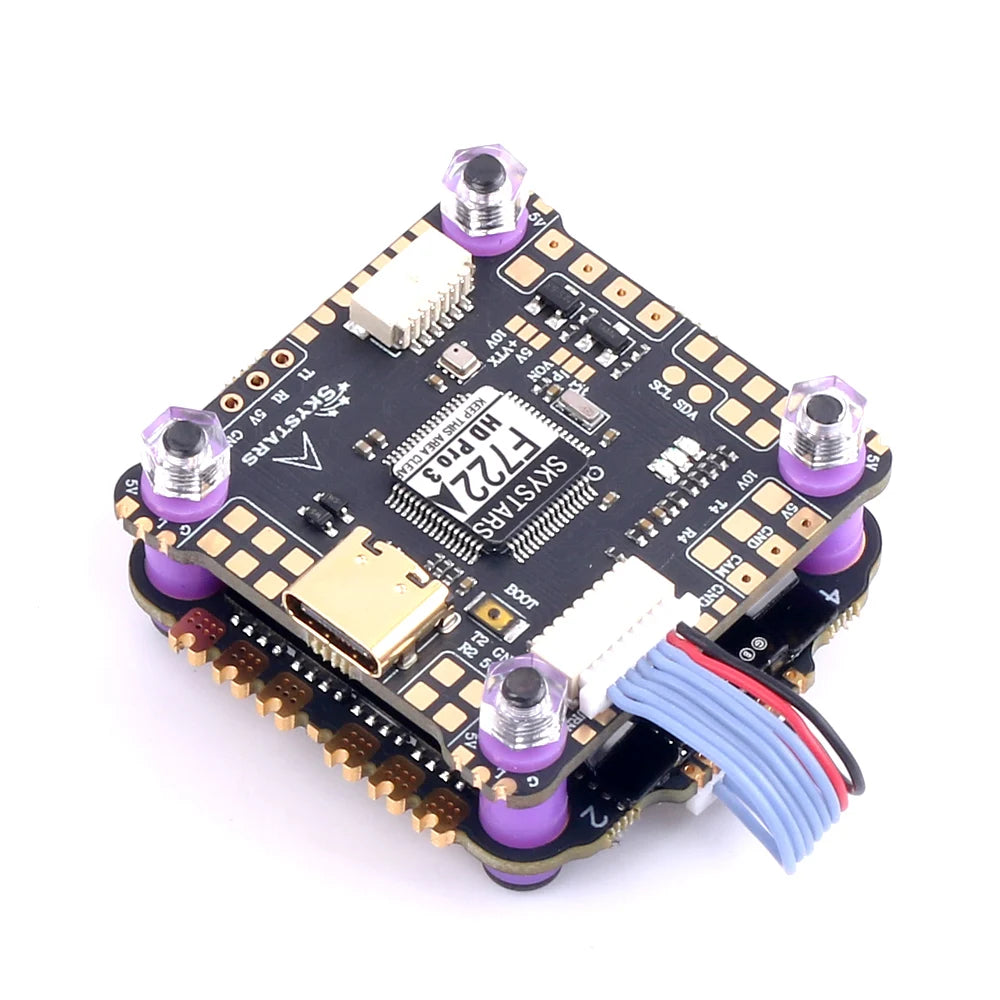

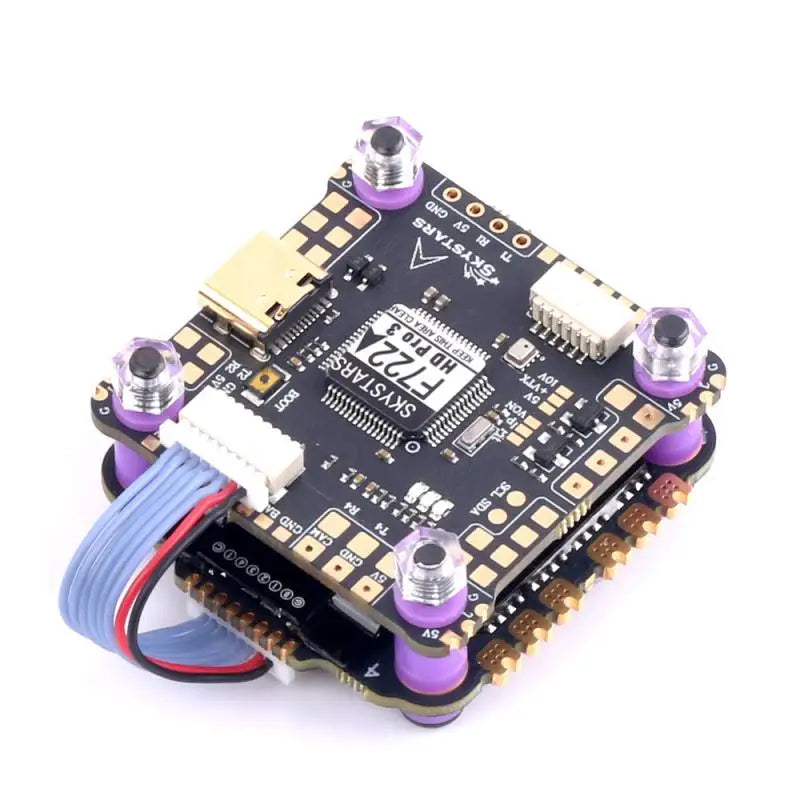

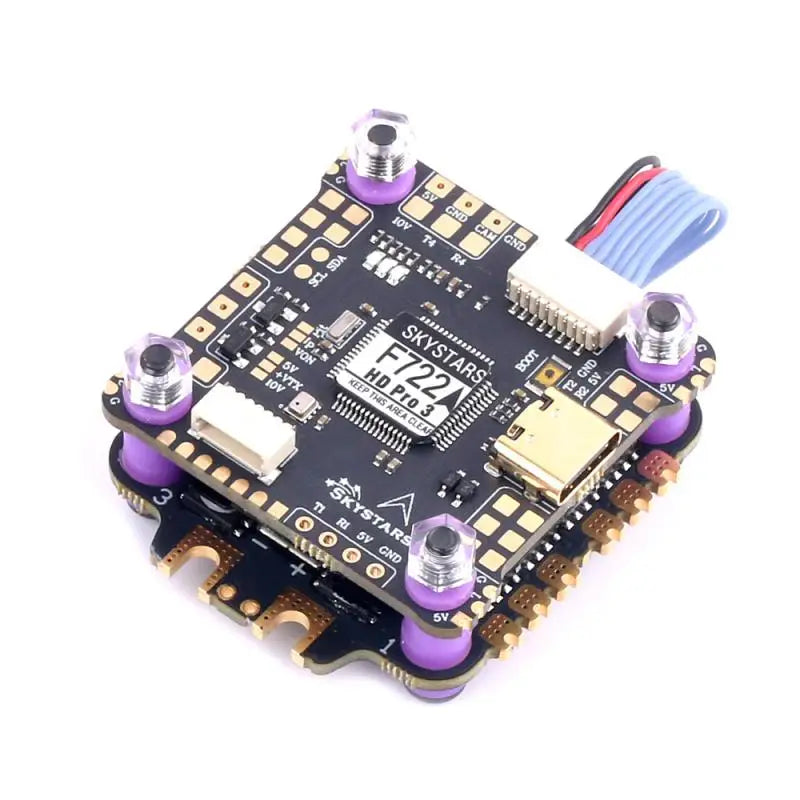

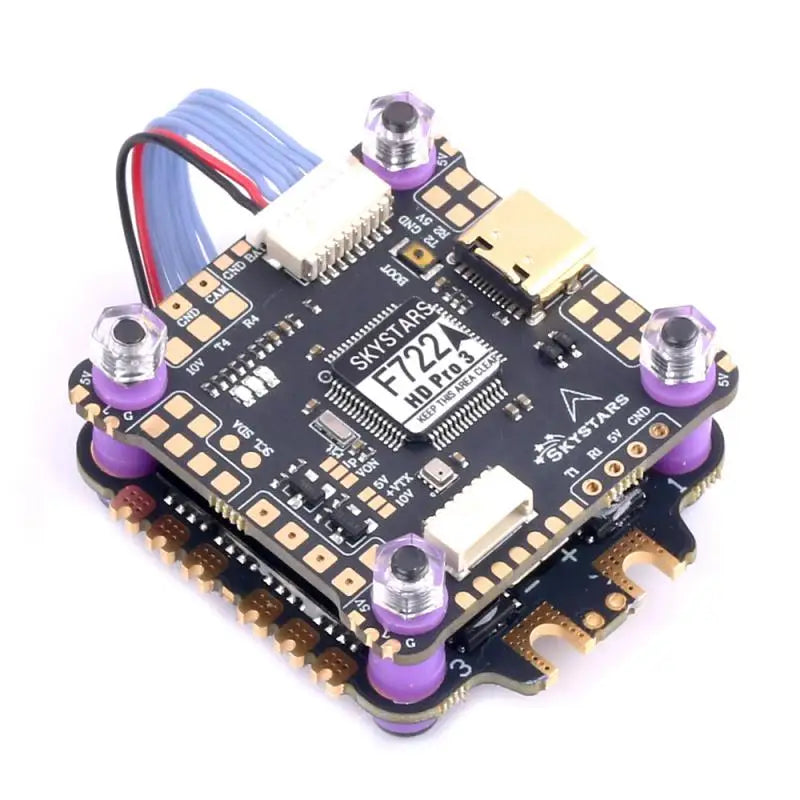

Skystars F722 HD Pro Stack - F7 FC (Dual Gyro) + KO45 45A ESC

Description

Double the Reliability.

The Skystars F722 HD Pro is built for pilots who demand safety. It features Dual Gyros – if one fails during a crash, the other takes over instantly. Plus, with built-in WiFi, you can tune your drone wirelessly in the field.

SKYSTARS F7HD Pro3 Flight controller and KO45A/60A Blheli-32 32bit 128K 4IN1 ESC fly tower stack

FC Specifications:

MCU: STM32F722RGT6 216MHz

Gyroscope: BMI270

Baro:Bmp280

OSD: Betaflight SPI OSD DJI HD OSD(UART6)

Black box: 16MB

6x Uarts: UART 1/2/3/4/5/6

4x PWM outputs

1x I2C

3x LEDs for FC STATUS (Blue, Green) and 3.3V indicator(Red)

USB Type-C(USB2.0)

1x JST-SH1.0_8pin connector (Gnd/Vbat/S1/S2/S3/S4/Rx3/Curr)

1x JST-SH1.0_6pin connector (R1/G/R6/T6/G/10V)

VTX 10V/Vbat filtered power ON/OFF switch

DJI FPV OSD is supported by any spare UART

LED: 4 LED independent pads, support WS2812 programming lamp output.

Receiver: Support Sbus, crsf, ibus, SBUS, XBUS, support 3.3v Spektrum satellite receiver, The default receiver input is UART1(You can solder ELRS RX on UART1), F7 has a built-in inverter, which can actually be installed in any spare UART.

Power:

Input voltage: 3-6S

BEC: 5V/10V 3A max dual-channel BEC supports stable power supply on the sky side of DJI

LDO 3.3V: Max.250mA

FC Firmware:

BetaFlight firmware: SKYSTARSF722Pro

INAV firmware:SKYSTARSF722HD

Mounting:

Installation size: 30.5mm × 30.5mm The installation hole is M4 and supports shock column installation

External size 39mm × 39mm

Flight control weight: 6.9g

Flight control onboard voltage sensor.

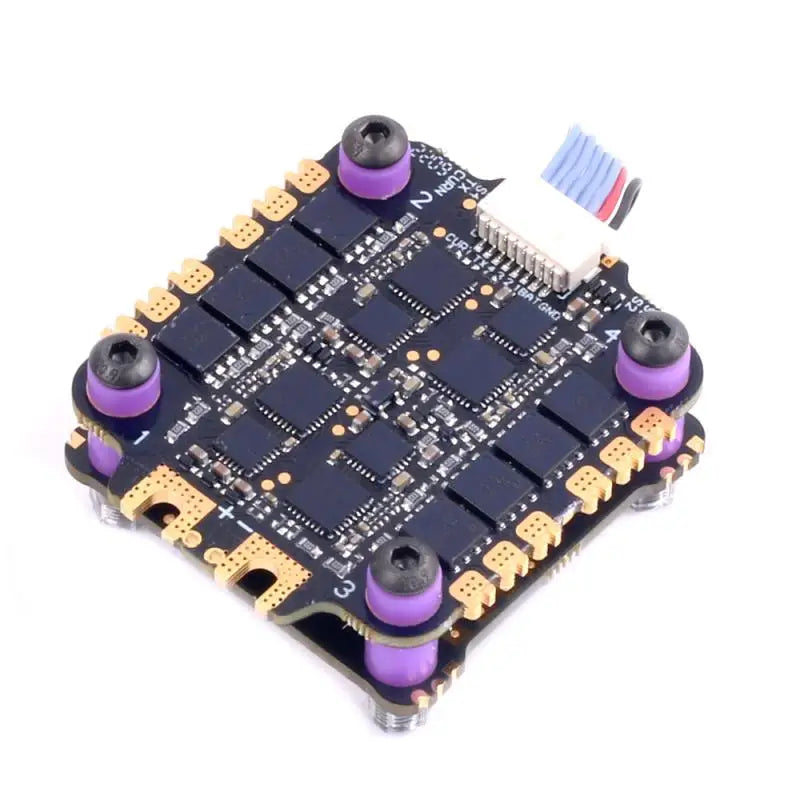

BL32-45A 60A 4IN1 3-6S ESC BLheli32 128K DShot1200 4-in-1 ESC:

Support 128K Dshot1200, Dshot600, Dshot300, Dshot150, Oneshot125, Multishot, PWM control signal

Power supply voltage: 3-6S (12-26V)

Continuous working current: 45A 60A

No built-in 5V BEC output

Firmware: BLHELI 32 ESC

Screw hole spacing: 30.5*30.5MM

Aperture: 4MM

Weight: 14.6g

– The ESC has an on-board filter capacitor that suppresses the back electromotive force, stabilizes the battery voltage, and protects the flight control ESC precision components.

– EMI Shell provides stronger anti-interference capability.

Note: There is no difference in appearance between the 45A and 60A ESCs, which can be distinguished from the MOS tube.

Including

1x F7HD Pro3 FC

1x KO45 or KO60 128K BL32 4IN1 ESC

8x Silicon grommets M4 to M3

2x JST-SH1.0_8pin cable, 4cm

1x JST-GH-6P cable for DJI port, 10cm
