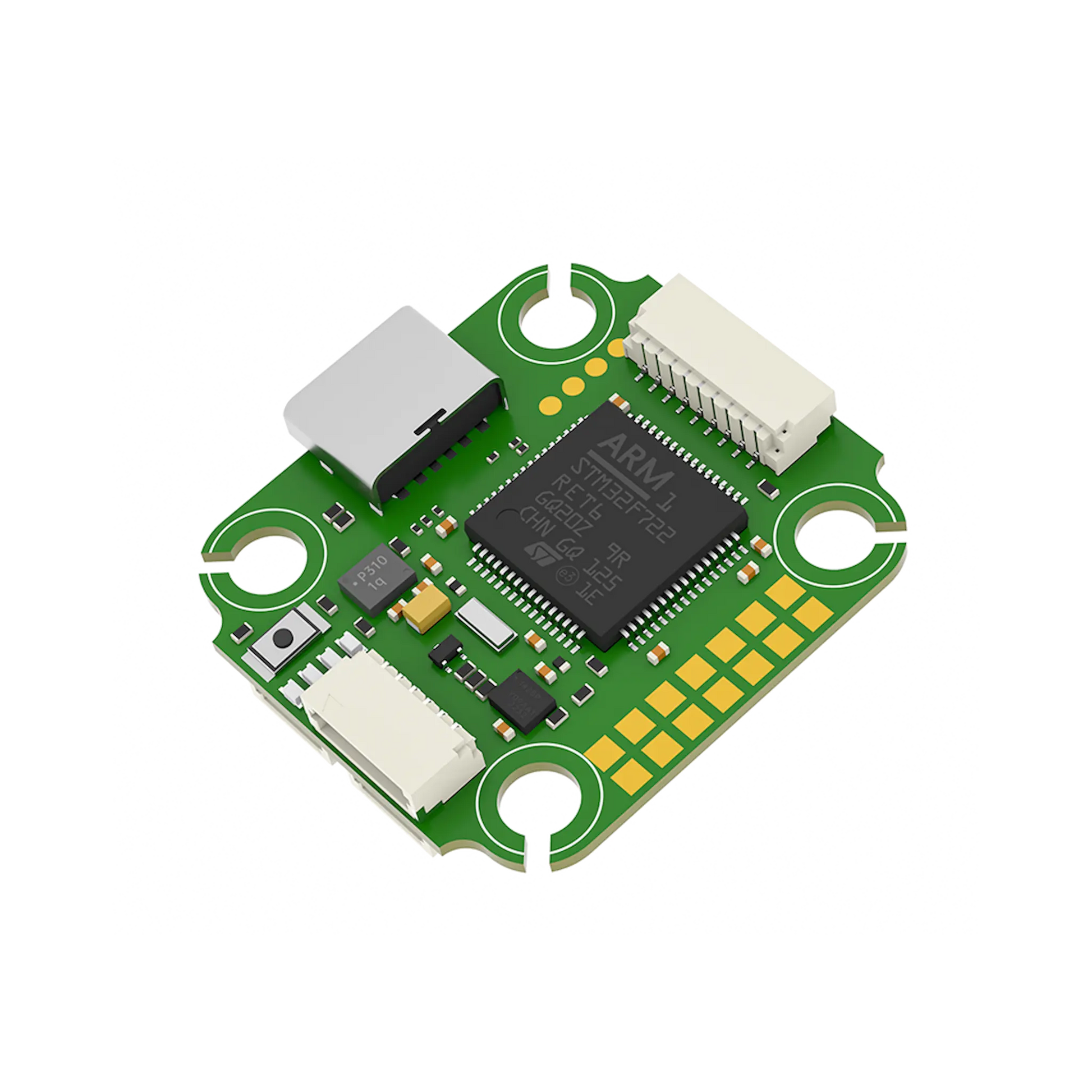

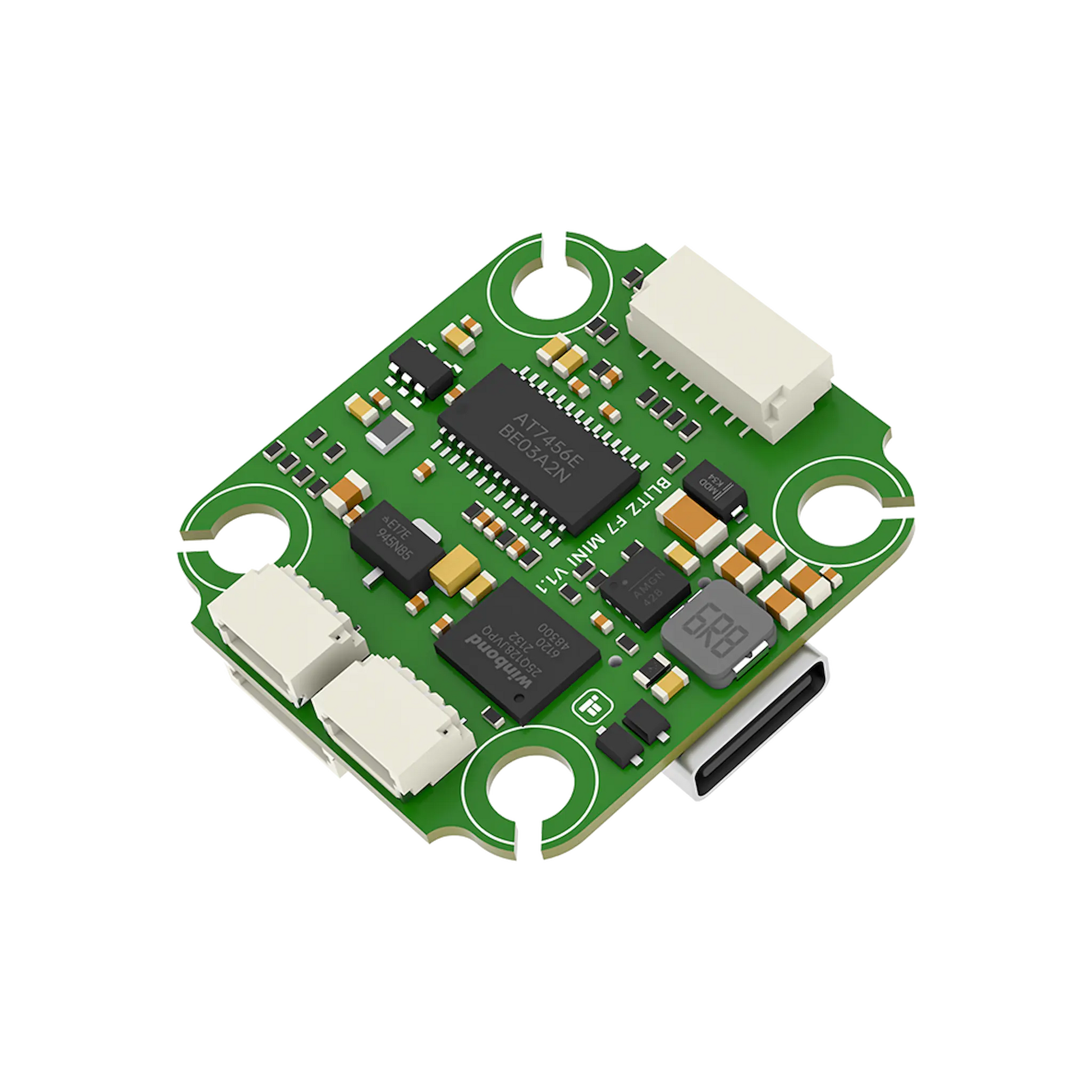

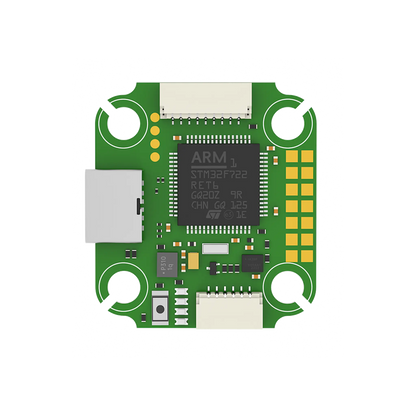

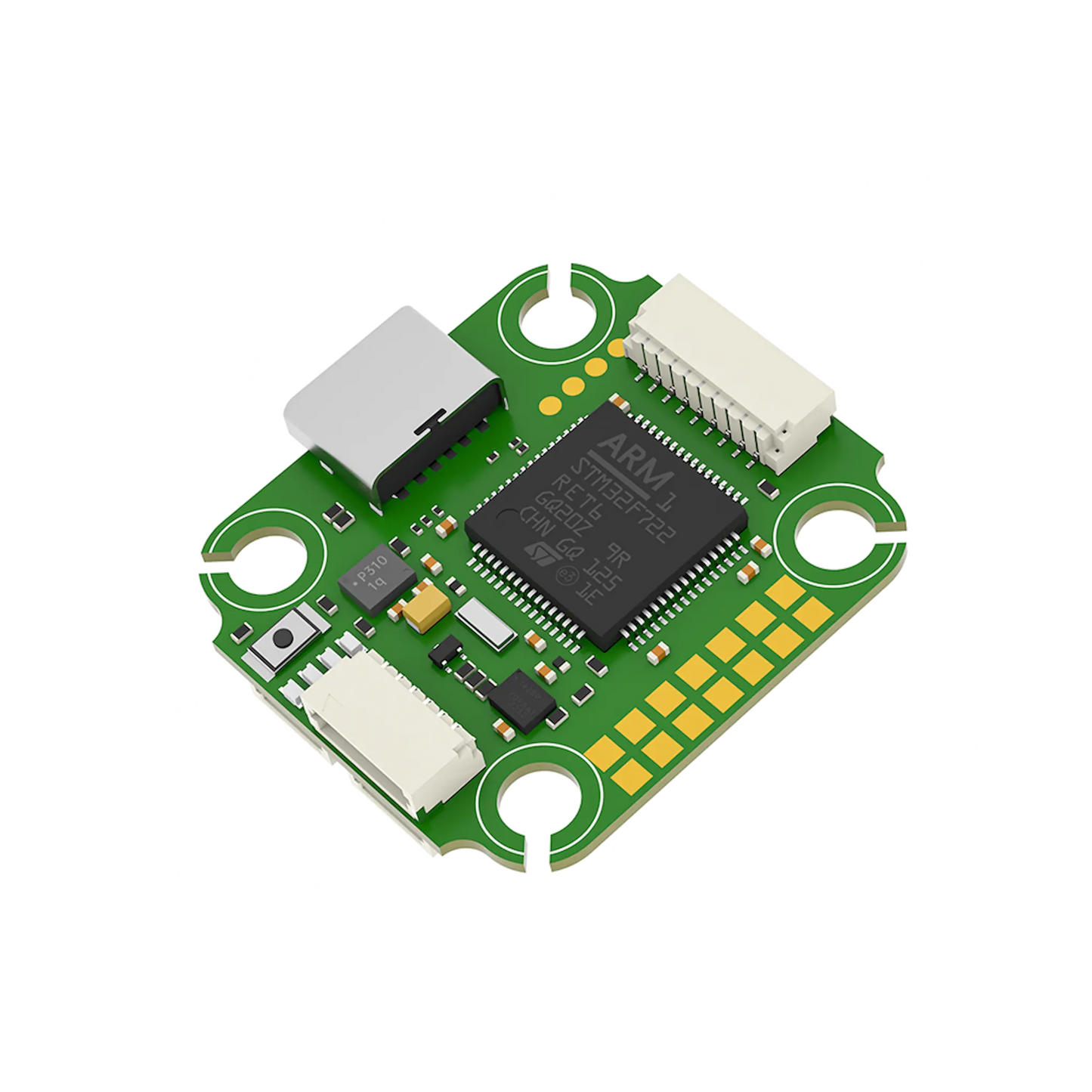

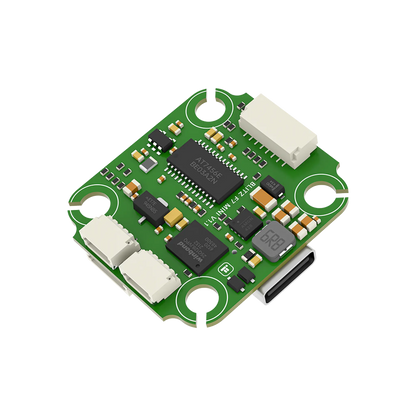

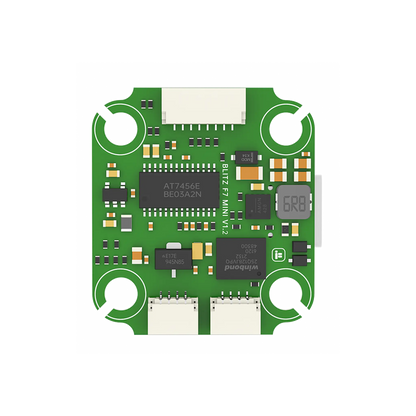

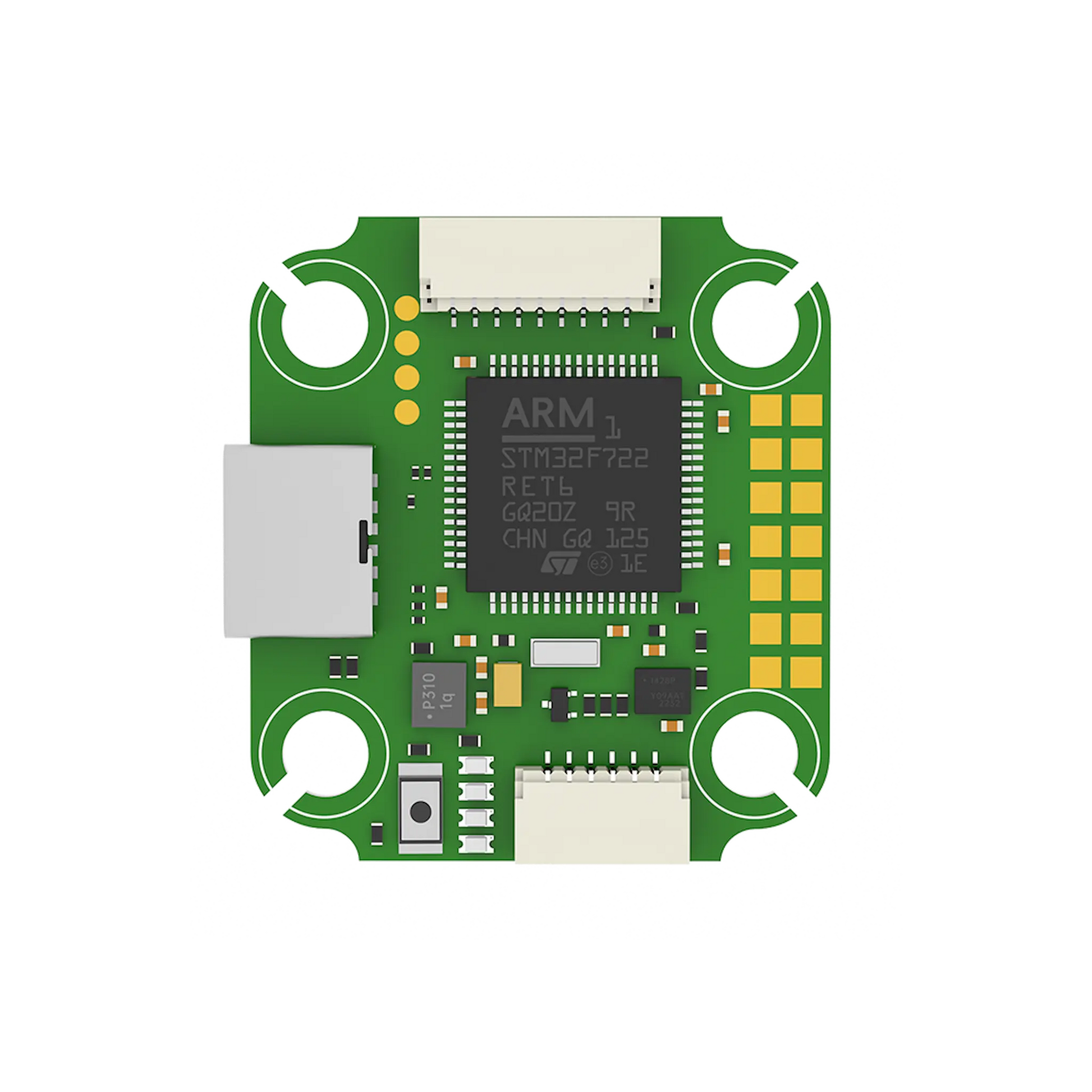

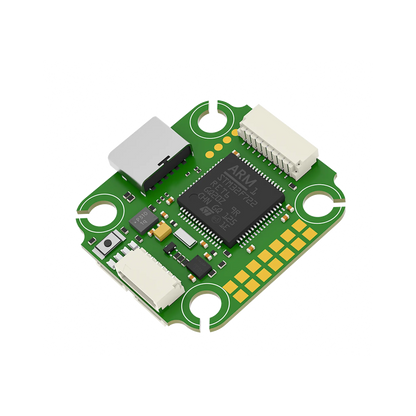

iFlight BLITZ Mini F7 Flight Controller(20x20)

iFlight BLITZ Mini F7 Flight Controller(20x20)

$58.99 USD
$76.99 USD $58.99 USD
Sale Sold out
Shipping calculated at checkout.

"Shipping & Returns"

"Free Shipping to USA (8-15 days)"

" Order Tracking Info "

Stay Updated Every Step of the Way.

Once your order is processed (usually within 1-3 business days), you will automatically receive a specific Tracking Number via email.

You can use this number to track your package directly on our website's "Track Your Order" page to see exactly where your items are in real-time.

Note: Sometimes it takes 24-48 hours for the carrier to update the tracking status after the label is created.

''🛡️30-Day Returns''

" 🔒 Secure Pay "

" 👨‍✈️ 24/7 Expert Pilot Support "

View full details

Description

Compact Processing Power.

Designed for frames with tight spacing, the BLITZ Mini F722 offers full F7 performance in a small package. Optimized for Betaflight, it supports all modern protocols including DJI HD and Analog OSD.

Improved circuit design, better components and lower electrical noise!

DJI HD VTX Connector (Plug-and-Play / No soldering required)

FC indicator LEDs for visual debugging

Specifications

MCU: STM32 F722

Gyro: ICM42688

Barometer: DPS310

OSD Chip: AT7456

Flash: 8MB (Blackbox flash)

UARTS: 6

Motor outputs: 4x (SH1.0 connector)

I2C serial: SDA/SLA pads

Smartaudio / IRC Tramp VTX protocol supported

LED controller: Yes

Beeper pad: Yes

Firmware target: IFRC-IFLIGHT_BLITZ_F722

Mount pattern: 20x20 mm / 4mm PCB hole diameter, silicon grommets for M3 screws

Dimensions: 30.5x27 mm

Weight: 5g

Wiring Suggestion

UART 1 for VTX HD / Analog

UART 2 for a Receiver

UART 3/4/5 for GPS or other sensors that require a serial port

UART 6 for ESC Telemetry

Packing List

1 x BLITZ Mini F7 V1.2 Flight Controller

1 x FC connectors

1 x Silicon grommets
