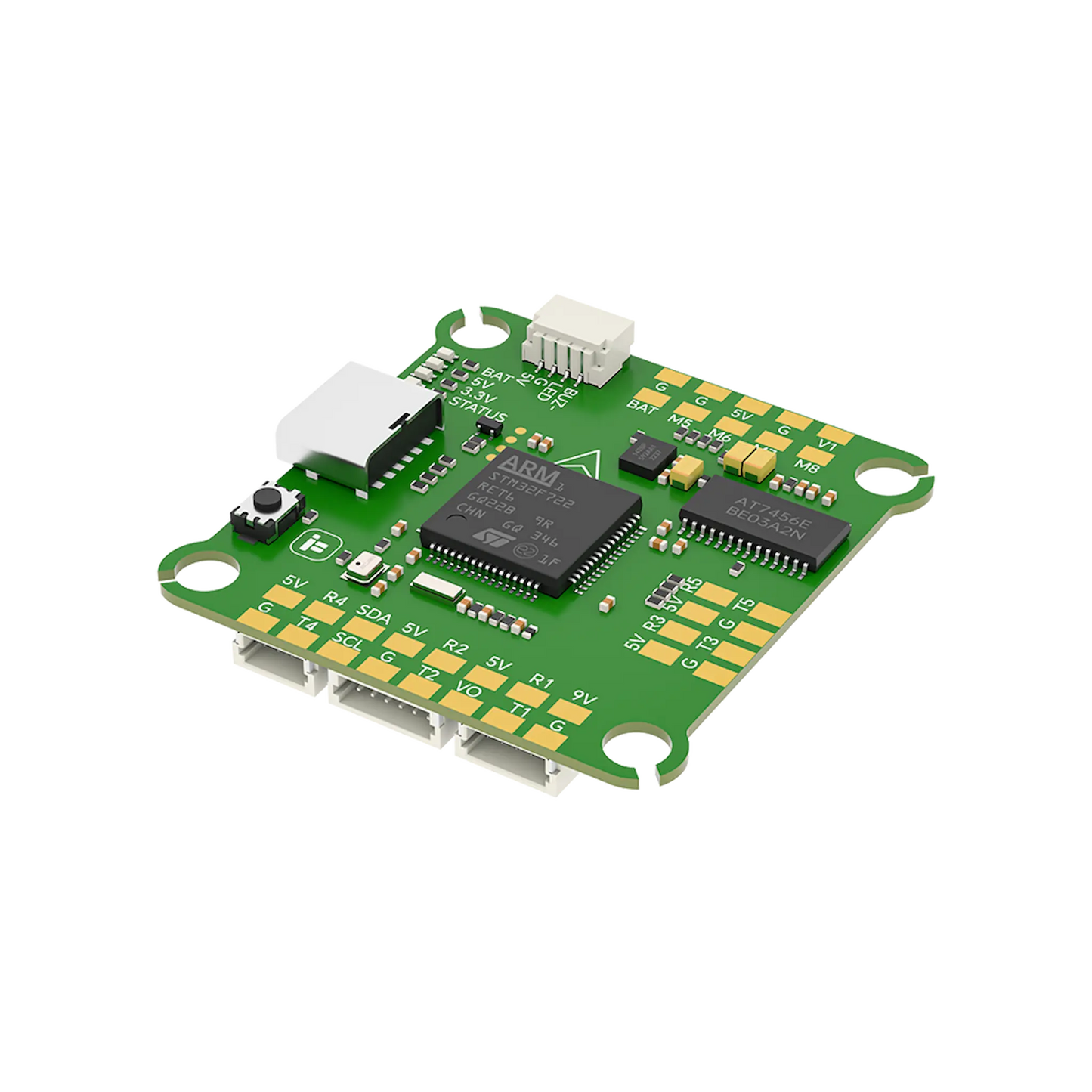

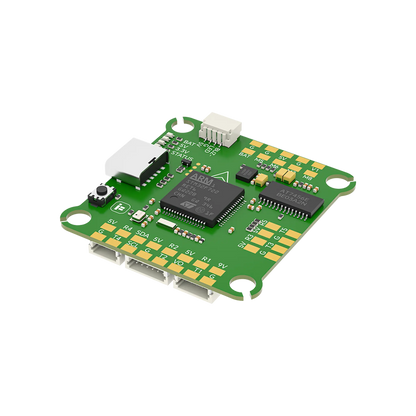

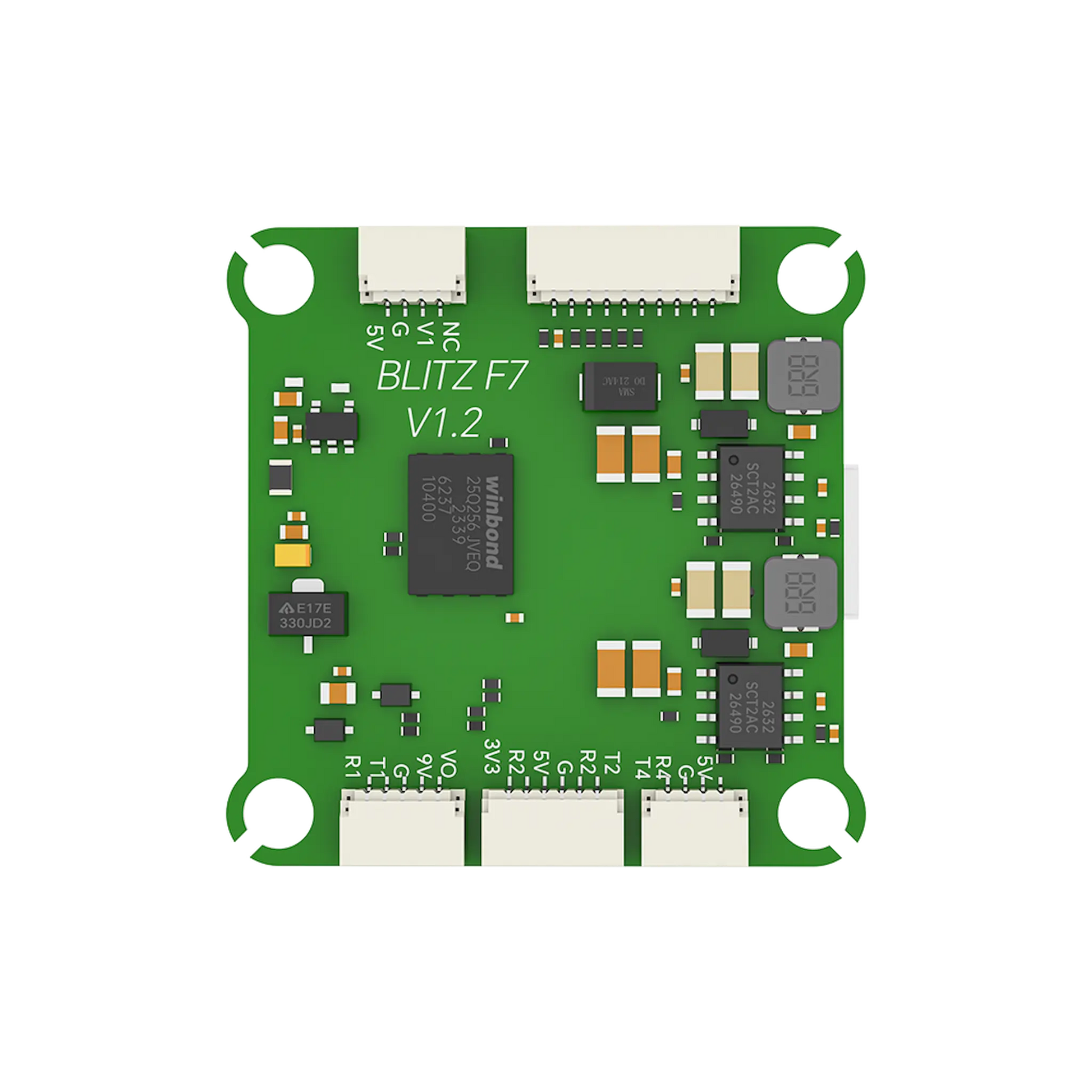

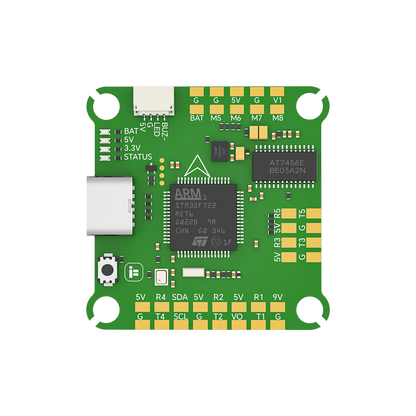

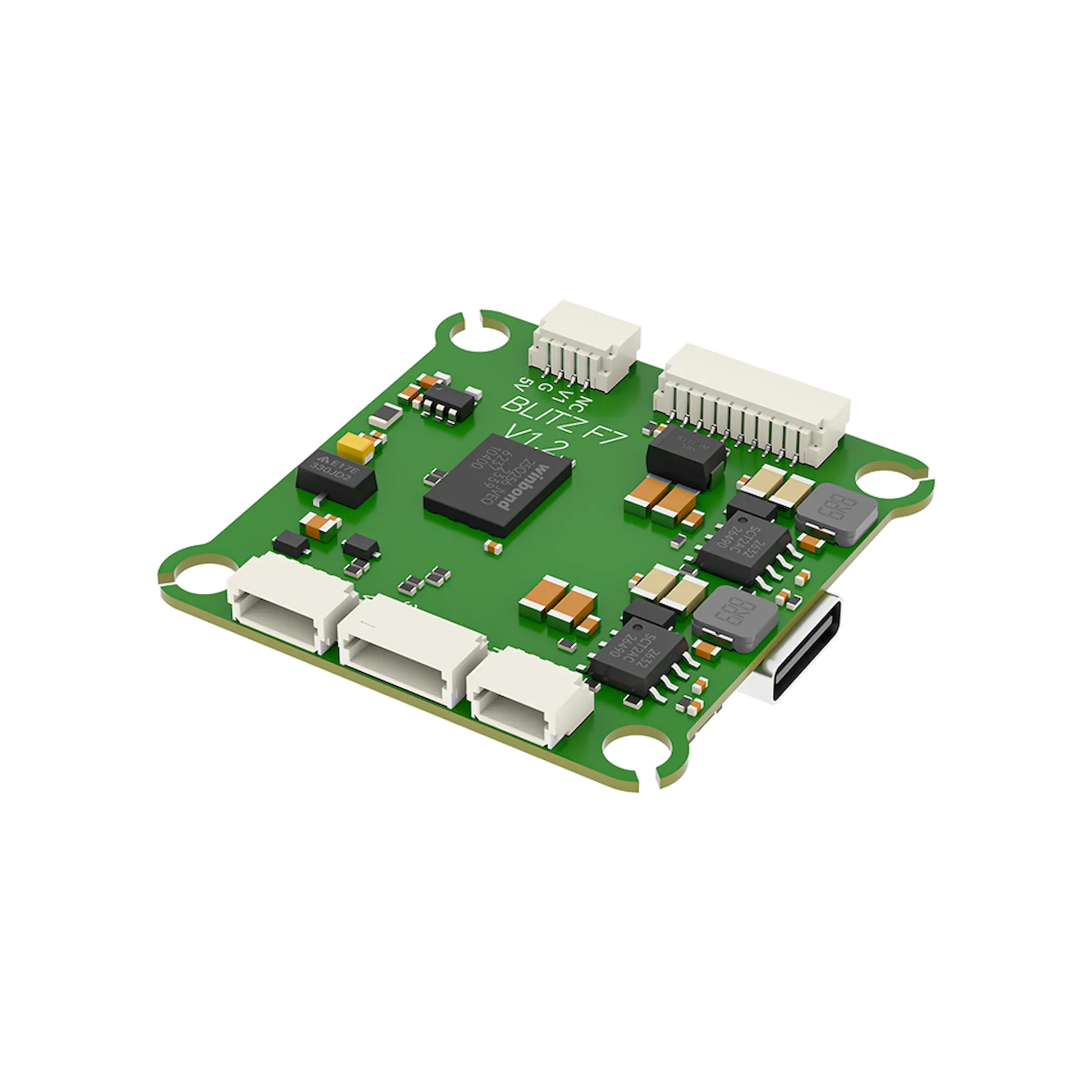

iFlight BLITZ F7 V1.2 Flight Controller (30x30)

iFlight BLITZ F7 V1.2 Flight Controller (30x30)

$71.99 USD
$86.99 USD $71.99 USD
Sale Sold out
Shipping calculated at checkout.

"Shipping & Returns"

"Free Shipping to USA (8-15 days)"

" Order Tracking Info "

Stay Updated Every Step of the Way.

Once your order is processed (usually within 1-3 business days), you will automatically receive a specific Tracking Number via email.

You can use this number to track your package directly on our website's "Track Your Order" page to see exactly where your items are in real-time.

Note: Sometimes it takes 24-48 hours for the carrier to update the tracking status after the label is created.

''🛡️30-Day Returns''

" 🔒 Secure Pay "

" 👨‍✈️ 24/7 Expert Pilot Support "

View full details

Description

The Standard for Reliability.

Need to replace your Nazgul's brain? The BLITZ F722 is the official replacement flight controller. It features 32MB of Blackbox memory for tuning logs and a BMI270 gyro for smooth flight performance.

Specifications



MCU: STM32 F722

Gyro: ICM42688

Barometer: DPS310

OSD Chip: AT7456E

Flash: 32MB (Blackbox flash)

UARTS: 6

Motor outputs: 4x (SH1.0 connector)

I2C serial: SDA / SLA pads

Smartaudio / IRC Tramp VTX protocol supported

LED controller: Yes

Beeper pad: Yes

Firmware target: IFRC-IFLIGHT_BLITZ_F722

Mount pattern: 30.5*30.5mm / 4mm PCB hole diameter

Dimensions: 36.5*35 mm

Weight: 7.8g

BEC: 5V 2.5A / 9V 2A

Wiring Suggestion

UART 1 for VTX HD / Analog

UART 2 for a Receiver

UART 3/4/5 for GPS or other sensors that require a serial port

UART 6 for ESC Telemet

Packing List

1 x BLITZ F7 V1.2 Flight Controller

1 x FC connectors (as above)

1 x silicon grommets
