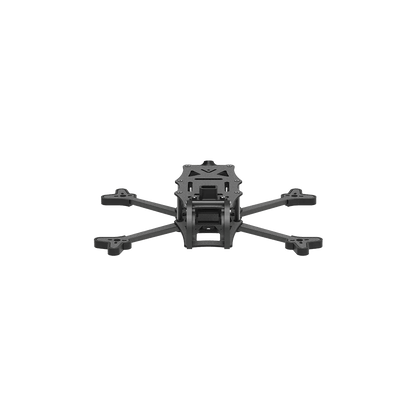

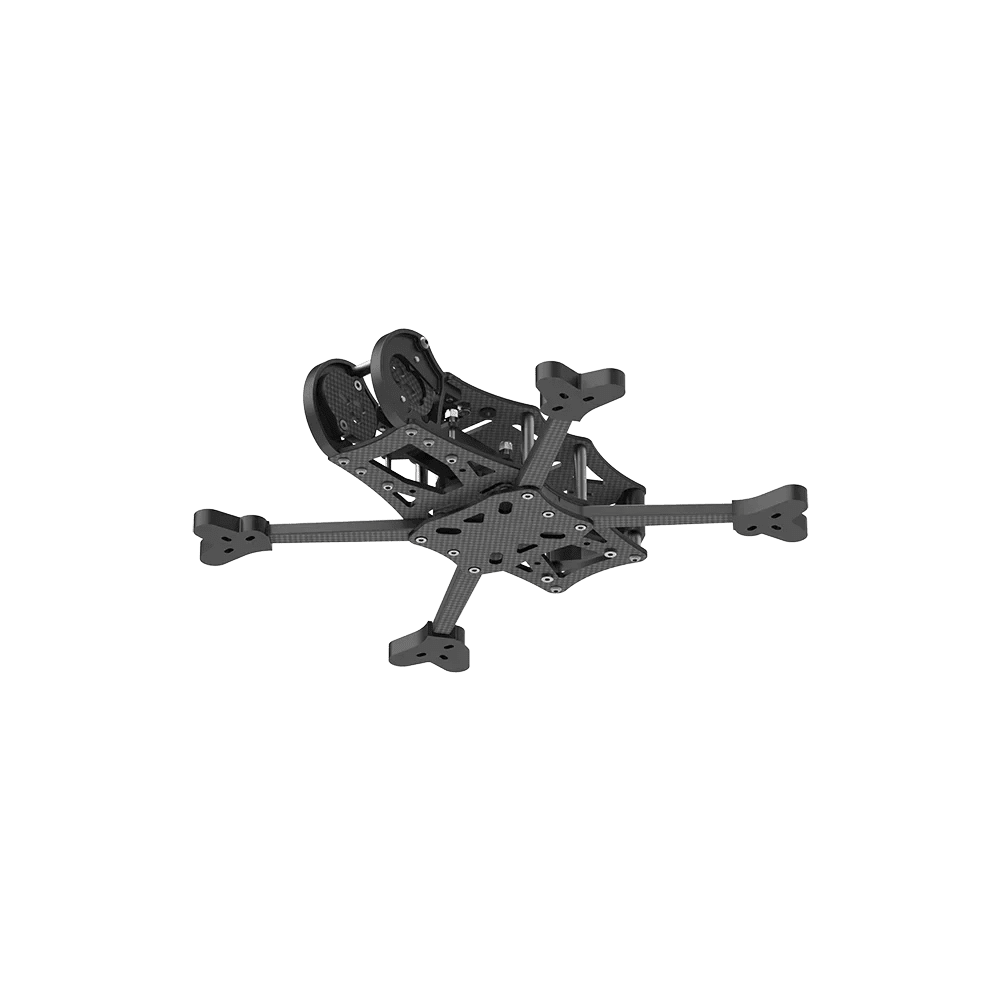

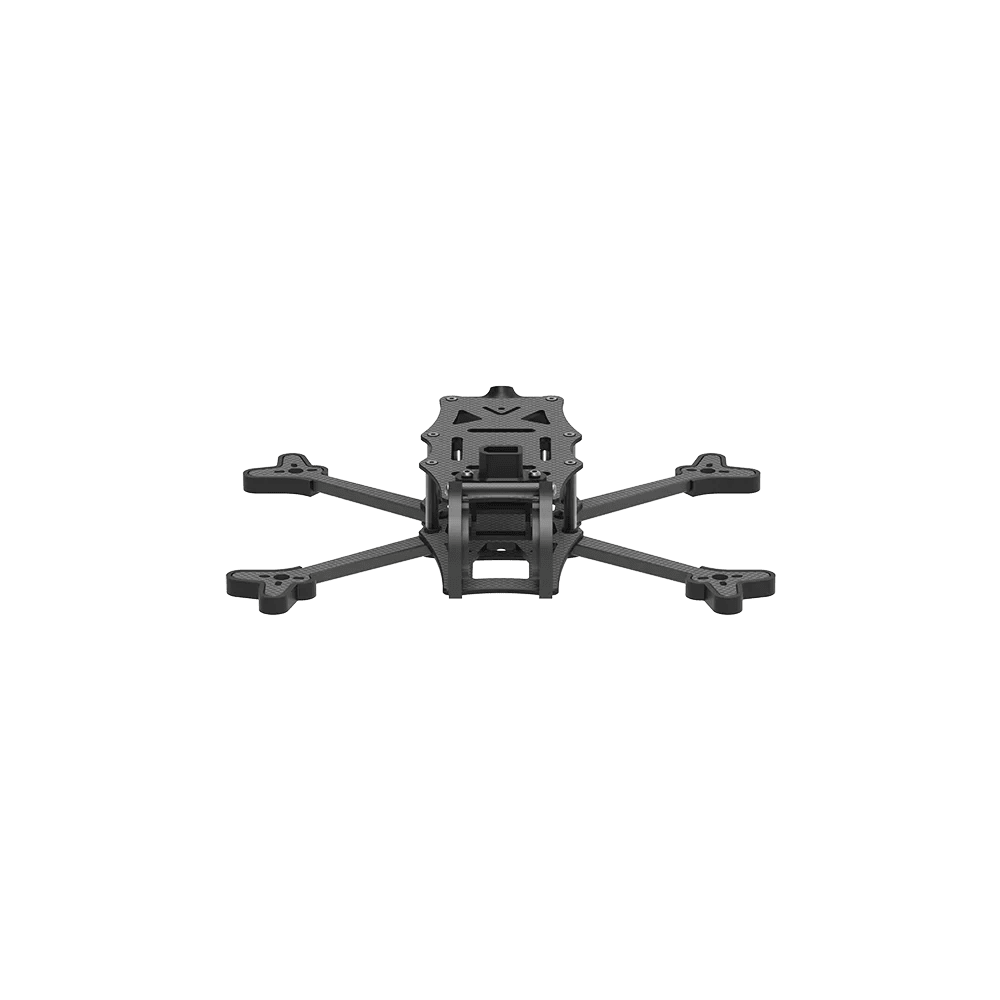

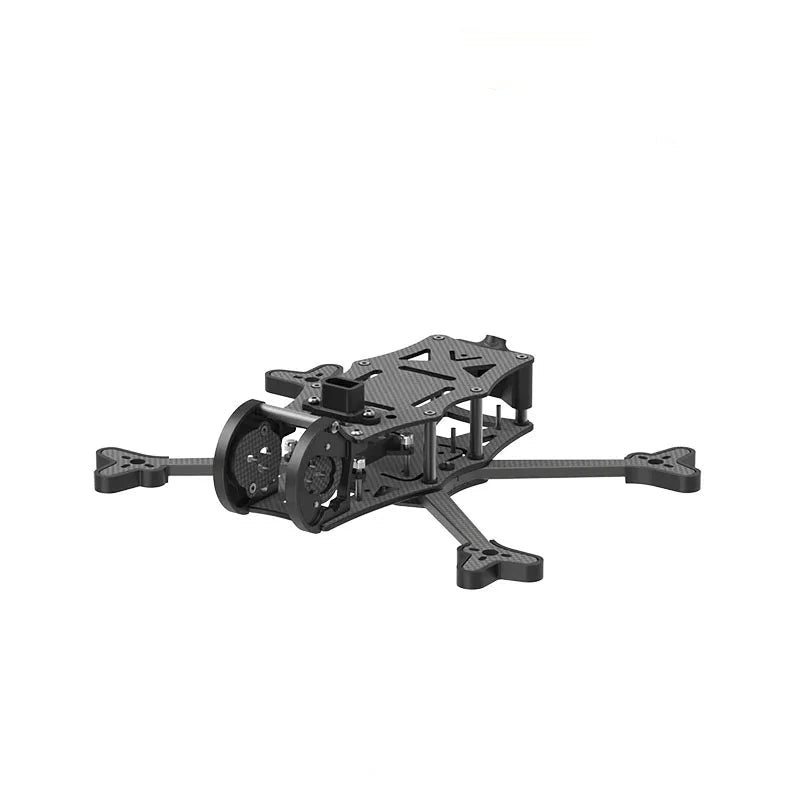

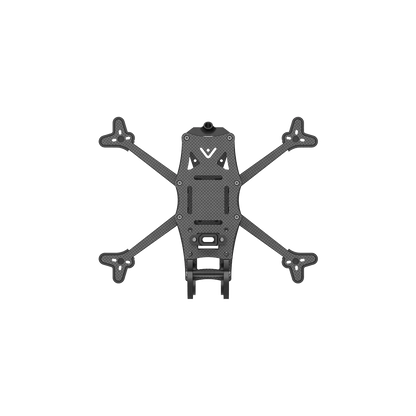

iFlight AOS 3.5 V5 Frame

Name: iFlight AOS 3.5 V5 Frame
Brand: iFlight
Price: 87.99 USD
Availability: OutOfStock

$87.99 USD

~~$98.99 USD~~ $87.99 USD

Sale Sold out

Shipping calculated at checkout.

"Shipping & Returns"

"Free Shipping to USA (8-15 days)"

" Order Tracking Info "

Stay Updated Every Step of the Way.

Once your order is processed (usually within 1-3 business days), you will automatically receive a specific Tracking Number via email.

You can use this number to track your package directly on our website's "Track Your Order" page to see exactly where your items are in real-time.

Note: Sometimes it takes 24-48 hours for the carrier to update the tracking status after the label is created.

''🛡️30-Day Returns''

" 🔒 Secure Pay "

" 👨‍✈️ 24/7 Expert Pilot Support "

View full details

Description

The AOS 3.5 V5 brings the revolutionary vibration-damping technology of the 5-inch class down to a compact 3.5-inch form factor. Designed by Chris Rosser, every curve and cutout in the carbon is scientifically calculated to push resonance frequencies above the throttle range. This means you get buttery smooth footage and cooler motors, even when carrying a heavy GoPro or DJI O3 Air Unit on a sub-250g build. It's not just a small drone; it's a precision instrument.

Description

Designed with cutting-edge patent pending technology and premium materials, here's why the AOS 3.5 V5 is the ultimate choice for drone enthusiasts.

Changelog

Mar. 11, 2025: Frame Kit updated to be compatible with DJI O4 Air Unit and DJI O4 Air Unit Pro.

February 5, 2026: Frame is upgraded to version V5.1. This upgrade improves the interlocking arm geometry and adds a central spine to reinforce the arms and further stiffen the flight controller mounting.

Features

Supports up to 3.5" Props
AOS X-Cell Anti-Vibration Technology
Up to two 25.5x25.5, or 20x20 mm stacks
155° FOV no props in view
Fully DJI O3 compatible (soft mount + ND filters)
Supports 19-20mm cameras (hard or soft mounted)
Reinforced 7075 Aluminium Camera Cage
Supports Lengthwise or Toilet Tank battery mounting
27x21mm M2 GoPro Mounting Pattern

Specifications

Product Name: AOS 3.5 V5 Frame Kit
Frame wheelbase: 162mm
Frame Dimension: L133*W93*H30 mm
Arm Thickness: 4mm
Top Plate Thickness: 1.5mm
Bottom Plate Thickness: 1.5mm
Upper Plate Thickness: 2mm
Max Flight Stack Height: 20mm
Max VTX Height: 20mm
Motor Mounting: 9x9-φ2mm/12x12-φ2mm
Flight Stack Mounting: 20*20 Φ2mm / 25.5*25.5 Φ2mm
VTX Mounting: 20*20/Φ2mm / 25.5*25.5/Φ2mm
Weight: 81±5g

Compatible: DJI O3 air unit/ Vista HD system/ BLITZ Whoop 1.6W VTX/DJI O4 Air Unit/DJI O4 Air Unit Pro

Packing List

1 x AOS 3.5 V5.1 Frame Kit
1 x TPU Parts
1 x Screw Bag
2 x Battery Strap
2 x Battery pads

Note

Due to manufacturing processes, the thickness of our products may have a standard manufacturing tolerance of ±0.2mm. The size of the hole may have a standard manufacturing tolerance of ±0.1mm.
