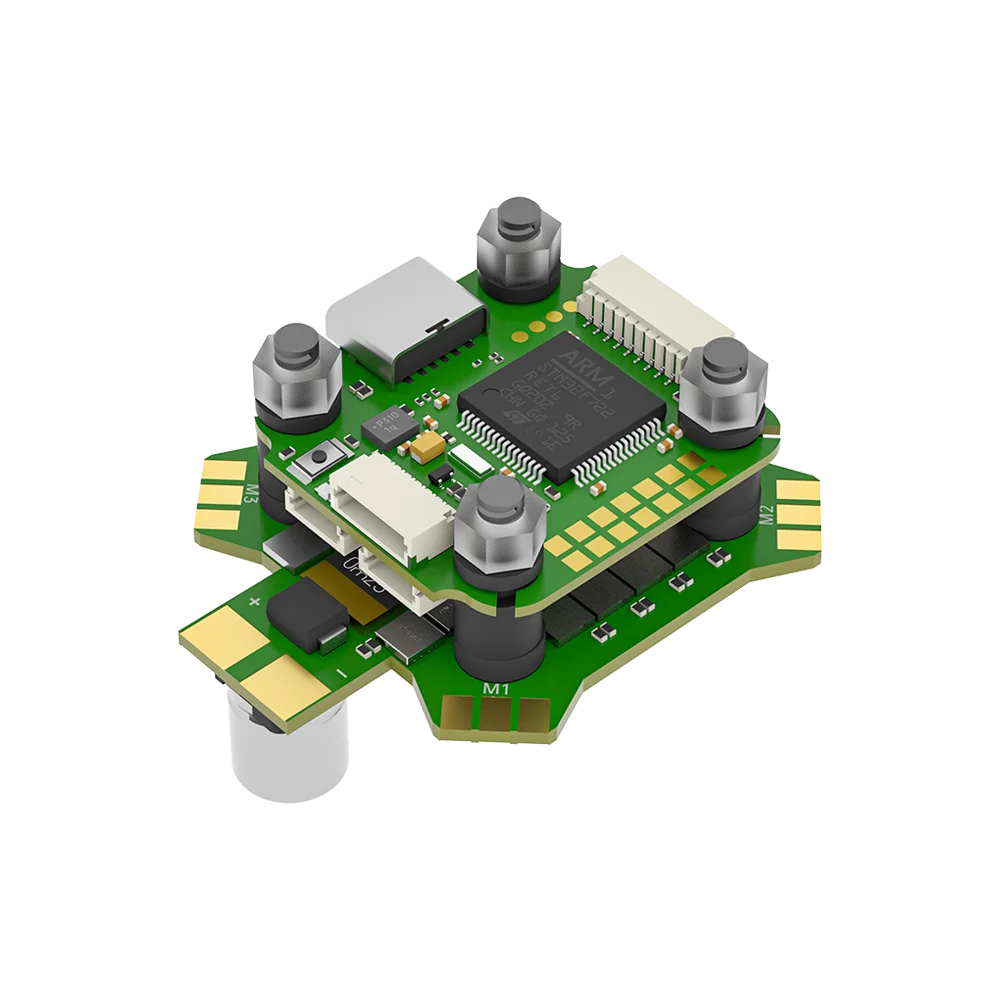

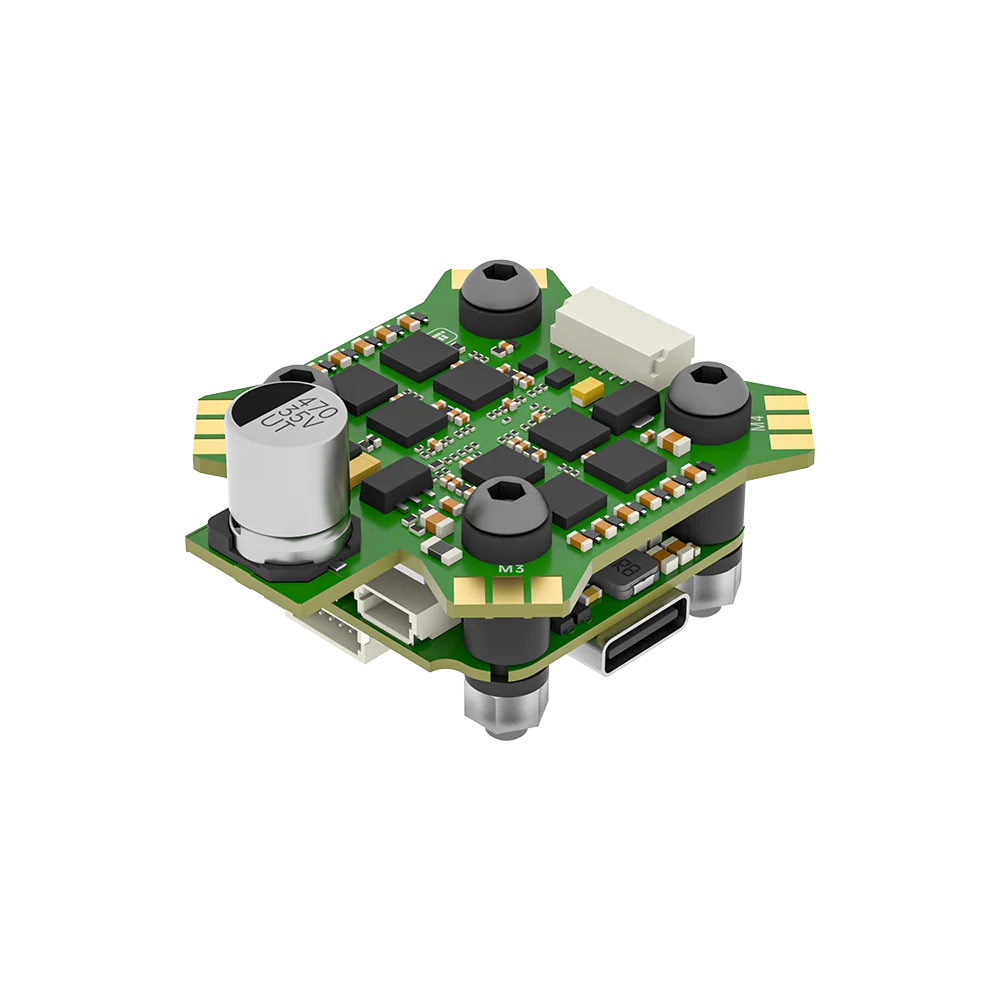

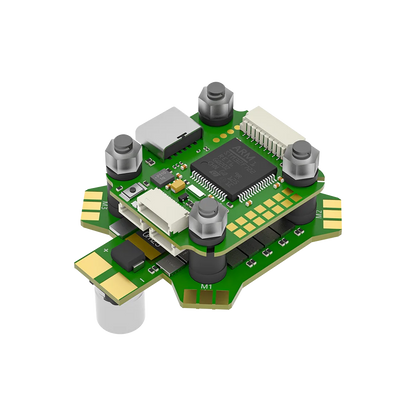

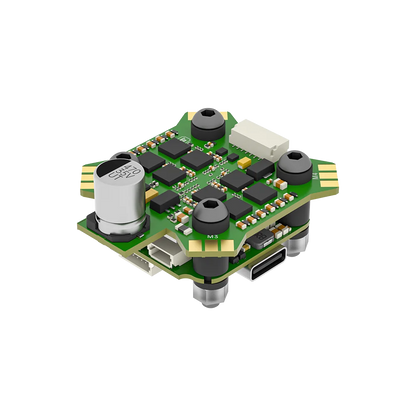

iFlight BLITZ Mini F7 Stack - F722 FC + E55 55A ESC

Name: iFlight BLITZ Mini F7 Stack - F722 FC + E55 55A ESC
Brand: iFlight
Price: 119.99 USD
Availability: OutOfStock

$119.99 USD

~~$138.99 USD~~ $119.99 USD

Sale Sold out

Shipping calculated at checkout.

"Shipping & Returns"

"Free Shipping to USA (8-15 days)"

" Order Tracking Info "

Stay Updated Every Step of the Way.

Once your order is processed (usually within 1-3 business days), you will automatically receive a specific Tracking Number via email.

You can use this number to track your package directly on our website's "Track Your Order" page to see exactly where your items are in real-time.

Note: Sometimes it takes 24-48 hours for the carrier to update the tracking status after the label is created.

''🛡️30-Day Returns''

" 🔒 Secure Pay "

" 👨‍✈️ 24/7 Expert Pilot Support "

View full details

Description

Small Size, Massive Power.

Don't let the 20x20mm size fool you. The BLITZ Mini F7 Stack delivers the same performance as its big brother but in a compact form factor. It is the perfect choice for lightweight 5-inch builds or compact 3.5-inch cinewhoops.

Why choose Mini?

Weight Saving: Lighter than standard stacks without sacrificing power.
F7 Performance: High-speed processing for the best flight feel.
55A ESC: Industry-leading power density for a mini ESC.

Improved circuit design, better components and lower electrical noise!

DJI HD VTX Connector (Plug-and-Play / No soldering required)

FC indicator LEDs for visual debugging

FC Specifications

MCU: STM32 F722

Gyro: ICM42688

Barometer: DPS310

OSD Chip: AT7456

Flash: 8MB (Blackbox flash)

UARTS: 6

I2C serial: SDA/SLA pads

Smartaudio / IRC Tramp VTX protocol supported

LED controller: Yes

Beeper pad: Yes

Firmware target: IFRC-IFLIGHT_BLITZ_F722

Mount pattern: 20x20 mm / φ4

Dimensions: 30.5x27 mm

Weight: 5g

Wiring Suggestion

UART 1 for VTX HD / Analog

UART 2 for a Receiver

UART 3/4/5 for GPS or other sensors that require a serial port

UART 6 for ESC Telemetry

ESC Specifications

Product Name: BLITZ Mini E55S 4-IN-1 ESC

Mounting Holes: 20*20mm/Φ4mm

Weight: 11.3g

Supports 2-6S Lipo input

MCU： BB21

Constant: 55 Amps

Burst: 65 Amps

Current sensor: Yes

BEC: No

Current rate: 200

Supports: DShot DShot150/300/600/MultiShot/OneShot etc.

Target: Q-H-25 16.7(BlheliS) / Bluejay Q-H-50 (Bluejay)/Q-H-50 - Bluejay, 0.16, 24kHz
