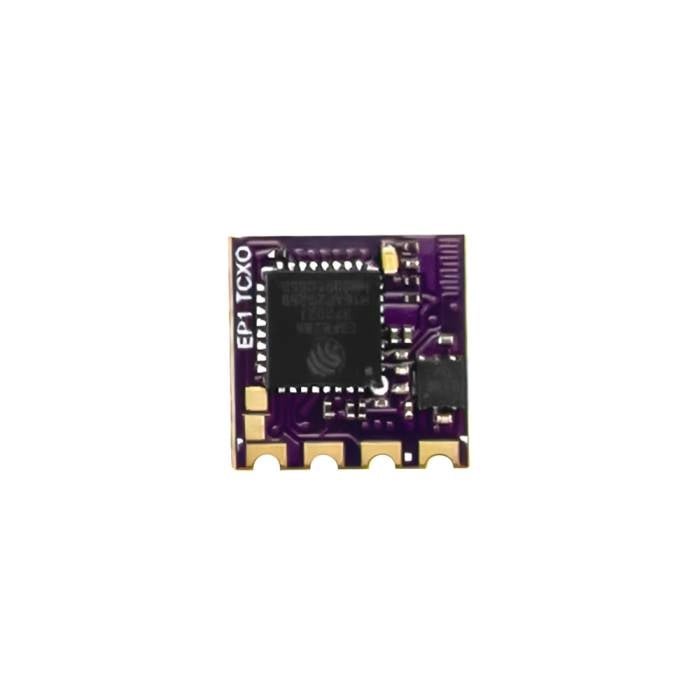

HappyModel EP1 TCXO ExpressLRS (ELRS) 2.4GHz Receiver

HappyModel EP1 TCXO ExpressLRS (ELRS) 2.4GHz Receiver

$26.99 USD
$32.99 USD $26.99 USD
Sale Sold out
Shipping calculated at checkout.

"Shipping & Returns"

"Free Shipping to USA (8-15 days)"

" Order Tracking Info "

Stay Updated Every Step of the Way.

Once your order is processed (usually within 1-3 business days), you will automatically receive a specific Tracking Number via email.

You can use this number to track your package directly on our website's "Track Your Order" page to see exactly where your items are in real-time.

Note: Sometimes it takes 24-48 hours for the carrier to update the tracking status after the label is created.

''🛡️30-Day Returns''

" 🔒 Secure Pay "

" 👨‍✈️ 24/7 Expert Pilot Support "

View full details

Description

   The HappyModel EP1 TCXO is the upgraded version of the legendary EP1 receiver. It features a high-quality Temperature Compensated Crystal Oscillator (TCXO), which ensures zero frequency drift even in extreme heat or freezing cold environments.

   If you fly long-range or in hot summers where your electronics get toasty, the TCXO ensures your radio link remains stable and locked-in. It retains the same tiny form factor and external T-antenna for maximum range.

Key Features:

  • TCXO Integrated: Excellent frequency stability (-20°C to +85°C).

  • No Drift: Prevents failsafes caused by heat/cold frequency shift.

  • Long Range: External Omni antenna for reliable signal.

  • Compact: Same size as the standard EP1.

EP1 TCXO Receiver

  • Type: ISM2.4GHz
  • ESP8285 MCU
  • SX1280(SX1281)IMLTRT RF Module
  • Omni directional antenna
  • Frequency Range: 2400 MHz to 2500 MHz
  • Receive refresh rate: 25HZ~500Hz
  • Working voltage: 5v
  • Weight: 0.41 gram(without antenna)
  • Dimension: 10mm*10mm*6mm
  • Peak gain: 2.23dB
  • Default Firmware out of factory: HappyModel_EP_2400_RX V3.0.1 version
  • Built-in a TCXO (temperature compensated crystal oscillator)

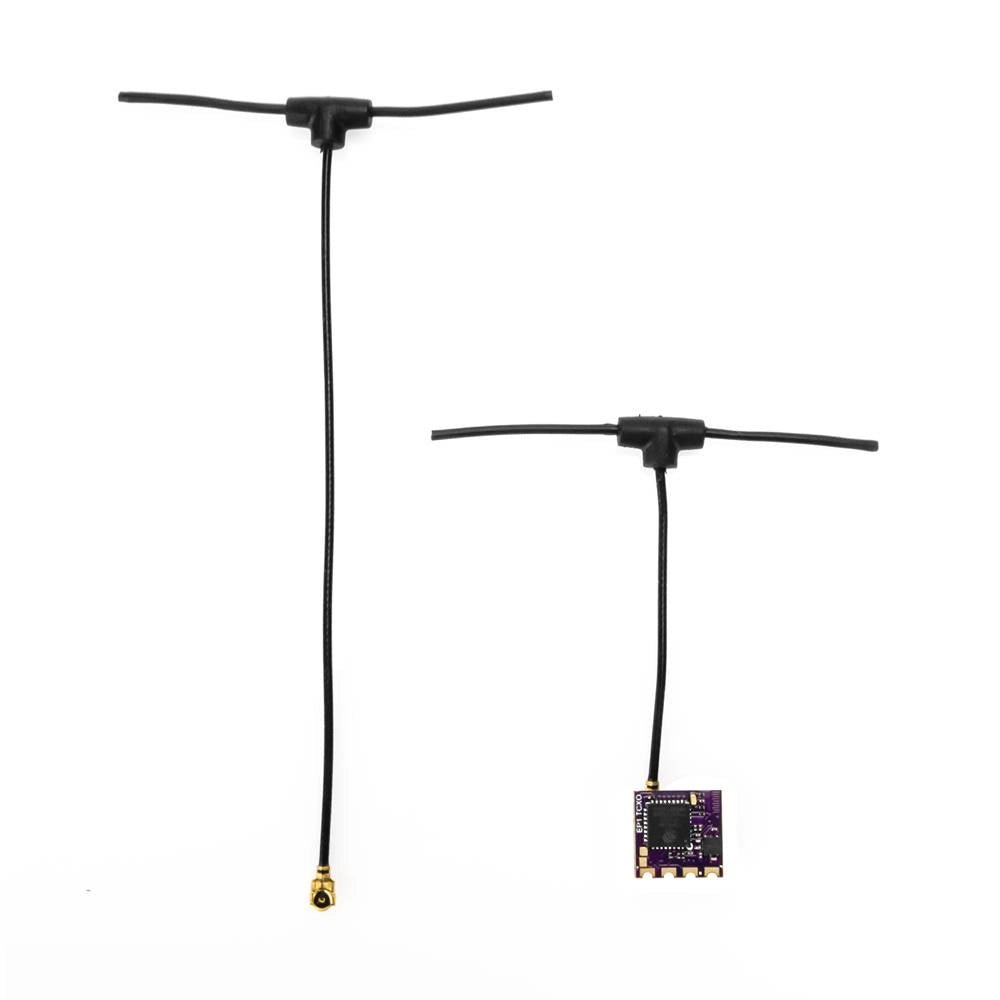

Includes:

  • 1x HappyModel EP1 TCXO Receiver

  • 1x 40mm Omni Antenna

  • 1x 90mm Omni Antenna
