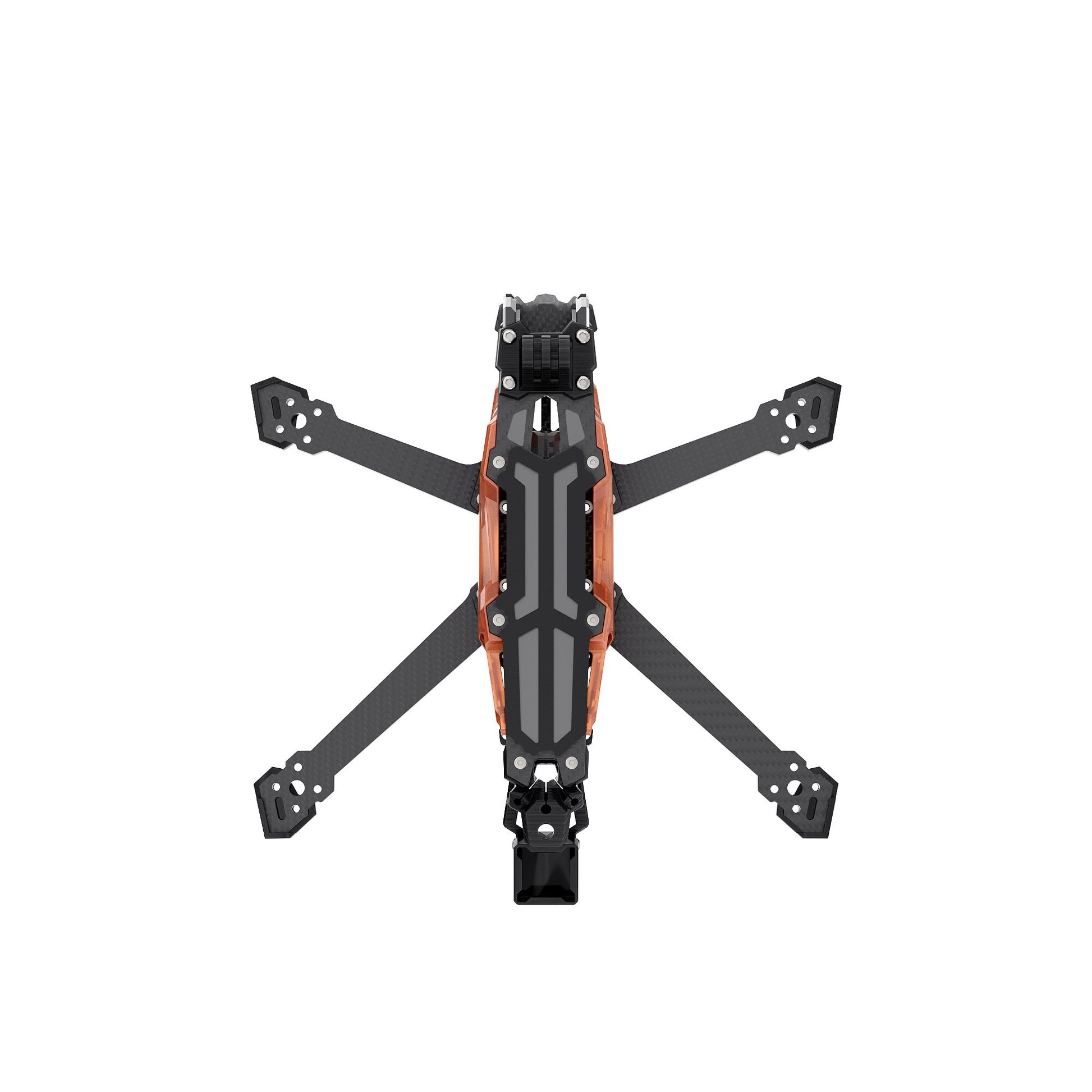

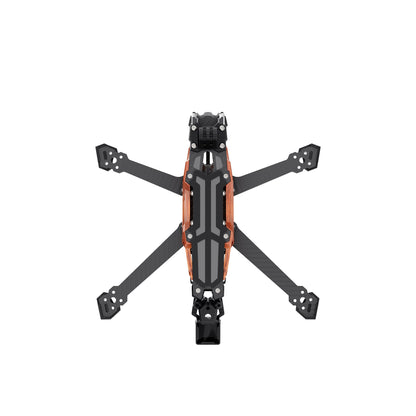

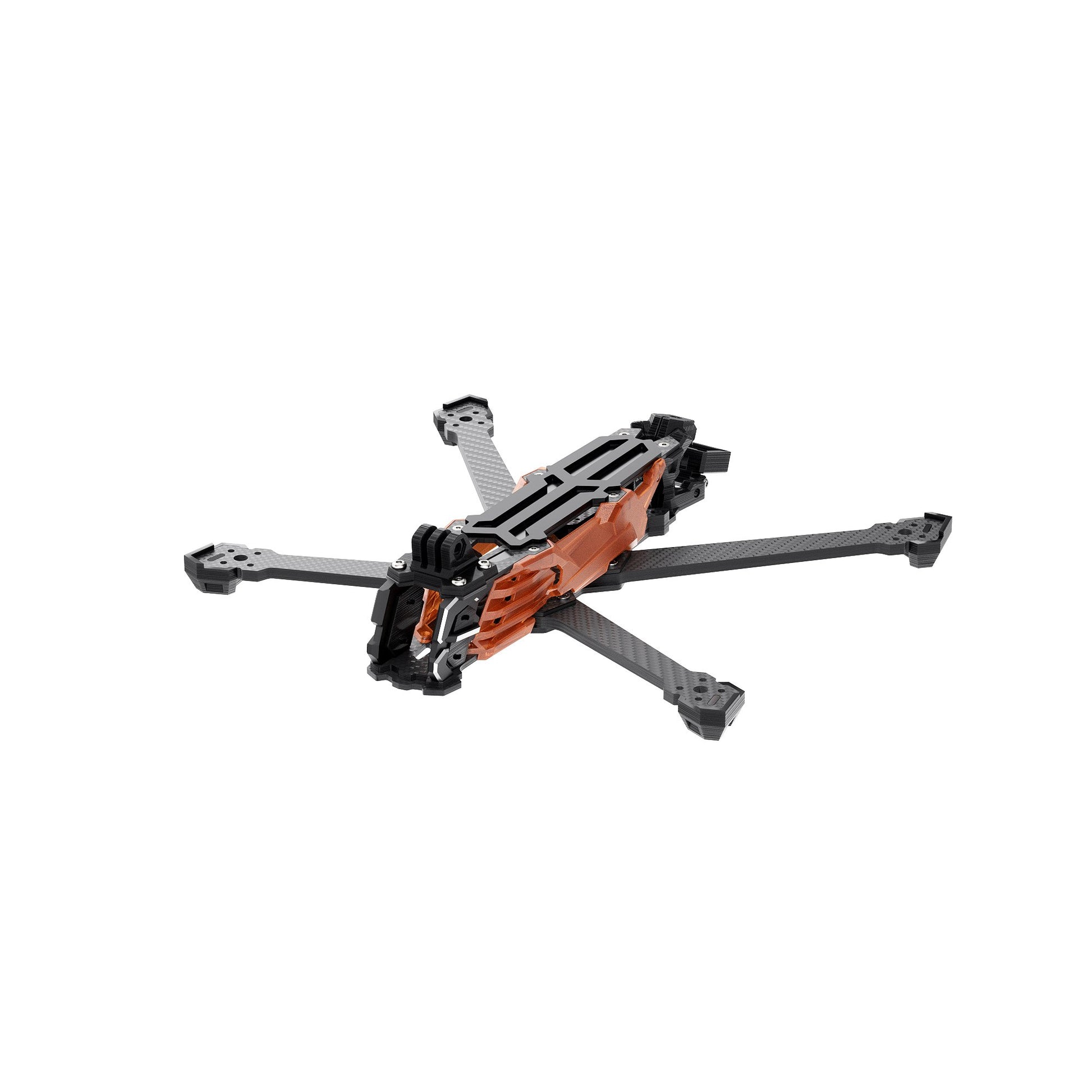

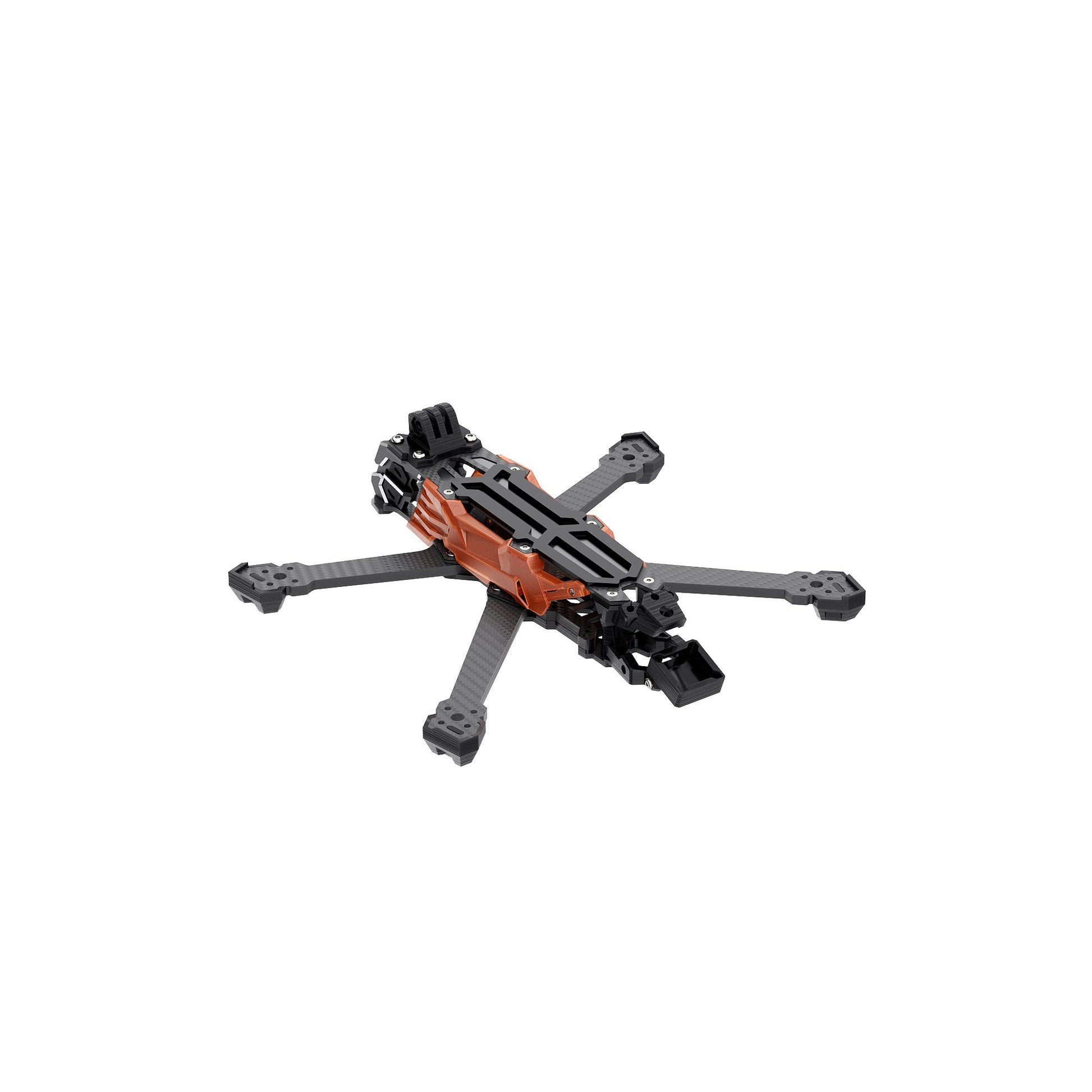

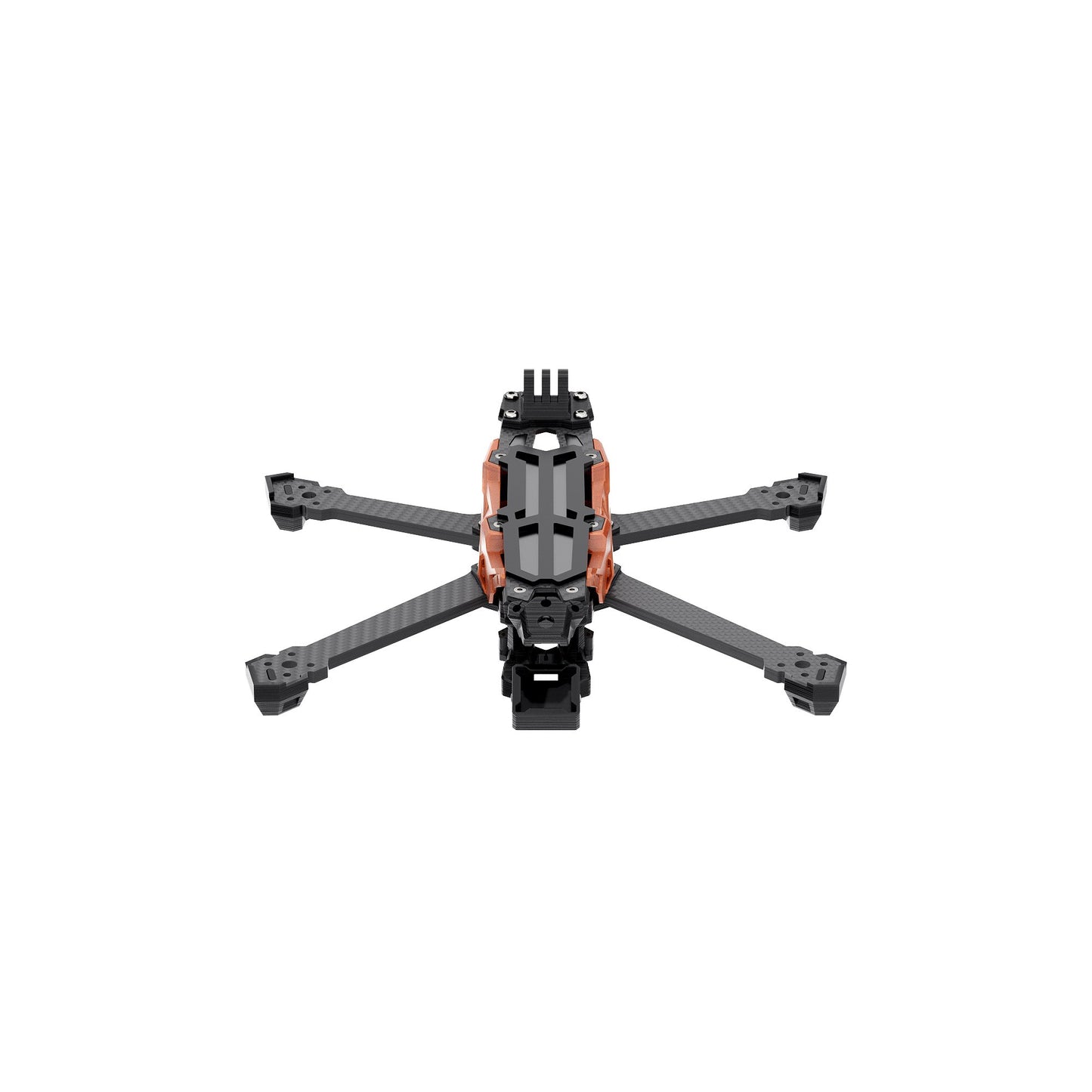

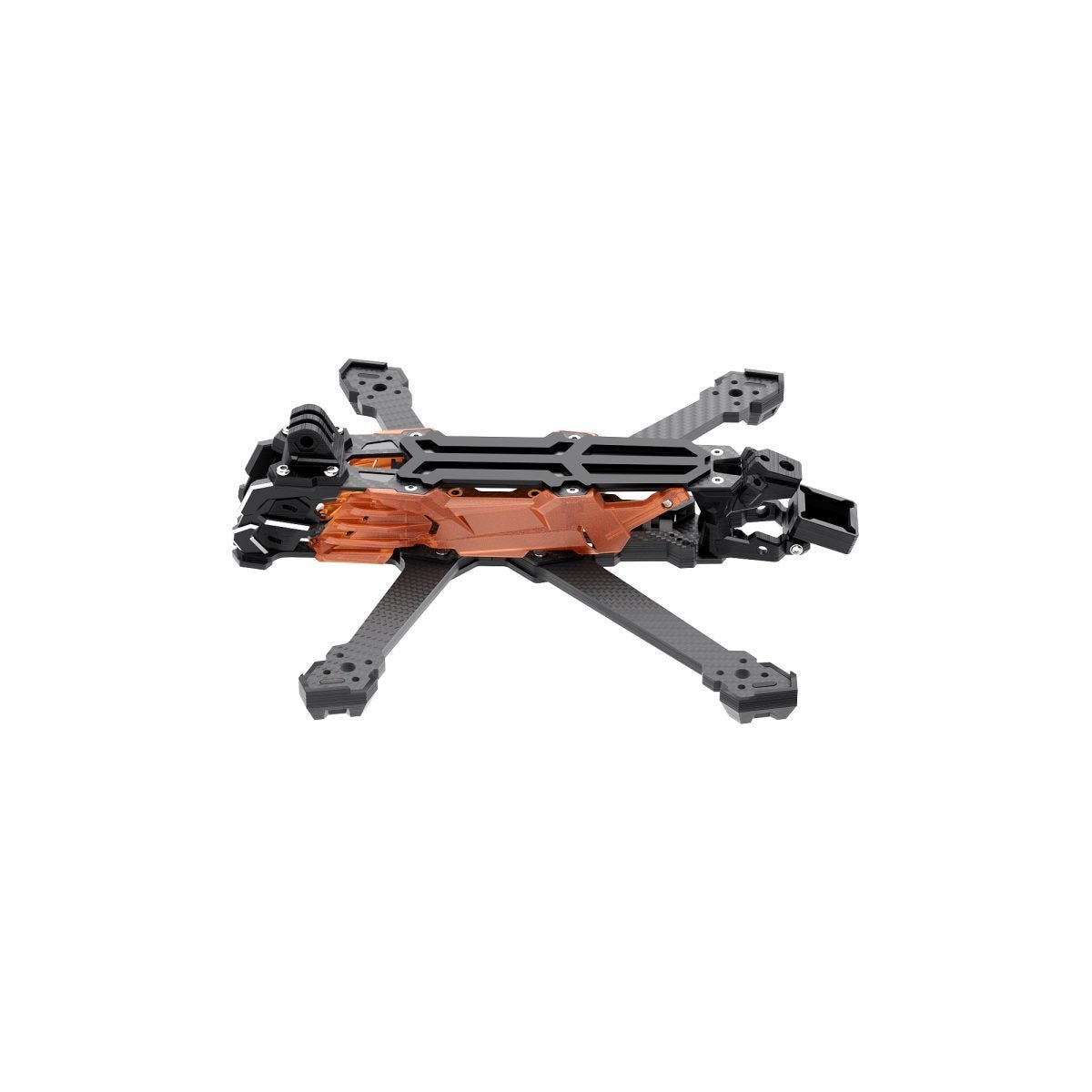

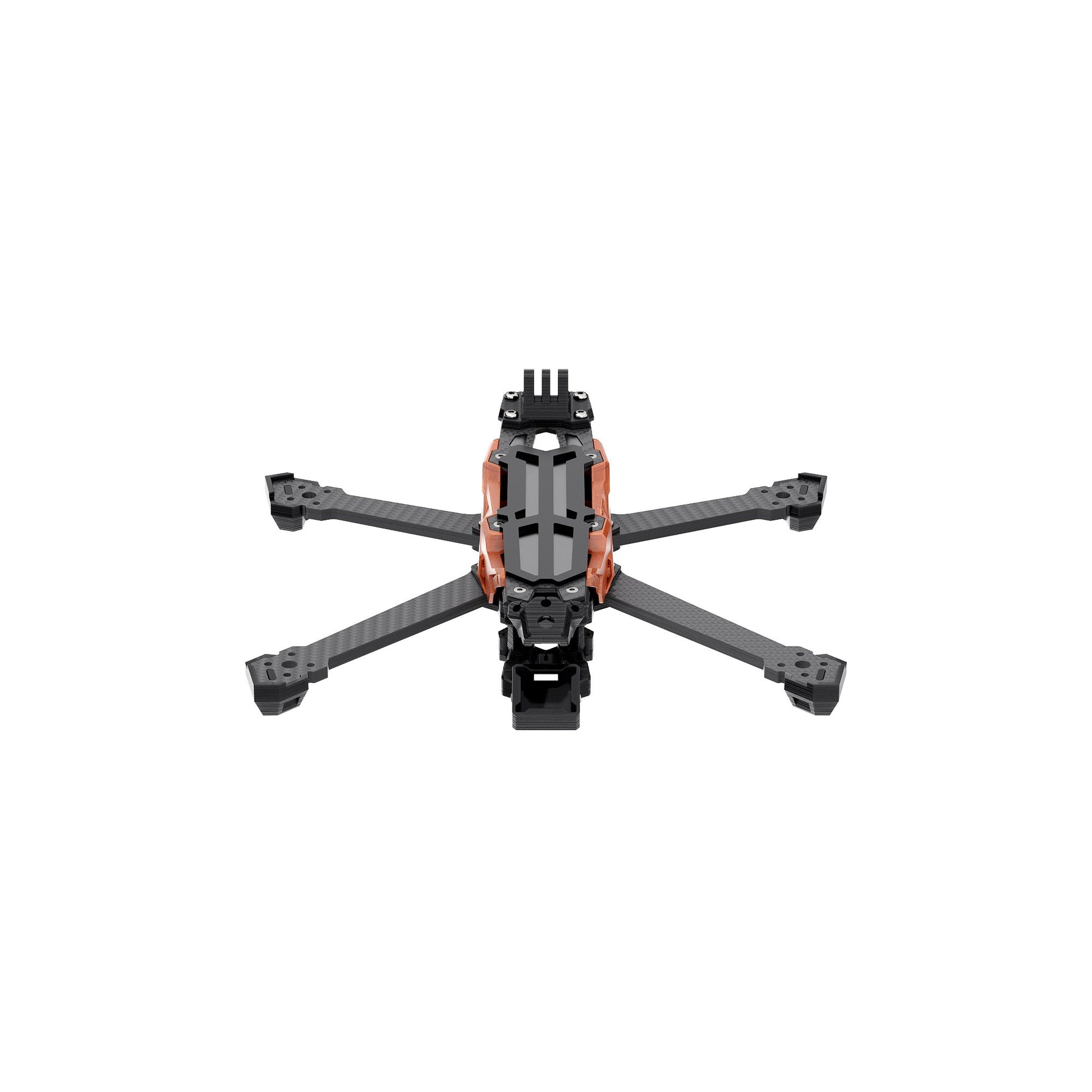

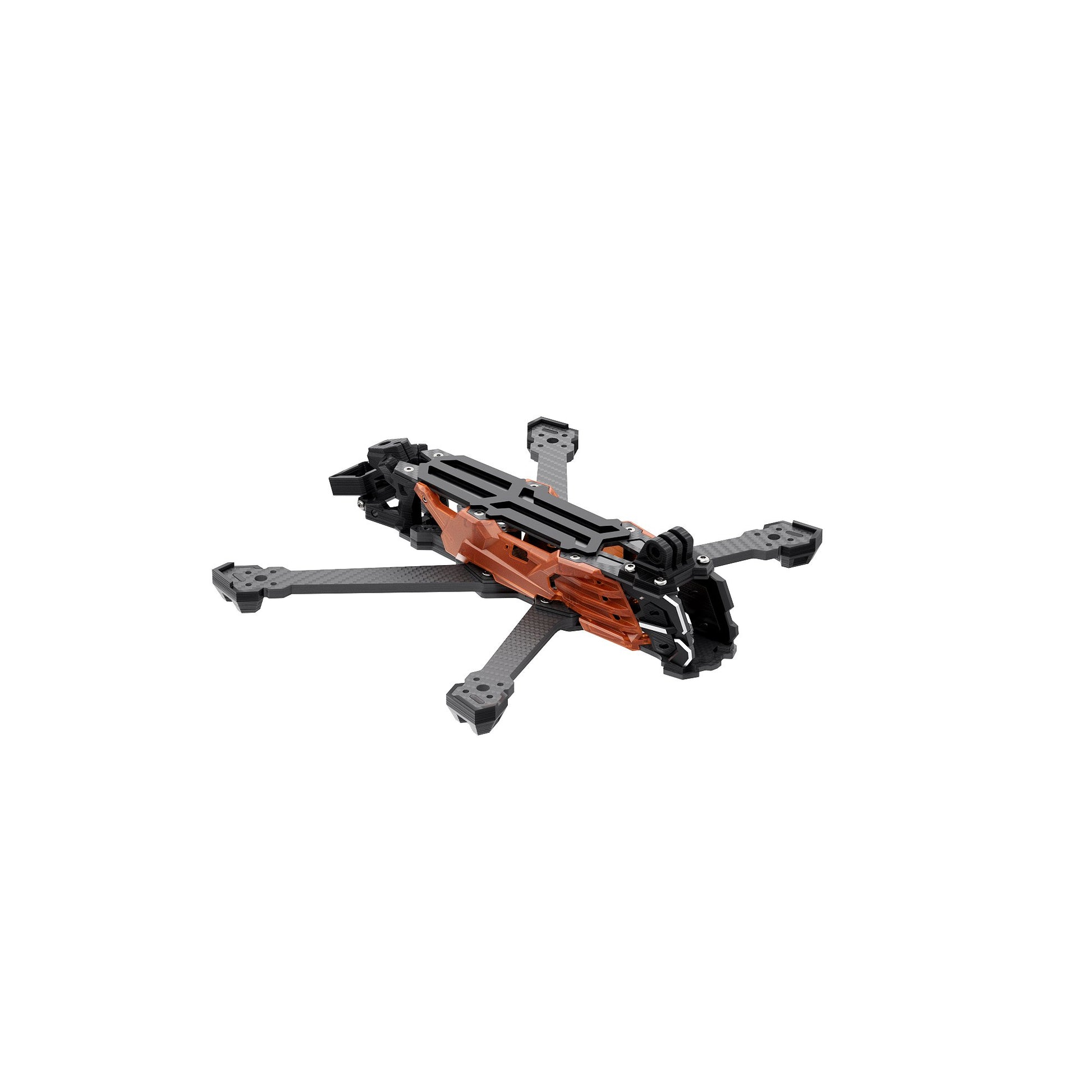

GEPRC Vapor-D6 O4 Pro Frame

Description

     The GEPRC Vapor-D O4 Pro frame is designed for the DJI O4 Air Unit Pro.
It features redesigned aluminum camera mounts and vibration-damping silicone for better compatibility and reduced resonance.
The sleek side panels highlight its mech-inspired design.
With a DC structure, it provides interference-free footage and smooth flight. Built from high-strength carbon fiber, it’s lightweight, durable, and performs reliably in all conditions.
The GEP-Vapor-D O4 Pro ensures clean footage and dependable flight for aerial filming.

Features

• 5mm wide carbon fiber arms for better rigidity and durability.
• Dual protection with camera guard side panels and a front lip design for better impact resistance.
• Available in both 5-inch and 6-inch options to cater to every pilot’s flying preferences.
• Quick-release design for easy repairs and maintenance.
• Redesigned aluminum lens mount, perfectly matched to the O4 Pro VTX.
• New mech-inspired side panels with a bold, sharp design.
• Rear antenna mount supports both the original O4 Pro antenna and SMA adapters.
• Clear footage with no prop in view and agile flight with DC frame.

D6 Specifications

• Model: GEP-Vapor-D6 O4 Pro Frame
• Wheelbase: 274.6mm
• Top Plate Thickness: 2.0mm
• Middle Plate Thickness: 2.0mm
• Arm Thickness: 5.0mm
• Bottom Plate Thickness: 2.5mm
• FC Mounting Hole Size: 20x20mm / 30.5×30.5mm
• VTX Mounting Hole Size: 20x20mm / 25x25mm / 30.5×30.5mm
• Motor Mounting Hole Size: 16x16mm
• Camera Mounting Hole Size: 19mm / 20mm
• Recommended Propeller: 6-inch
• Weight: 224±5g

D6 Includes

• 1 x GEP-Vapor-D6 O4 Pro Frame
• 2 x M20*250mm battery straps
• 2 x Battery Silicone Pads
• 1 x Set of screws
• 1 x Printouts pack
• 1 x L-shaped screwdriver (1.5mm)
• 1 x L-shaped screwdriver (2mm)
• 1 x L-shaped screwdriver (3mm)
• 1 x M8 wrench
