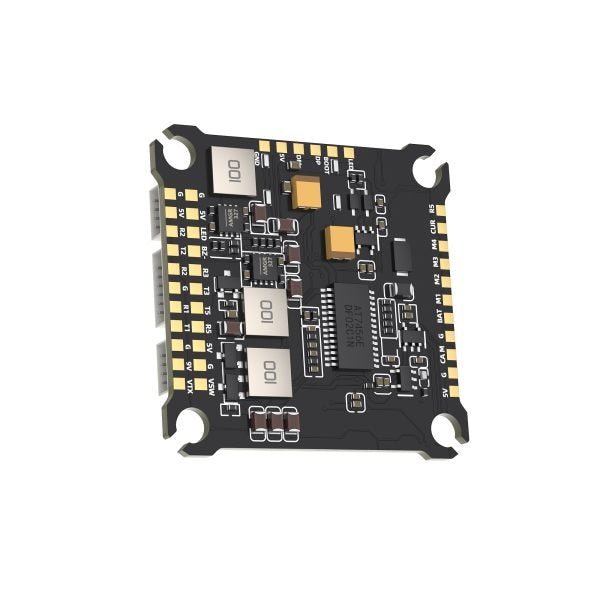

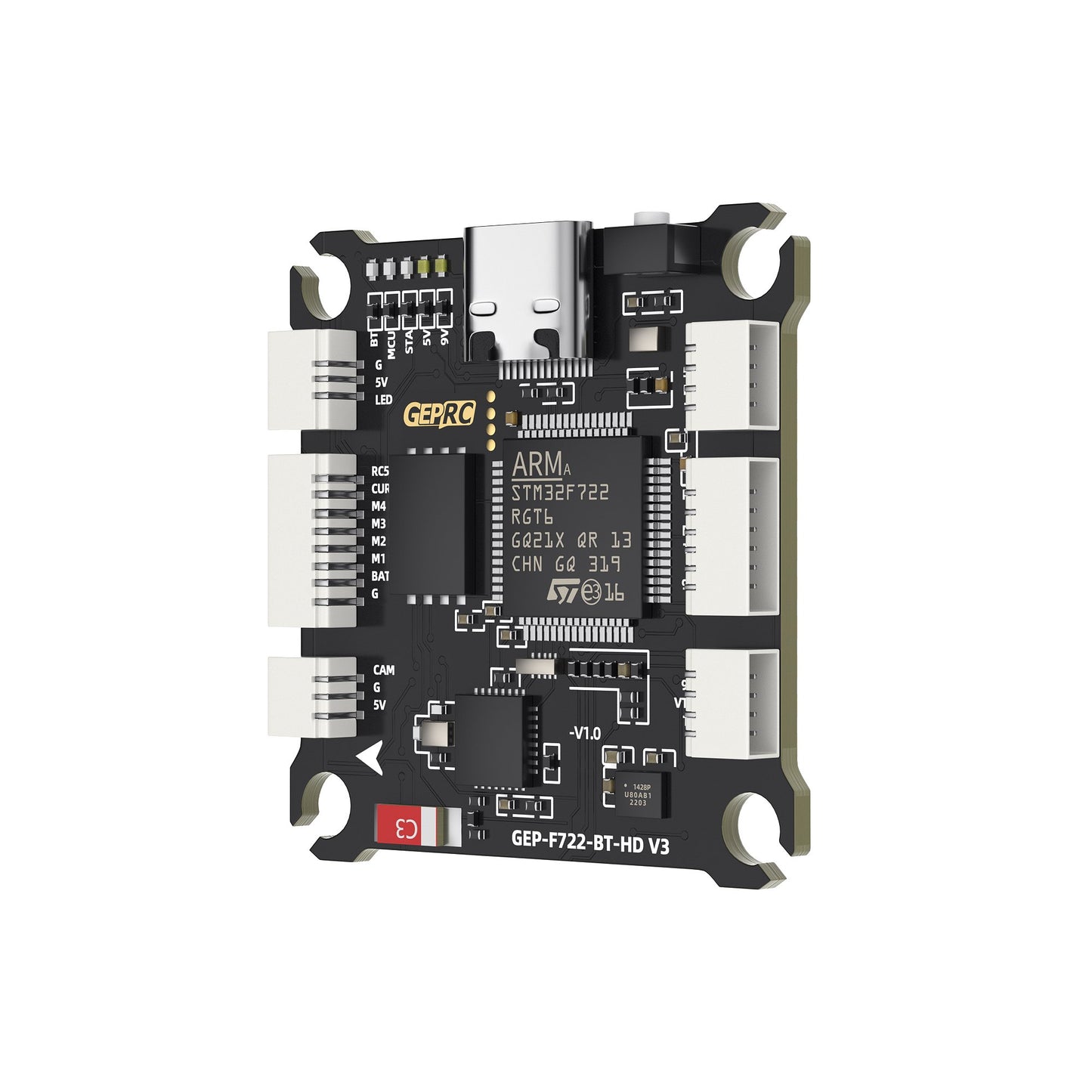

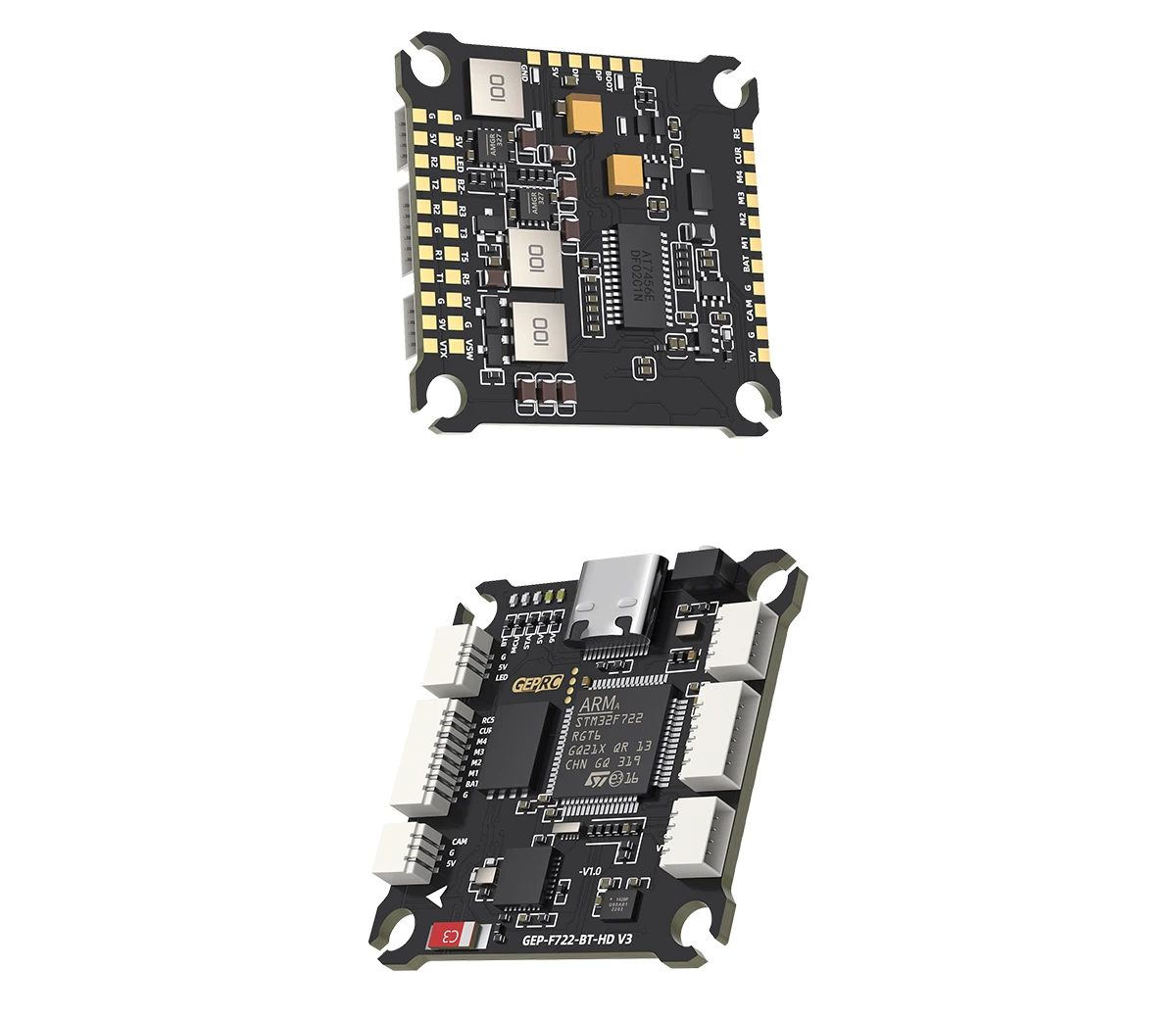

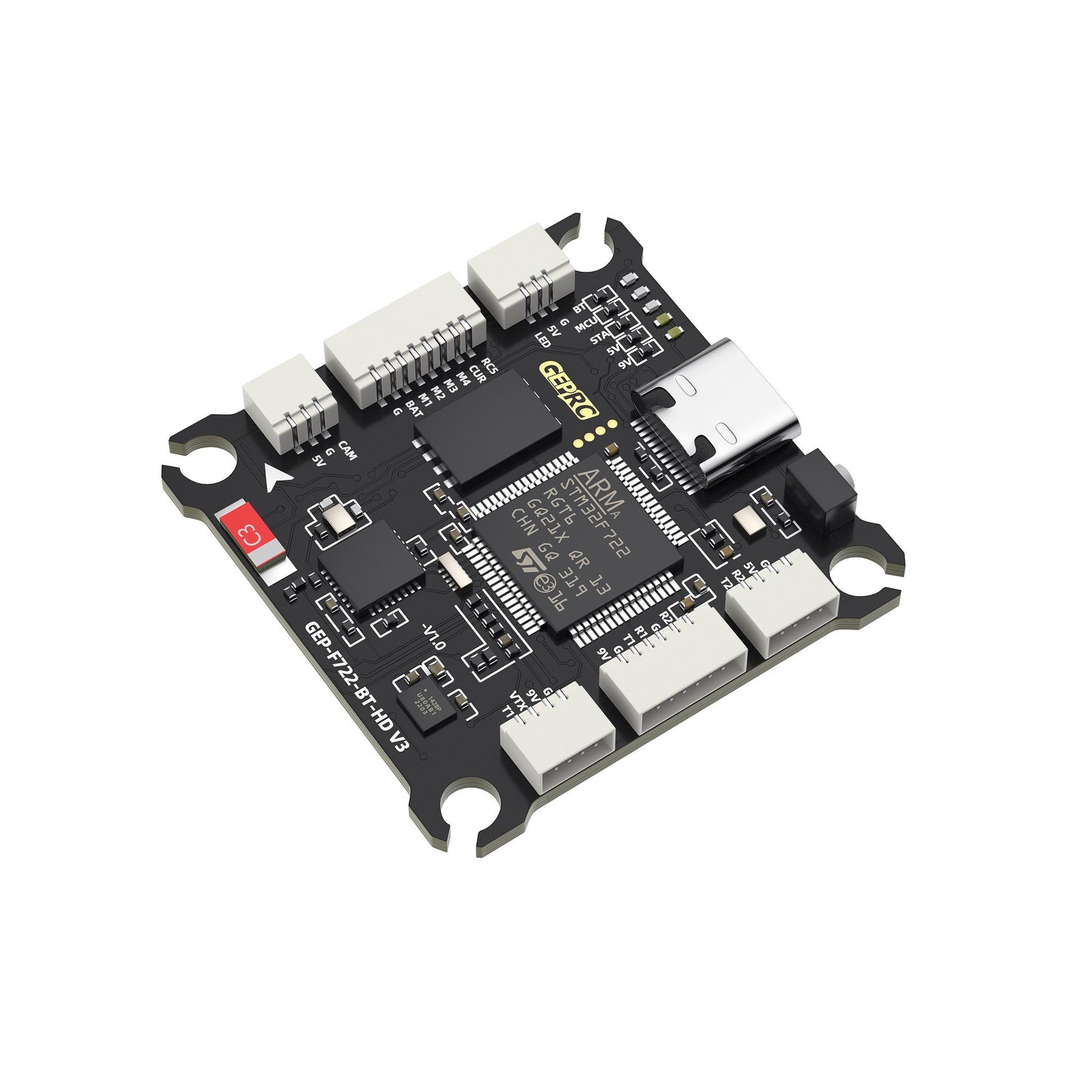

GEPRC TAKER F722 HD Flight Controller - DJI Ready (30x30)

Description

The Modern Brain for HD Builds.

Upgrade your drone with the GEPRC TAKER F722 FC. Designed for seamless integration with digital video systems, it features a dedicated 6-pin connector for the DJI Air Unit. With 16MB of onboard Blackbox memory and the latest Gyro technology, tuning your quad has never been easier.

Why Choose TAKER F722?

• Fast Processor: STM32F722 MCU ensures low loop times.

• Clean Video: Onboard 9V/2.5A BEC powers your DJI unit reliably.

• Blackbox: 16MB Flash for logging flight data.

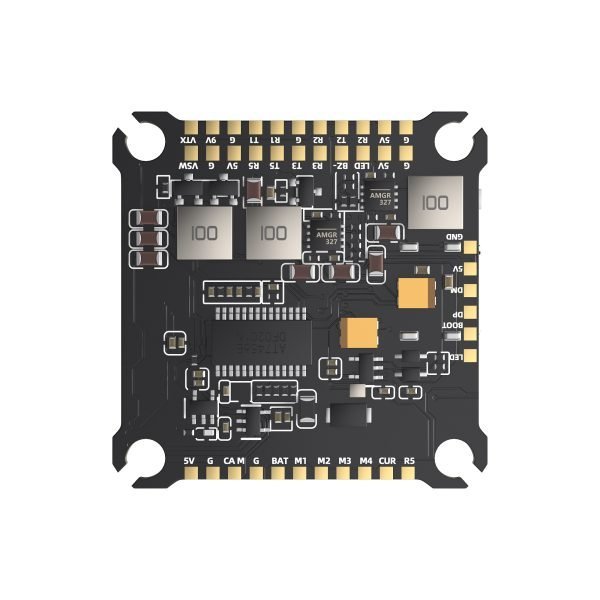

• User Friendly: Clearly labeled solder pads.

Tech Data:

• MCU: STM32F722RET6

• IMU: ICM42688P

• OSD: Betaflight OSD w/AT7456E chip

• Mounting: 30.5 x 30.5mm

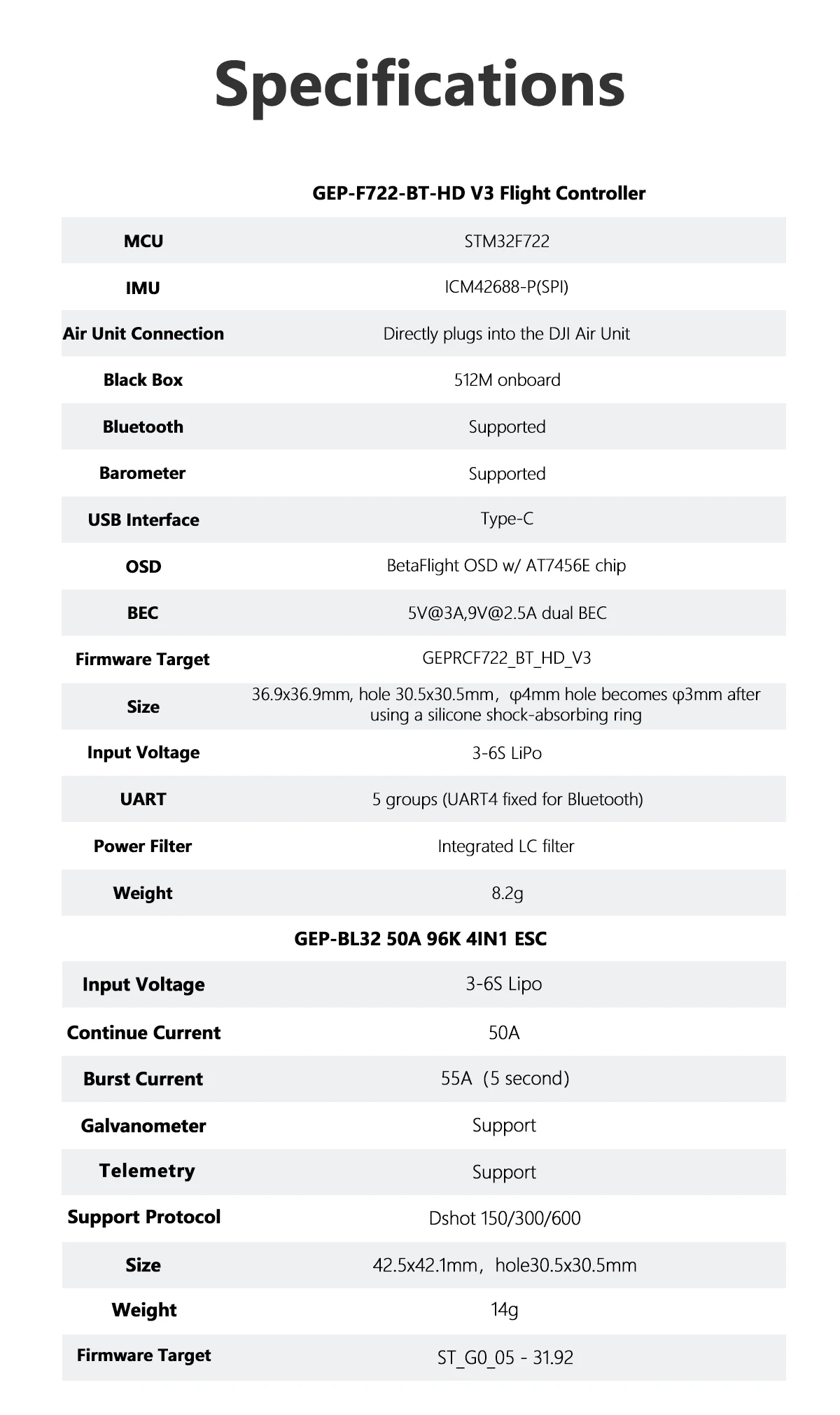

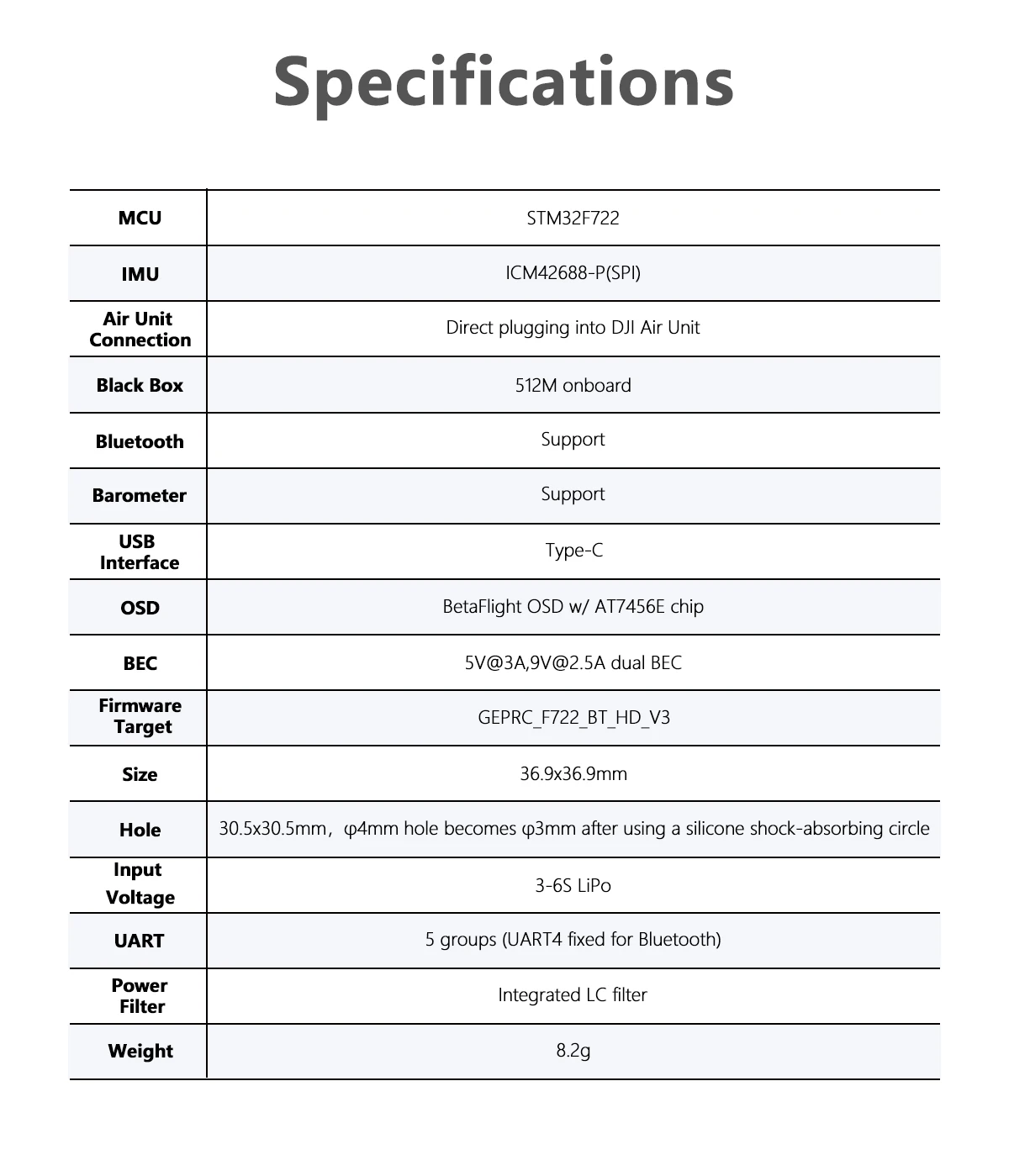

Specifications

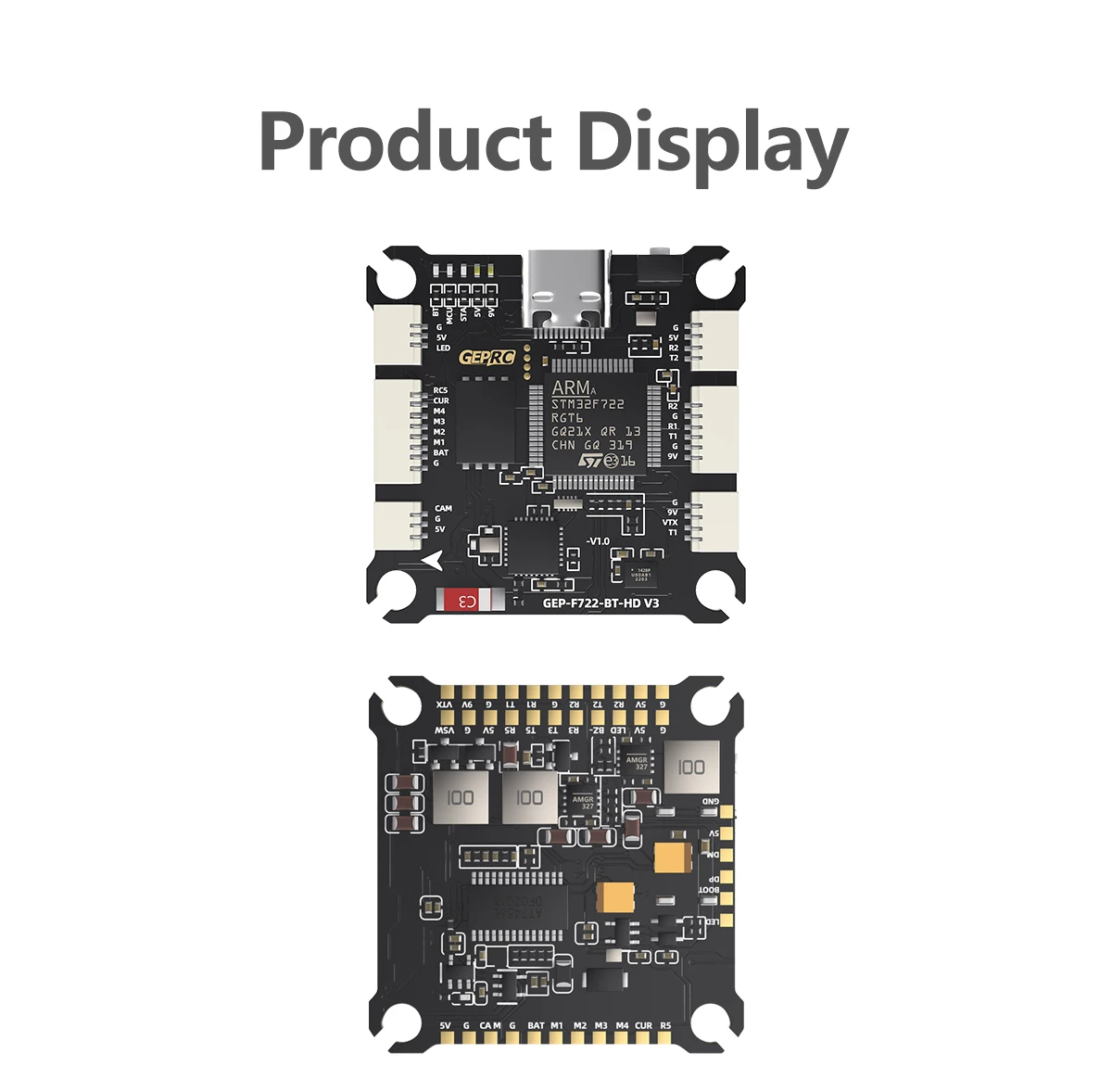

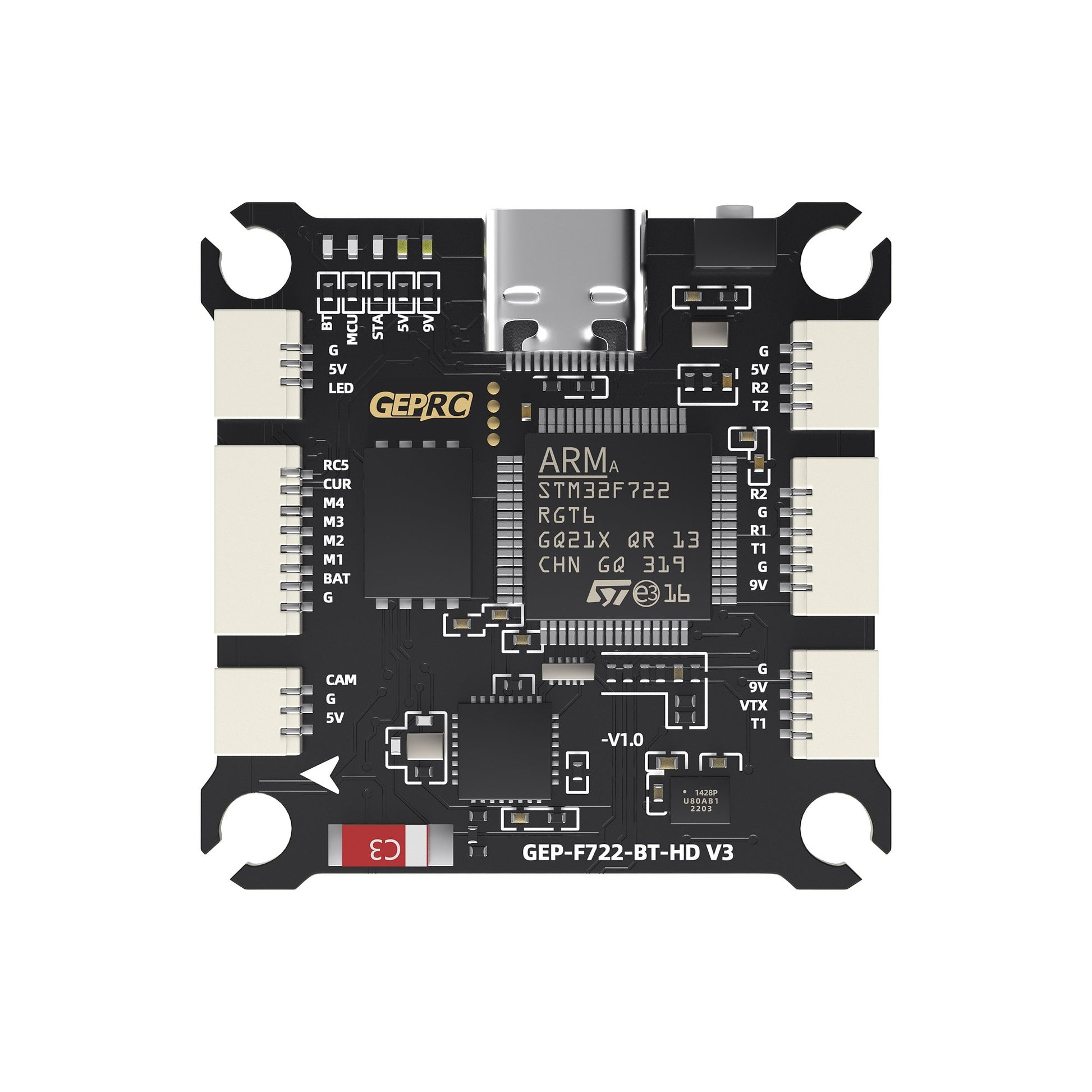

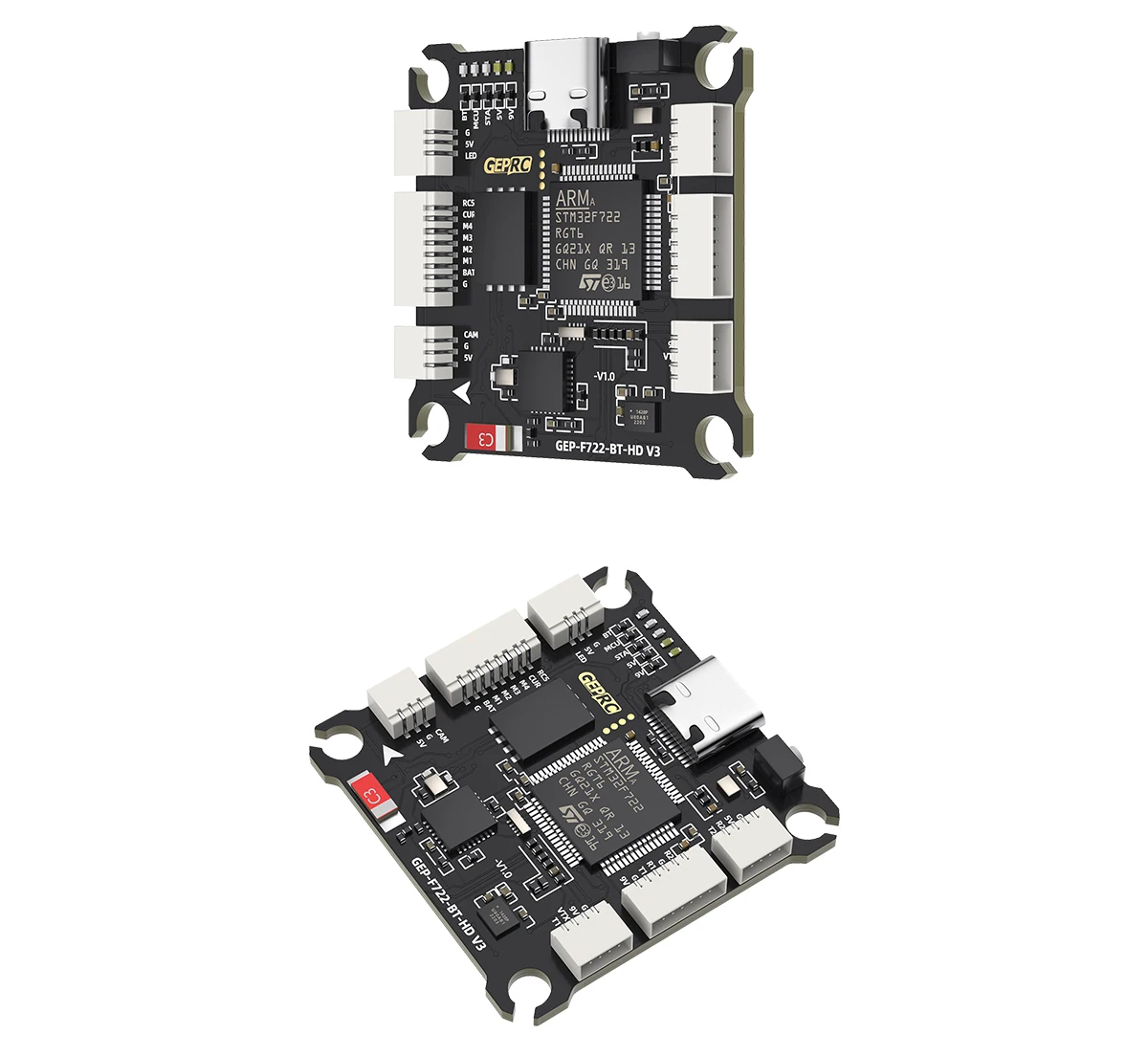

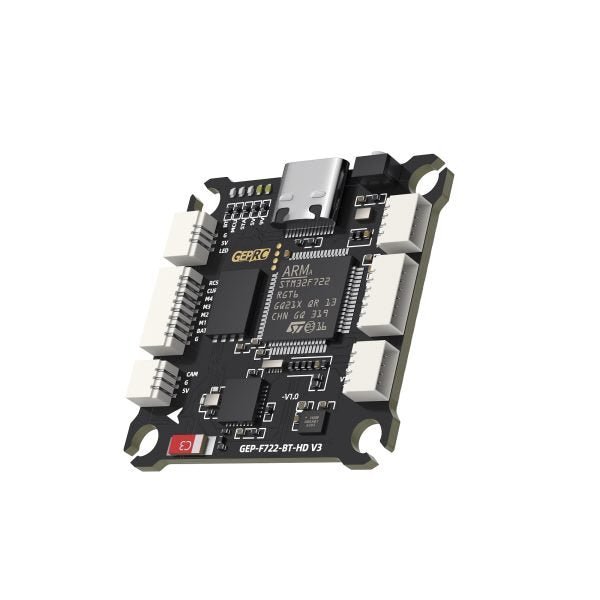

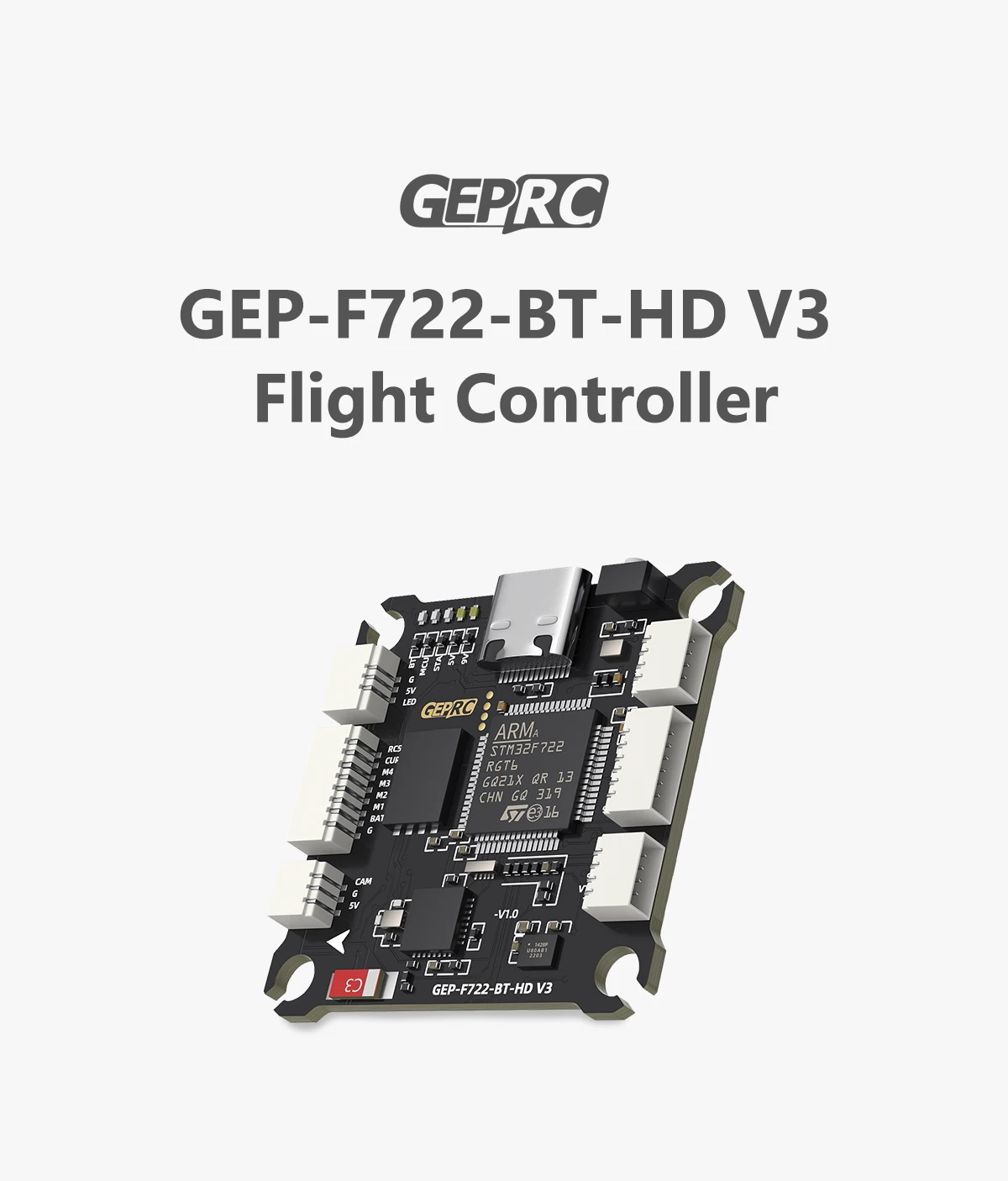

GEP-F722-BT-HD V3 Flight Controller

• MCU: STM32F722

• IMU：ICM42688-P(SPI)

• Air Unit Connection: Directly plugs into the DJI Air Unit

• Black Box: 512M onboard

• Bluetooth: Supported

• Barometer: Supported

• USB Interface: Type-C

• OSD: BetaFlight OSD w/ AT7456E chip

• BEC: 5V@3A, 9V@2.5A dual BEC

• Firmware Target: GEPRCF722_BT_HD_V3

• Size: 36.9×36.9mm, hole: 30.5×30.5mm, φ4mm hole becomes φ3mm after using a silicone shock-absorbing ring

• Input Voltage: 3-6S LiPo

• UART: 5 groups (UART4 fixed for Bluetooth)

• Power Filter: Integrated LC filter

• Weight: 8.2g

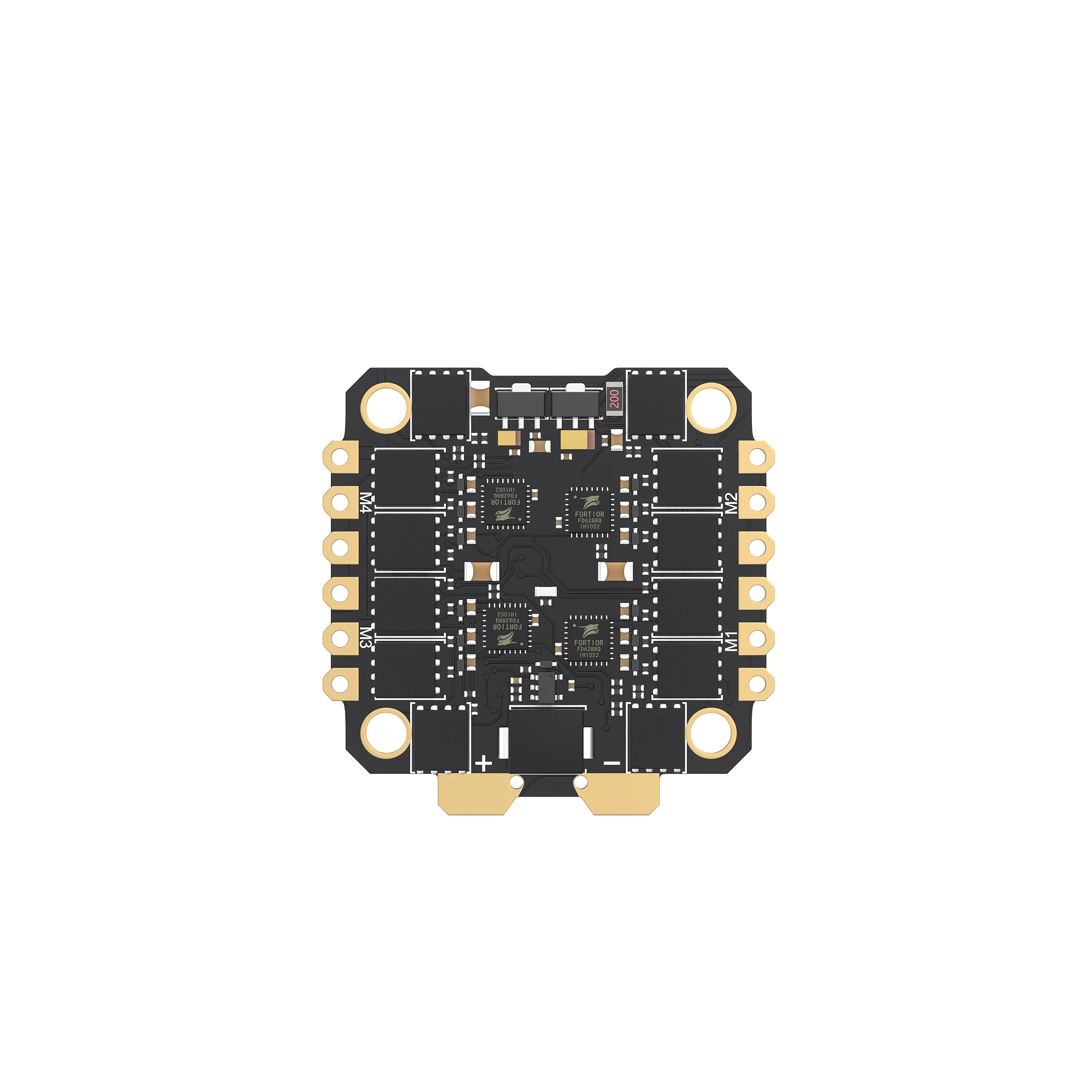

GEP-BL32 50A 96K 4IN1 ESC

• Model: GEP-BL32 50A 96K 4IN1 ESC

• Input Voltage: 3-6S Lipo

• Continue Current：50A

• Burst Current: 55A (5 second)

• Galvanometer：Support

• Telemetry: Support

• Support Protocol: Dshot 150/300/600

• Size：42.5×42.1mm，hole30.5×30.5mm

• Weight：14g

• Target: ST_G0_05 – 31.92
