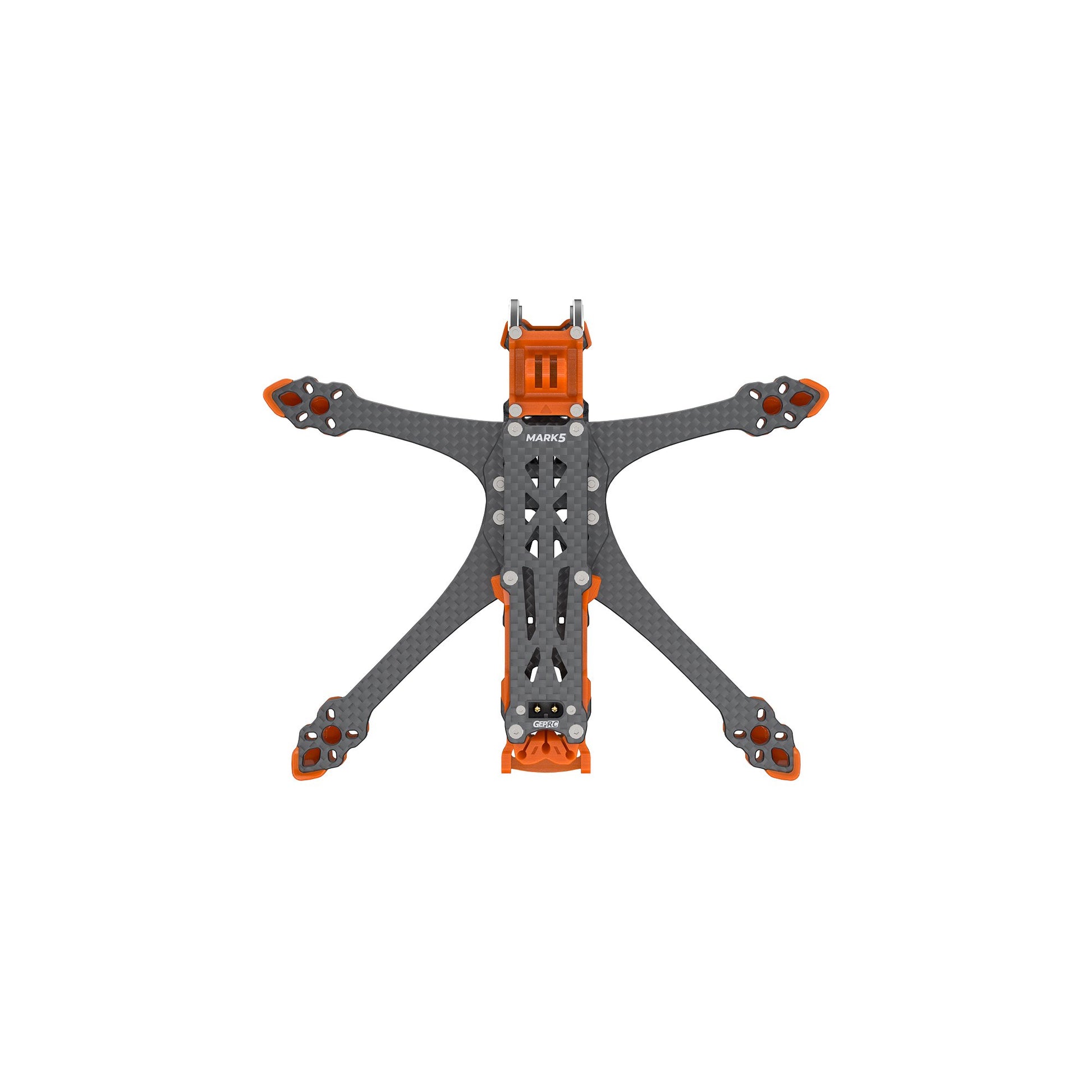

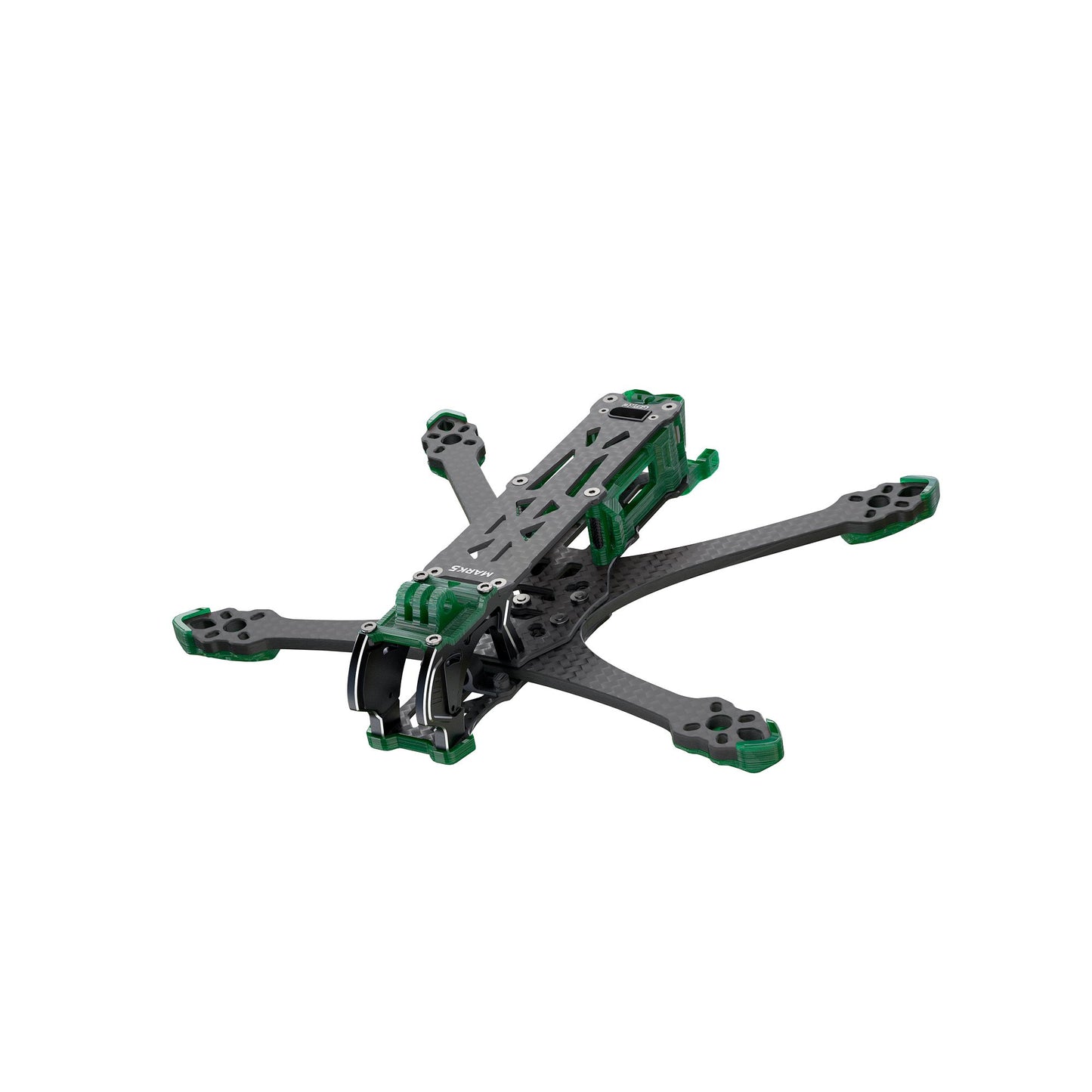

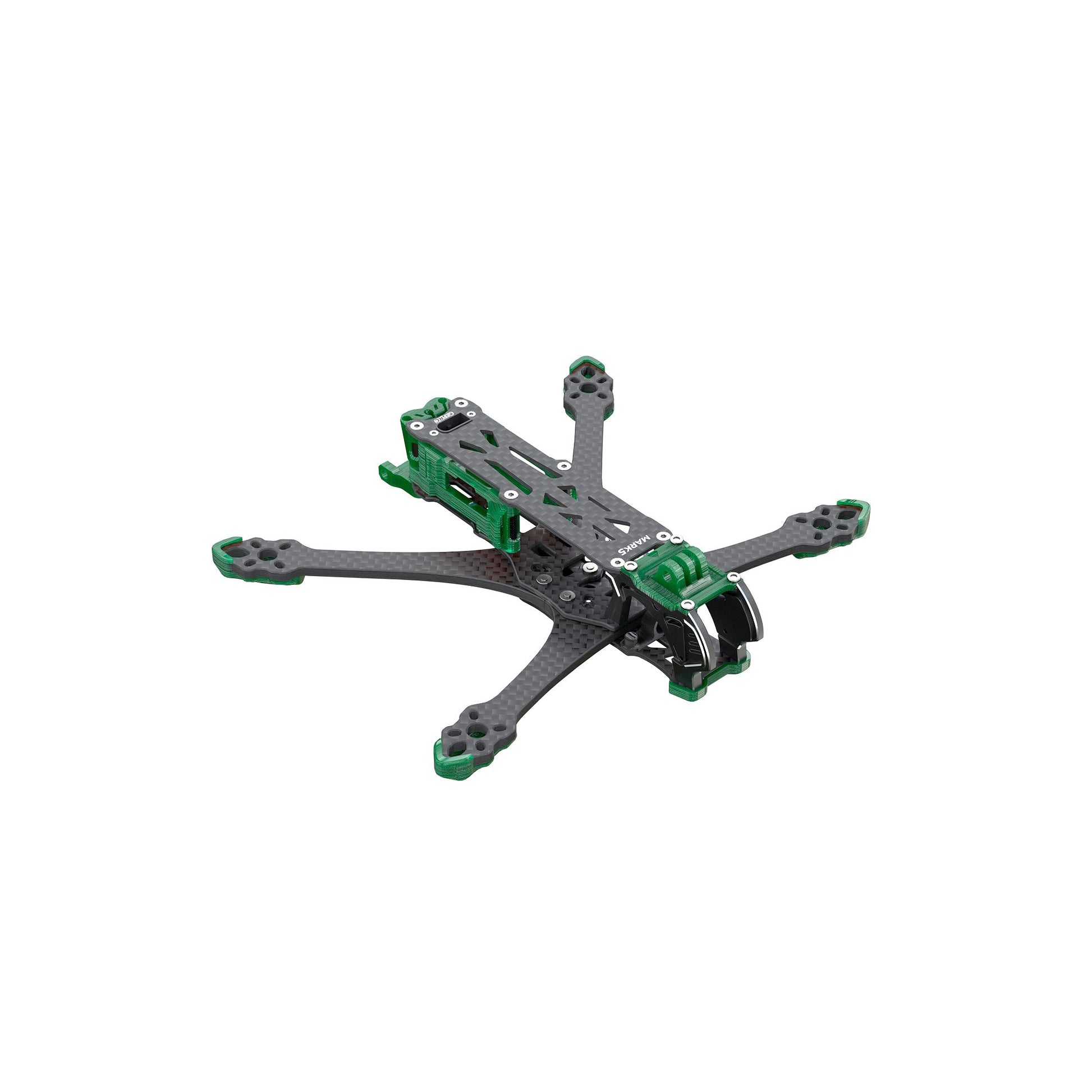

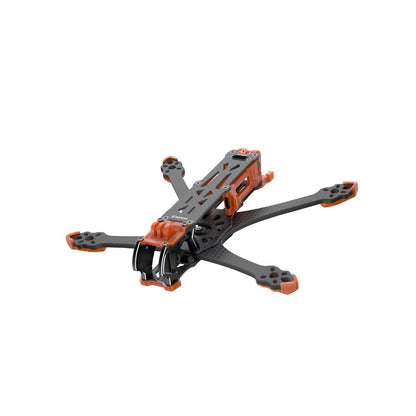

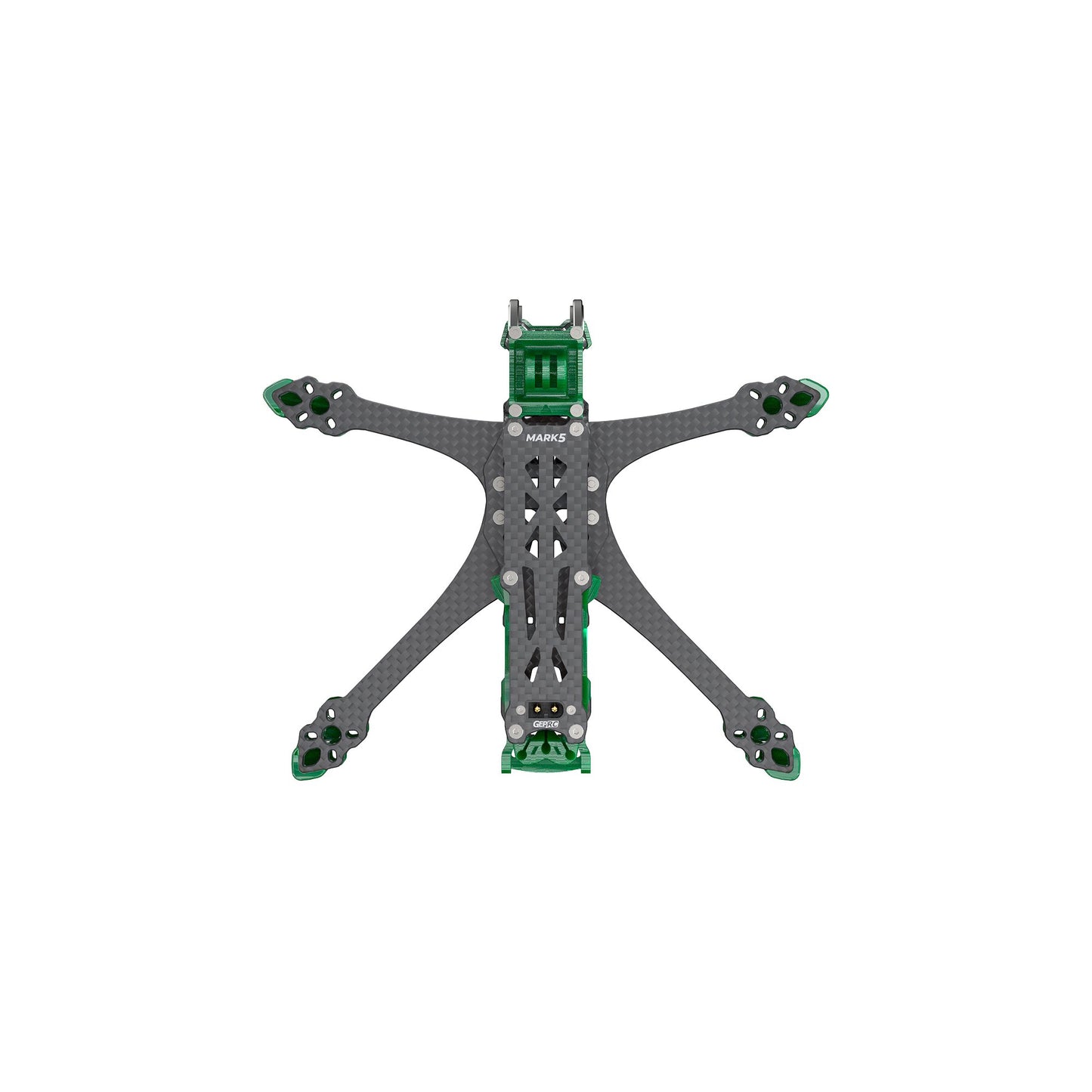

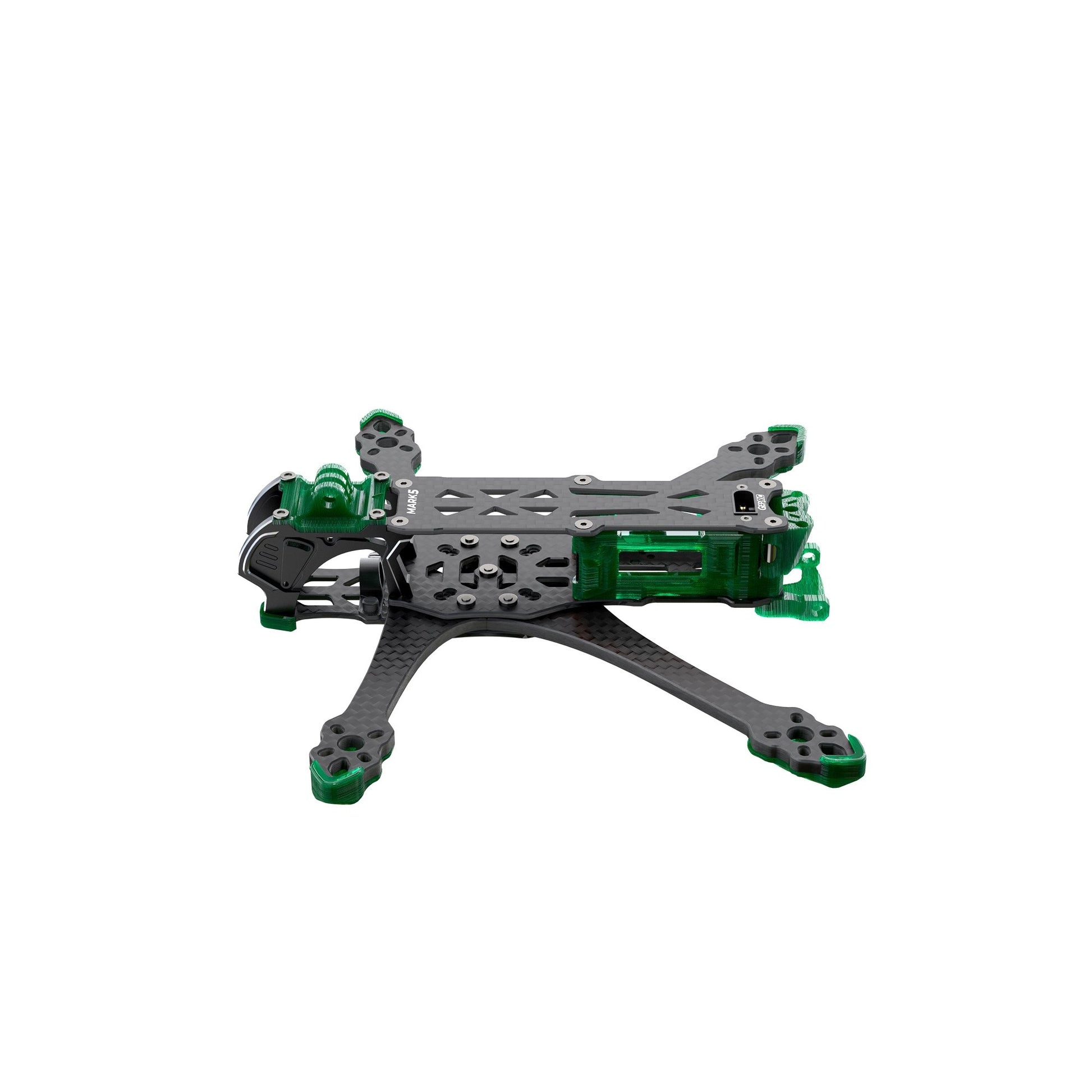

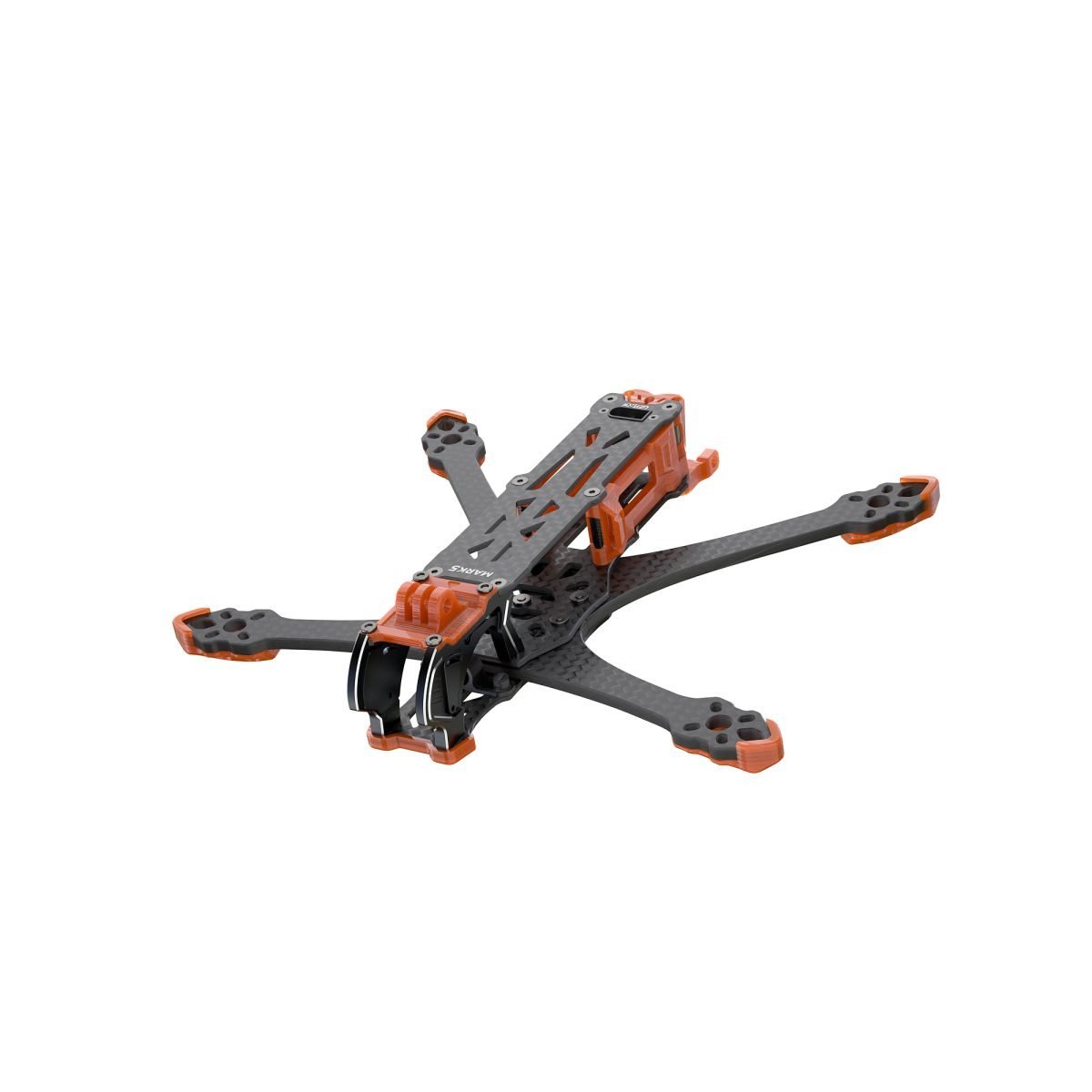

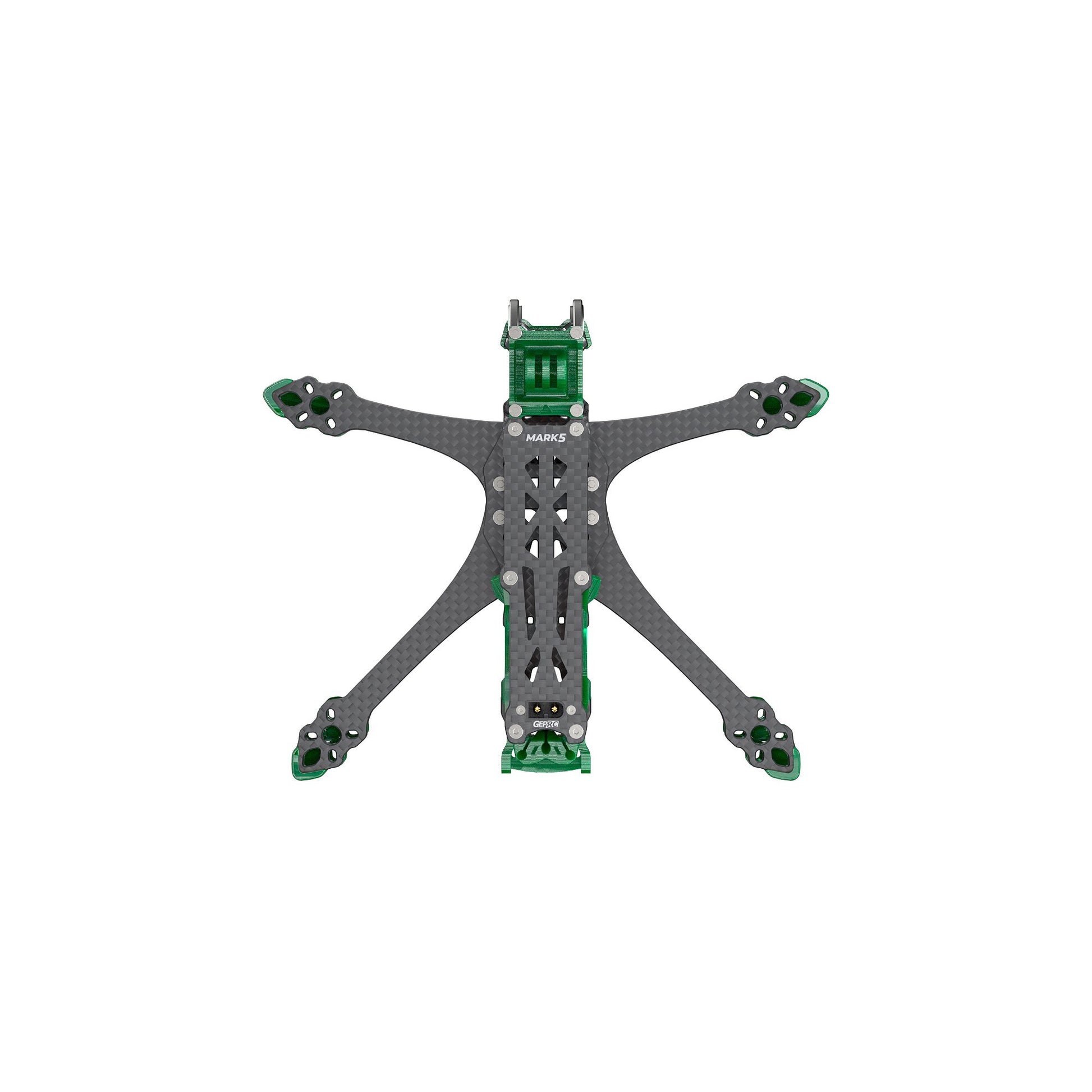

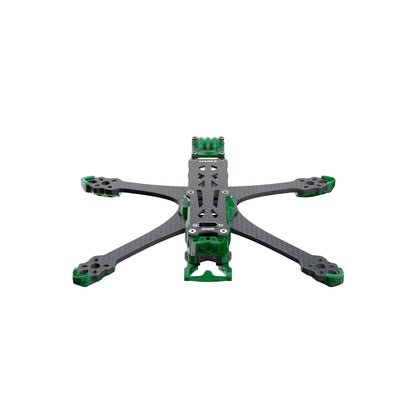

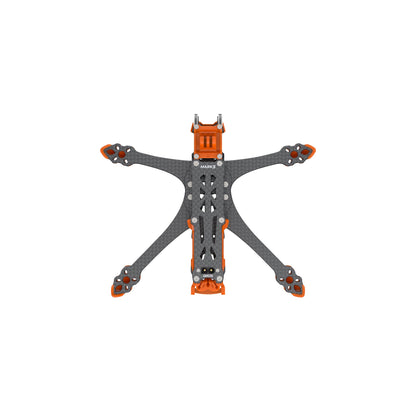

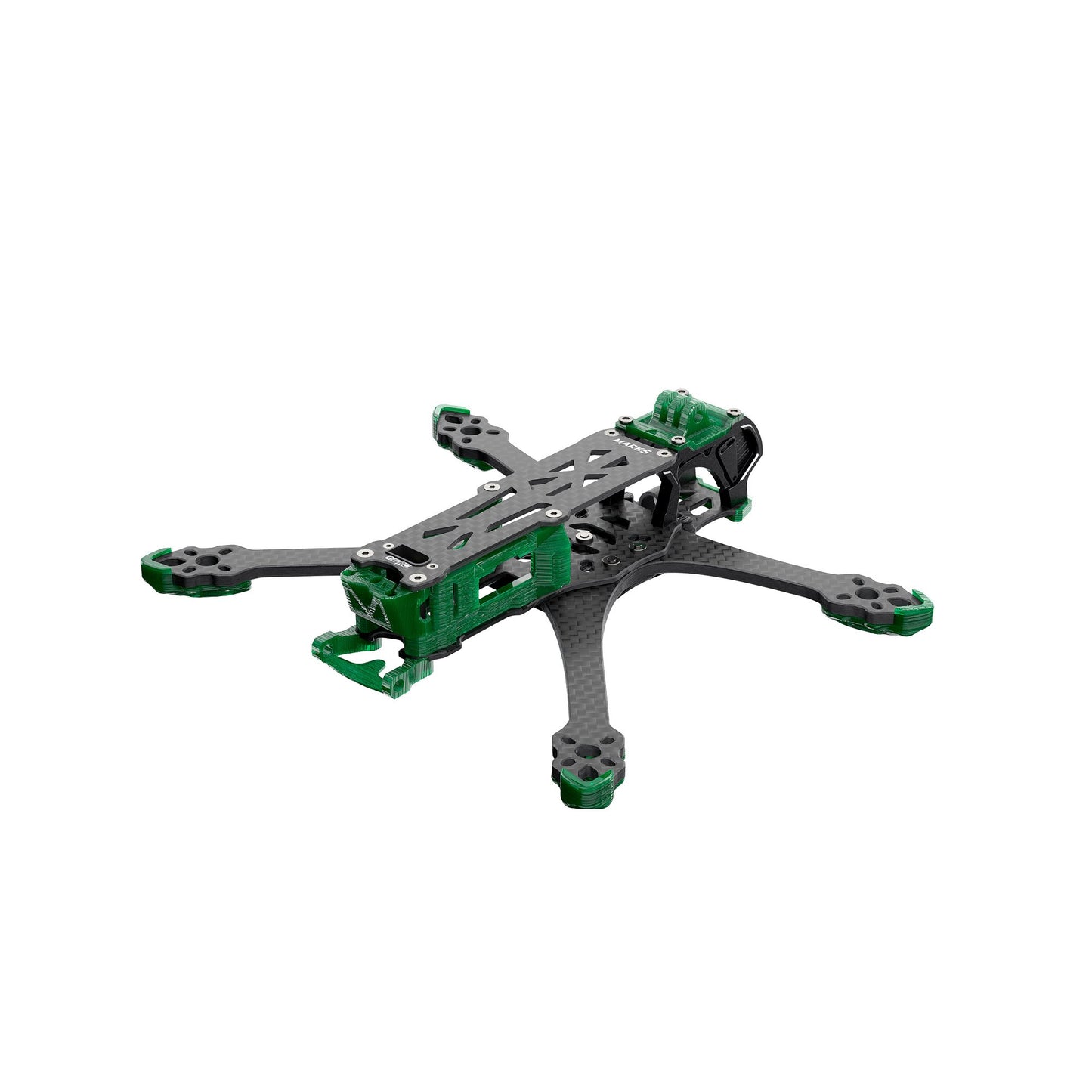

GEPRC Mark5 Pro DC Frame

Description

   The ultimate cinematic freestyle frame. The GEPRC Mark 5 Pro (DeadCat edition) is engineered specifically to provide a clean, obstruction-free field of view for your HD camera. By sweeping the front arms back, the "DeadCat" geometry ensures that no propellers appear in your DJI O3 or GoPro footage, even during high-speed cruising. It features GEPRC's signature 7075 aviation aluminum alloy camera plates for maximum impact protection.

The GEPRC MARK5 O4 Pro frame is designed specifically for the DJI O4 Air Unit Pro.
It features a redesigned camera mount and custom shock-absorbing silicone, improving compatibility and vibration resistance for a more stable flight experience.

Features

• Optimized for DJI O4 Air Unit Pro, offering enhanced compatibility.
• DC and wide X shapes, fit for a variety of flying situations.
• Two TPU camera mounts, compatible with all action cameras.
• Quick-release arms with just two screws for easy swapping.
• 3K carbon fiber frame that is lighter, stronger, and more durable.

DC Specifications

• Model: GEP-MK5 O4 Pro DC  Frame
• Wheelbase: 230mm
• Weight: 197.0g ± 10g
• Color: emerald green / coral orange
• Top Plate Thickness: 2.5mm
• Arm Thickness: 5.0mm
• Bottom Plate Thickness: 2.5mm
• FC Mounting Pattern: 30.5mm * 30.5mm
• VTX Mounting Pattern: 20mm * 20mm / 25.5mm * 25.5mm / 30.5mm * 30.5mm
• Motor Mounting Pattern: 16mm * 16mm / 19mm * 19mm
• Camera Mounting Pattern: 20mm
• Recommended Prop：5-inch

Includes

• 1 x GEP-MK5 O4 Pro Frame
• 1 x 15*250mm heavy-duty Velcro straps
• 2 x Battery anti-slip pads
• 1 x 3D printouts pack
• 2 x 20*250mm rubber anti-slip straps
• 1 x L-shaped screwdriver 1.5mm
• 1 x L-shaped screwdriver 2mm
• 1 x L-shaped screwdriver 3mm
• 1 x M8 wench
• 1 x Screw pack
