Foxeer Reaper Extreme 3W 4.9-6GHz VTX
Foxeer Reaper Extreme 3W 4.9-6GHz VTX
Couldn't load pickup availability
"Shipping & Returns"
"Shipping & Returns"
"Free Shipping to USA (8-15 days)"
" Order Tracking Info "
" Order Tracking Info "
Stay Updated Every Step of the Way.
Once your order is processed (usually within 1-3 business days), you will automatically receive a specific Tracking Number via email.
You can use this number to track your package directly on our website's "Track Your Order" page to see exactly where your items are in real-time.
Note: Sometimes it takes 24-48 hours for the carrier to update the tracking status after the label is created.
''🛡️30-Day Returns''
''🛡️30-Day Returns''
" 🔒 Secure Pay "
" 🔒 Secure Pay "
" 👨✈️ 24/7 Expert Pilot Support "
" 👨✈️ 24/7 Expert Pilot Support "

Description
| Name | Reaper Extreme 3W V2 |
| Input Voltage | 9~36V |
| Output Voltage | 5V |
| Channels | 80CH |
| Power | 25mW/200mW/500mW/1.5W/3W |
| Pit | Double click to enter |
| Fan | Yes |
| Weight | 15.2g |
| Size | 38*29.2*11.5mm |
| Consumption | 1.4A/10V |
| Package Includes | 1 x VTx; 1 x silicon cable; |
| Band | CH1 | CH2 | CH3 | CH4 | CH5 | CH6 | CH7 | CH8 |
| Band A | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| Band B | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| Band E | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| Band F | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| Band R | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
| Band H | 5653 | 5693 | 5733 | 5773 | 5813 | 5853 | 5893 | 5933 |
| Band L | 5333 | 5373 | 5413 | 5453 | 5493 | 5533 | 5573 | 5613 |
| Band U | 5325 | 5348 | 5366 | 5384 | 5402 | 5420 | 5438 | 5456 |
| Band O | 5474 | 5492 | 5510 | 5528 | 5546 | 5564 | 5582 | 5600 |
| Band X | 4990 | 5020 | 5050 | 5080 | 5110 | 5140 | 5170 | 5200 |
PIT On/Off:

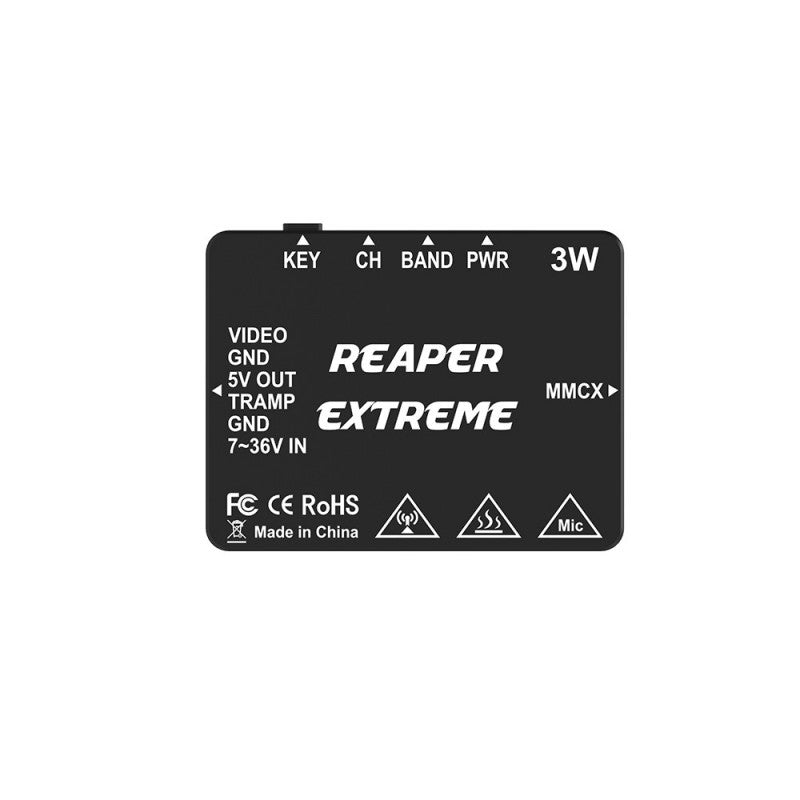

Double-click the "KEY" button to turn on/off the PIT Mode. Red LED (PWR) off, PIT mode on; Red LED (PWR) on,PIT mode off.
Note:If tramp cable is connected, button will not work, can not adjust frequency and power, controller will take over.
BetaFlight only can accept 64 channels at most, so need to remove 2 bands before input to BetaFlight.
