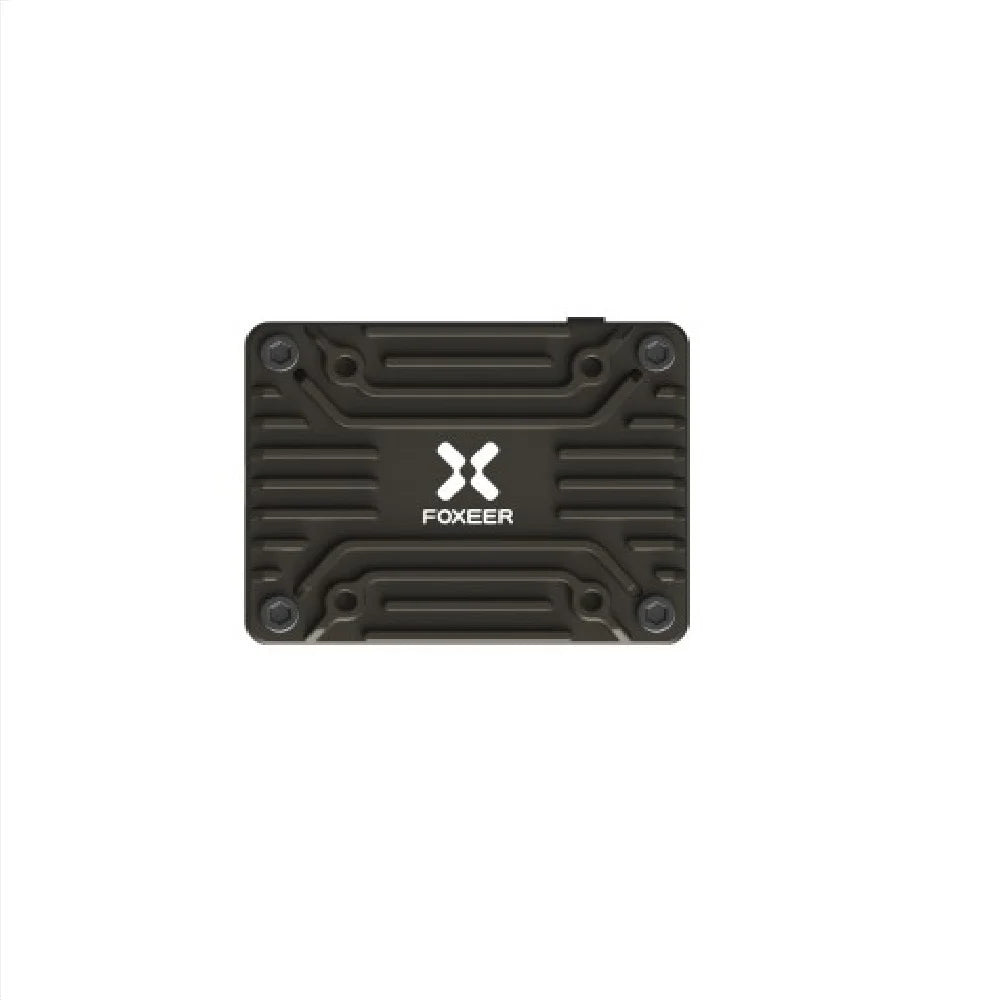

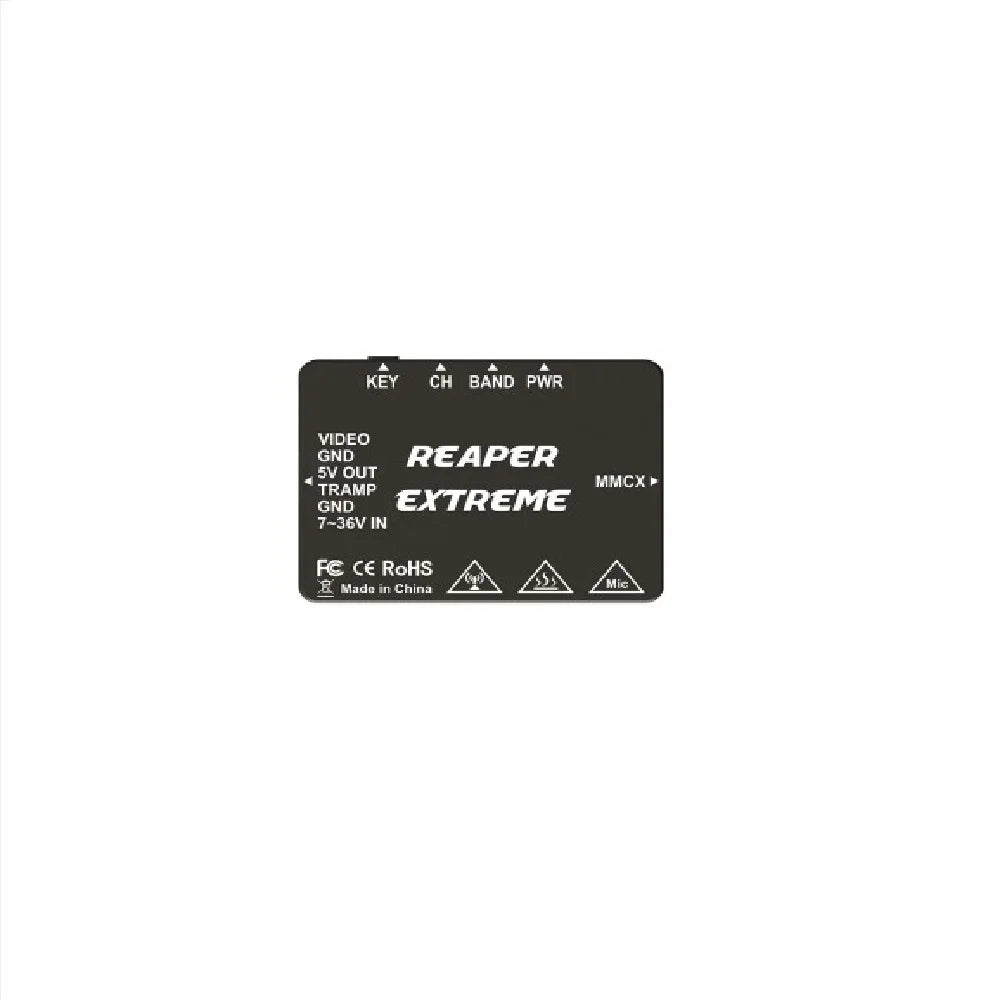

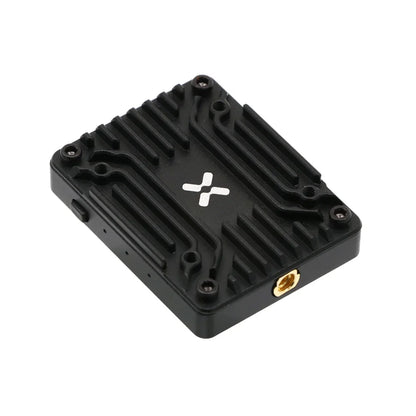

Foxeer Reaper Extreme 2.5W 5.8GHz VTX

Name: Foxeer Reaper Extreme 2.5W 5.8GHz VTX
Brand: Foxeer
Price: 71.99 USD
Availability: OutOfStock

$71.99 USD

~~$87.99 USD~~ $71.99 USD

Sale Sold out

Shipping calculated at checkout.

"Shipping & Returns"

"Free Shipping to USA (8-15 days)"

" Order Tracking Info "

Stay Updated Every Step of the Way.

Once your order is processed (usually within 1-3 business days), you will automatically receive a specific Tracking Number via email.

You can use this number to track your package directly on our website's "Track Your Order" page to see exactly where your items are in real-time.

Note: Sometimes it takes 24-48 hours for the carrier to update the tracking status after the label is created.

''🛡️30-Day Returns''

" 🔒 Secure Pay "

" 👨‍✈️ 24/7 Expert Pilot Support "

View full details

Description

Name	Reaper Extreme V2
Input Voltage	9~36V
Output Voltage	5V
Channels	72CH
Power	25mW/200mW/500mW/1.5W/2.5W, red light flash 1/2/3/4/5 times correspondingly
Pit	Double click to enter
Weight	13g
Mounting Hole	20*20mm M2 2.8mm depth
Size	3627.58mm
Consumption	1.2A/9V
Package Includes	1 x VTx; 1 x silicon cable;

Band	CH1	CH2	CH3	CH4	CH5	CH6	CH7	CH8
Band A	5865	5845	5825	5805	5785	5765	5745	5725
Band B	5733	5752	5771	5790	5809	5828	5847	5866
Band E	5705	5685	5665	5645	5885	5905	5925	5945
Band F	5740	5760	5780	5800	5820	5840	5860	5880
Band R	5658	5695	5732	5769	5806	5843	5880	5917
Band H	5653	5693	5733	5773	5813	5853	5893	5933
Band L	5333	5373	5413	5453	5493	5533	5573	5613
Band U	5325	5348	5366	5384	5402	5420	5438	5456
Band O	5474	5492	5510	5528	5546	5564	5582	5600

Unlock the frequencies and power levels

Long press the "KEY" button until the Red LED (PWR) is constant on, off, then on again, release the button unlock the all frequencies and power levels, flashed Red LED means in unlocked status, constant Red LED means in locked status.

PIT Mode On/Off

Double-click the "KEY" button to turn on/off the PIT Mode. Red LED (PWR) off means PIT mode on; Red LED (PWR) on means PIT mode off。In PIT mode, VTx outpout extreme low power.

Note:

If tramp cable is connected, button will not work, can not adjust frequency and power, controller will take over.

BetaFlight only can accept 64 channels at most, so the O band is removed from the frequency table default.
