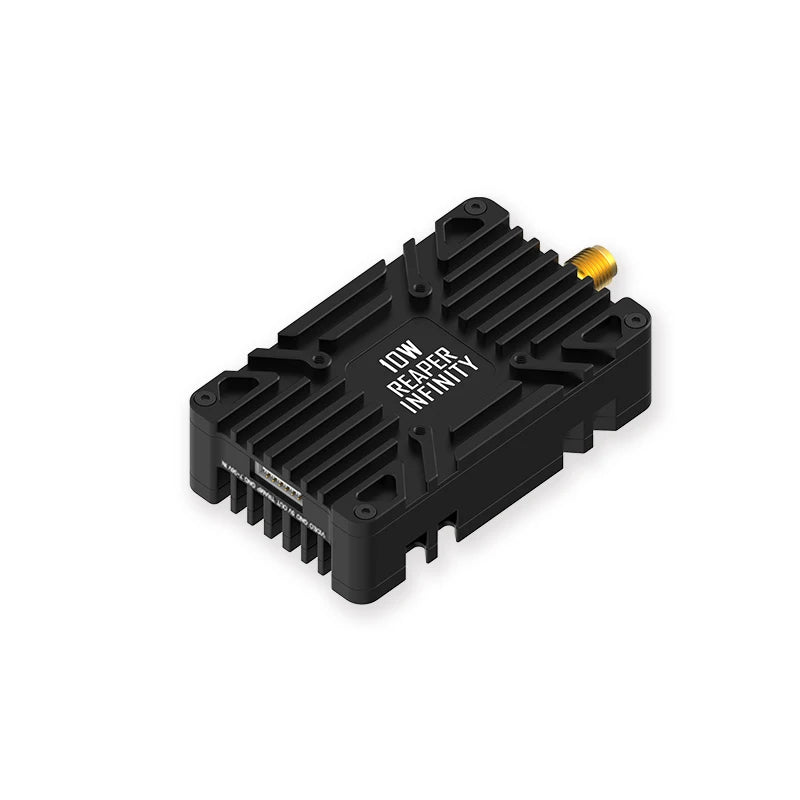

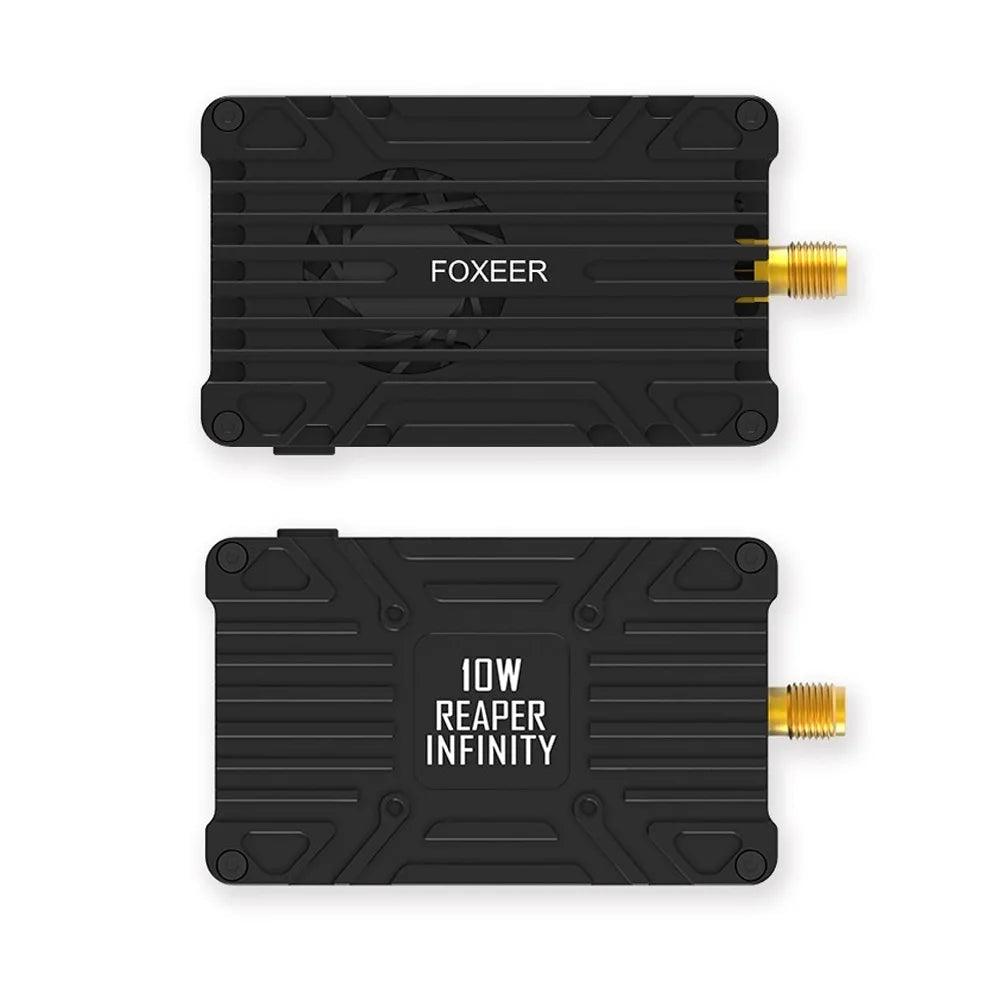

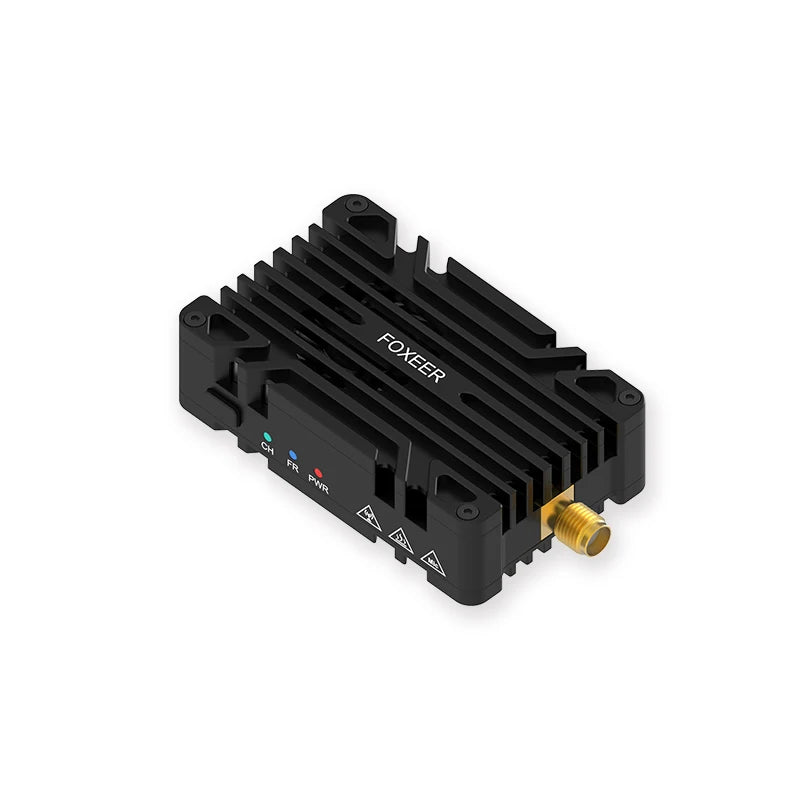

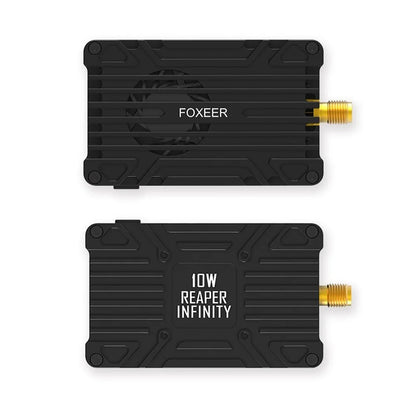

Foxeer 4.9-6GHz Reaper Infinity 10W High Power VTX

Foxeer 4.9-6GHz Reaper Infinity 10W High Power VTX

$186.99 USD
$208.99 USD $186.99 USD
Sale Sold out
Shipping calculated at checkout.

"Shipping & Returns"

"Free Shipping to USA (8-15 days)"

" Order Tracking Info "

Stay Updated Every Step of the Way.

Once your order is processed (usually within 1-3 business days), you will automatically receive a specific Tracking Number via email.

You can use this number to track your package directly on our website's "Track Your Order" page to see exactly where your items are in real-time.

Note: Sometimes it takes 24-48 hours for the carrier to update the tracking status after the label is created.

''🛡️30-Day Returns''

" 🔒 Secure Pay "

" 👨‍✈️ 24/7 Expert Pilot Support "

View full details

Description

    Limitless range. The Foxeer Infinity is an industrial-grade VTX capable of 5 Watts output power. Requires active airflow and is designed for specialized long-range missions where signal loss is not an option.

Adjust the power level and frequency: If the Tramp Rx pin cable on VTx is connected with FC, then the button doesn't work.

Name Reaper Infinity 10W
Input Voltage 9~36V
Output Voltage 5V
Channels 80CH
Power 1W/2.5W/5W/7.5W/10W
Pit Double click to enter
Weight 48g
Mounting Hole 20*20mm M2 with 2.5mm depth
Size 66*37*16mm
Connector SMA

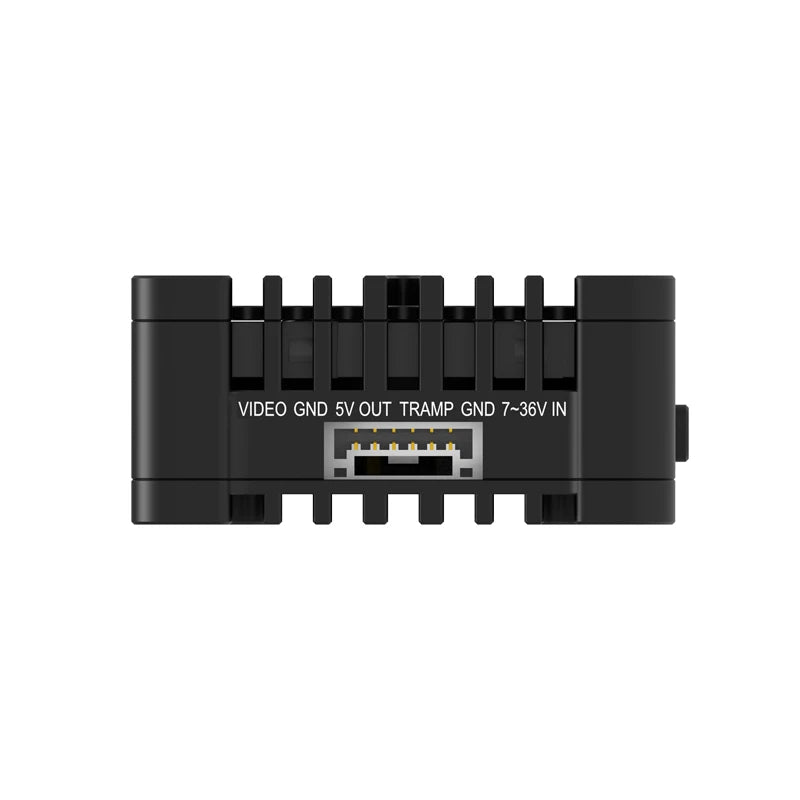

Cable Connector GH1.25  6P
Consumption 10V/3.3A & 20V/1.5A; 10W
Package Include 1 x VTx, 1 x silicon cable
Band CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8
Band A 5865 5845 5825 5805 5785 5765 5745 5725
Band B 5733 5752 5771 5790 5809 5828 5847 5866
Band E 5705 5685 5665 5645 5885 5905 5925 5945
Band F 5740 5760 5780 5800 5820 5840 5860 5880
Band R 5658 5695 5732 5769 5806 5843 5880 5917
Band H 5653 5693 5733 5773 5813 5853 5893 5933
Band L 5333 5373 5413 5453 5493 5533 5573 5613
Band U 5325 5348 5366 5384 5402 5420 5438 5456
Band O 5474 5492 5510 5528 5546 5564 5582 5600
Band X 4990 5020 5050 5080 5110 5140 5170 5200


PIT On/Off:

Double-click the "KEY" button to turn on/off the PIT Mode. Red LED (PWR) off, PIT mode on; Red LED (PWR) on,PIT mode off.

Note:

If tramp cable is connected, button will not work, can not adjust frequency and power, controller will take over.

BetaFlight only can accept 64 channels at most, so need to remove 2 bands before input to BetaFlight.
