For pilots who demand the absolute best image quality. The DJI O4 Pro Air Unit features a larger 1/1.3-inch sensor (similar to the Mini 4 Pro / Air 3), delivering superior low-light performance and richer colors compared to the standard version. Combined with the rock-solid O4 transmission, this is the ultimate setup for cinematic FPV and professional content creation.
The DJI O4 Air Unit Series marks a new leap in video transmission performance, delivering a cutting-edge digital video transmission solution with higher resolution, lower latency, and extended range. Weighing just 8.2 grams, the DJI O4 Air Unit features a 1/2-inch image sensor capable of capturing 4K/60fps video, offering both portability and versatility. Taking it a step further, the DJI O4 Air Unit Pro boasts an enhanced imaging capability with a 1/1.3-inch image sensor, capable of recording 4K/120fps video. It also supports impressive features such as 10-bit D-Log M color mode and a 155° ultra-wide FOV, capturing the vast expanse of the world in unparalleled detail.
The DJI O4 Air Unit Series is equipped with the DJI O4 video transmission system, achieving ultra-low latency for more responsive controls. Paired with the dual-antenna design of the DJI O4 Air Unit Pro, the max transmission distance can reach up to 15 kilometers, [2] and the system can automatically select the most stable frequency. Whether soaring over mountains and rivers or navigating indoor spaces, you can perform confidently and with precision.
Imaging
- 1/1.3-inch CMOS
- 4K/60fps, 4K/120fps Video
- 155° Ultra-Wide FOV
- 10-bit D-Log M Color Mode
Video Transmission
- O4 Video Transmission,
- Dual-Antenna Design
- 1080p/100fps H.265 Live View Quality
- 15ms Lowest Video Transmission Latency
- 15km Max Video Transmission Range
- 60Mbps Max Video Transmission Bitrate
Built-in Storage
- 4 GB
- Supports microSD card expansion
Weight
- 32 g
Dimensions
- Transmission Module: 33.5 × 33.5 × 13 mm (L × W × H)
- Camera Module: 25.55 × 20 × 23.30 mm (L × W × H)Camera Cable Length: 135 mm
- Coaxial Cable: 140 mm
- 3-in-1 Cable: 100 mm
- Antenna: 110 mm
- VTX Mounting Pattern: 20 × 20 / 25.5 × 25.5 mm
Compatible Drone Frames
- 3 inches and above

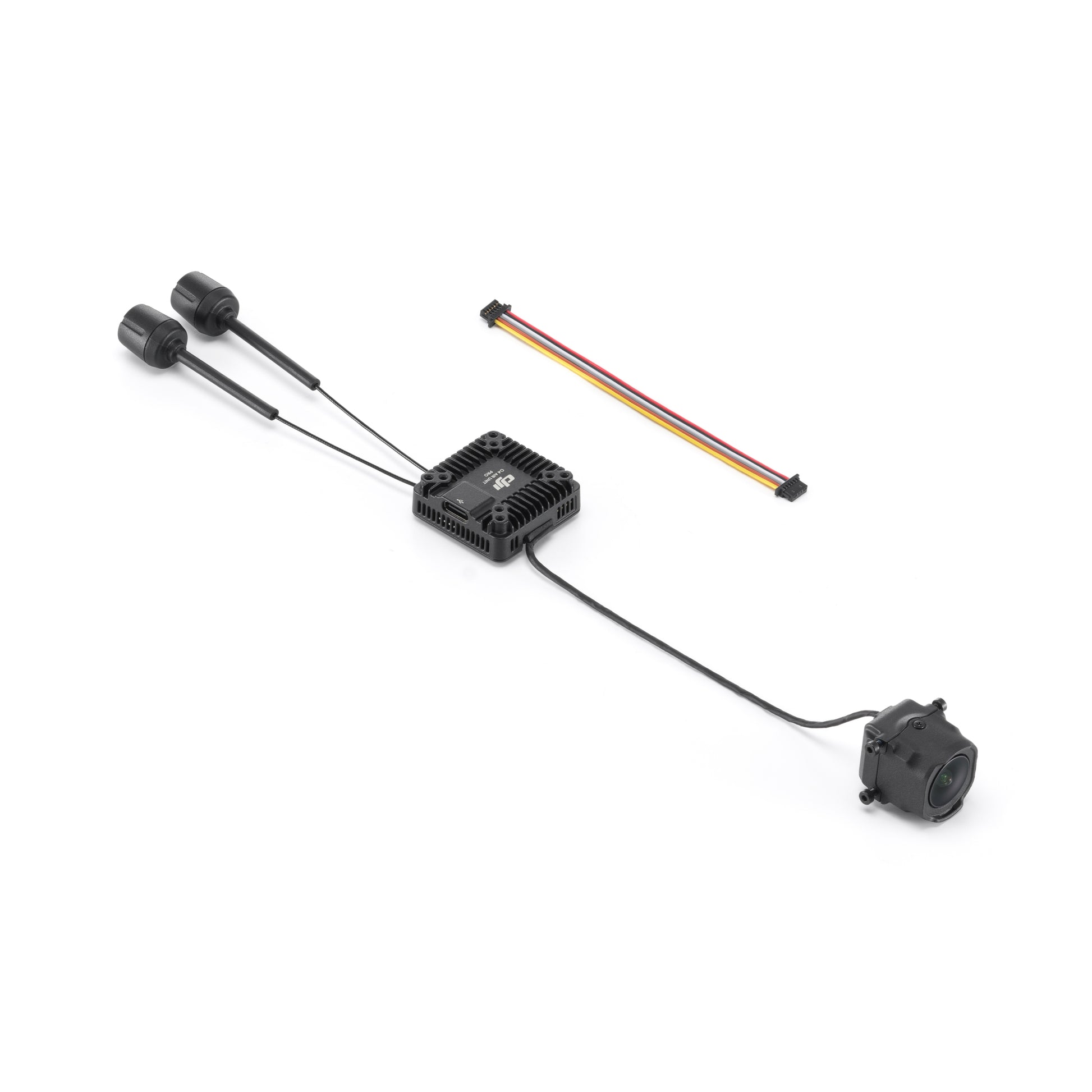

In the Box
- DJI O4 Air Unit Pro Camera Module × 1
- DJI O4 Air Unit Pro Transmission Module × 1
- DJI O4 Air Unit Pro Antenna × 2
- DJI O4 Air Unit Pro 3-in-1 Cable × 1
Compatibility
-
Adaptation Plan 1
DJI Goggles 3
DJI Goggles N3
DJI FPV Remote Controller 3 -
Adaptation Plan 2
DJI Goggles 2
DJI Goggles Integra
DJI FPV Remote Controller 2
