DJI O4 Air Unit

Name: DJI O4 Air Unit
Brand: DJI
Price: 169.99 USD
Availability: OutOfStock

$169.99 USD

~~$205.99 USD~~ $169.99 USD

Sale Sold out

Shipping calculated at checkout.

"Shipping & Returns"

"Free Shipping to USA (8-15 days)"

" Order Tracking Info "

Stay Updated Every Step of the Way.

Once your order is processed (usually within 1-3 business days), you will automatically receive a specific Tracking Number via email.

You can use this number to track your package directly on our website's "Track Your Order" page to see exactly where your items are in real-time.

Note: Sometimes it takes 24-48 hours for the carrier to update the tracking status after the label is created.

''🛡️30-Day Returns''

" 🔒 Secure Pay "

" 👨‍✈️ 24/7 Expert Pilot Support "

View full details

Description

The DJI O4 Air Unit Series marks a new leap in video transmission performance, delivering a cutting-edge digital video transmission solution with higher resolution, lower latency, and extended range. Weighing just 8.2 grams, the DJI O4 Air Unit features a 1/2-inch image sensor capable of capturing 4K/60fps video, offering both portability and versatility. Taking it a step further, the DJI O4 Air Unit Pro boasts an enhanced imaging capability with a 1/1.3-inch image sensor, capable of recording 4K/120fps video. It also supports impressive features such as 10-bit D-Log M color mode and a 155° ultra-wide FOV, ^[1] capturing the vast expanse of the world in unparalleled detail.

Imaging

1/2-inch CMOS
4K/60fps Video
117.6° Wide FOV

Video Transmission

O4 Video Transmission,
Single-Antenna Design
1080p/100fps H.265 Live View Quality
20ms Lowest Video Transmission Latency
10km Max Video Transmission Range
60Mbps Max Video Transmission Bitrate

Built-in Storage

23 GB
Does not support microSD card expansion

Weight

8.2 g

Dimensions

Transmission Module: 30 × 30 × 6 mm (L × W × H)
Camera Module: 13.44 × 12.36 × 16.50 mm (L × W × H)
Camera Cable Length: 50 mm
Coaxial Cable: 50 mm
3-in-1 Cable: 50 mm
Antenna: 80 mm
VTX Mounting Pattern: 25.5 × 25.5 mm

Compatible Drone Frames

2 inches and below

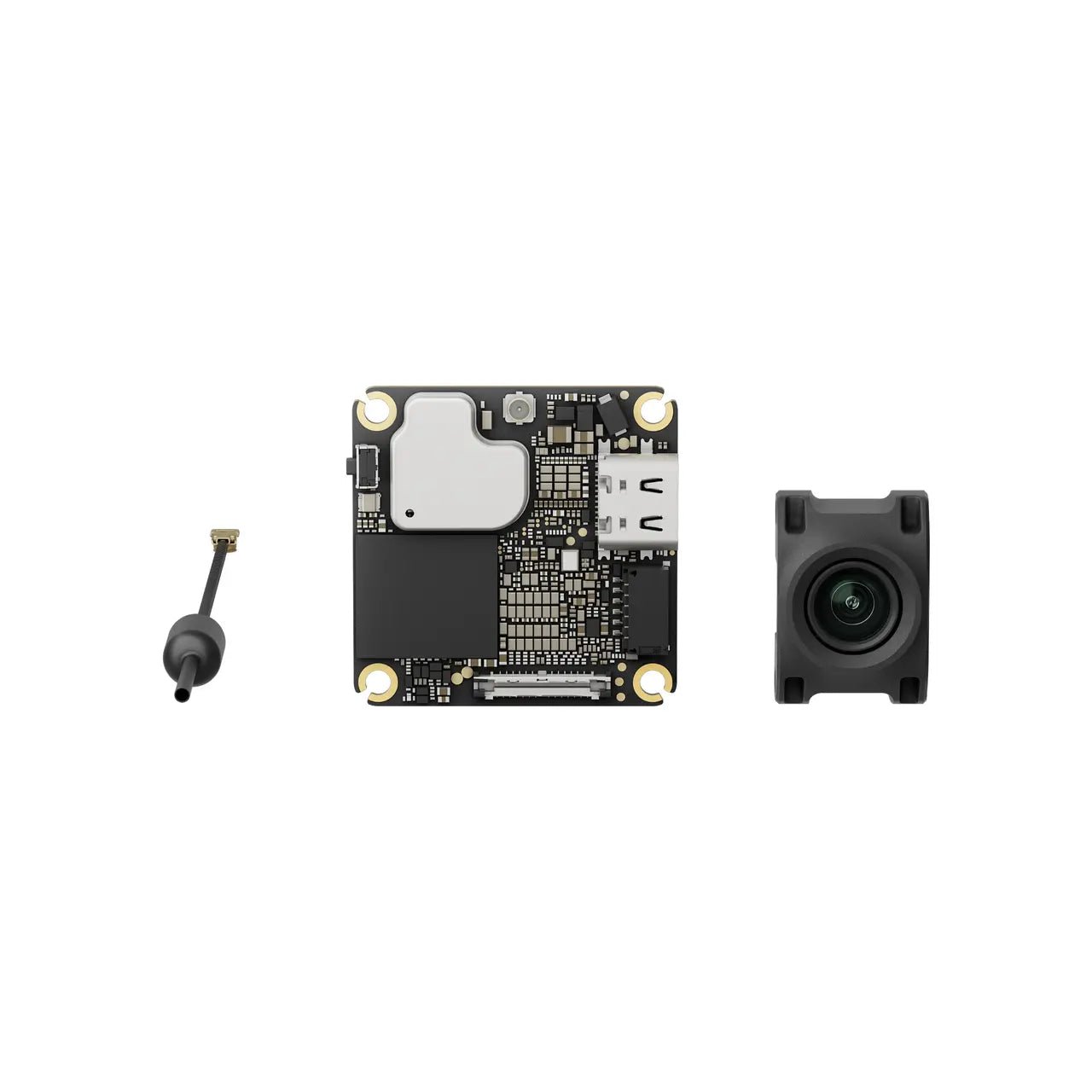

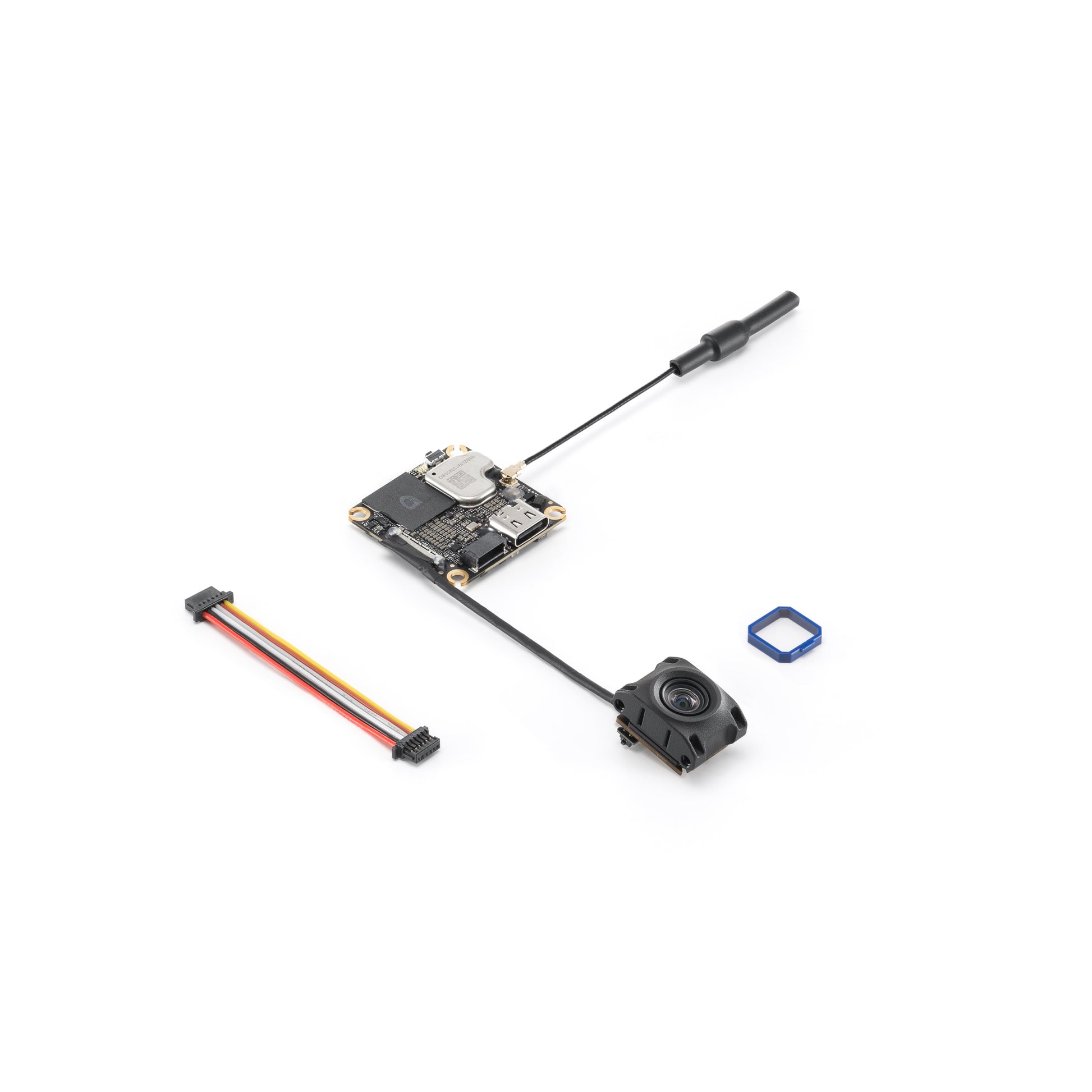

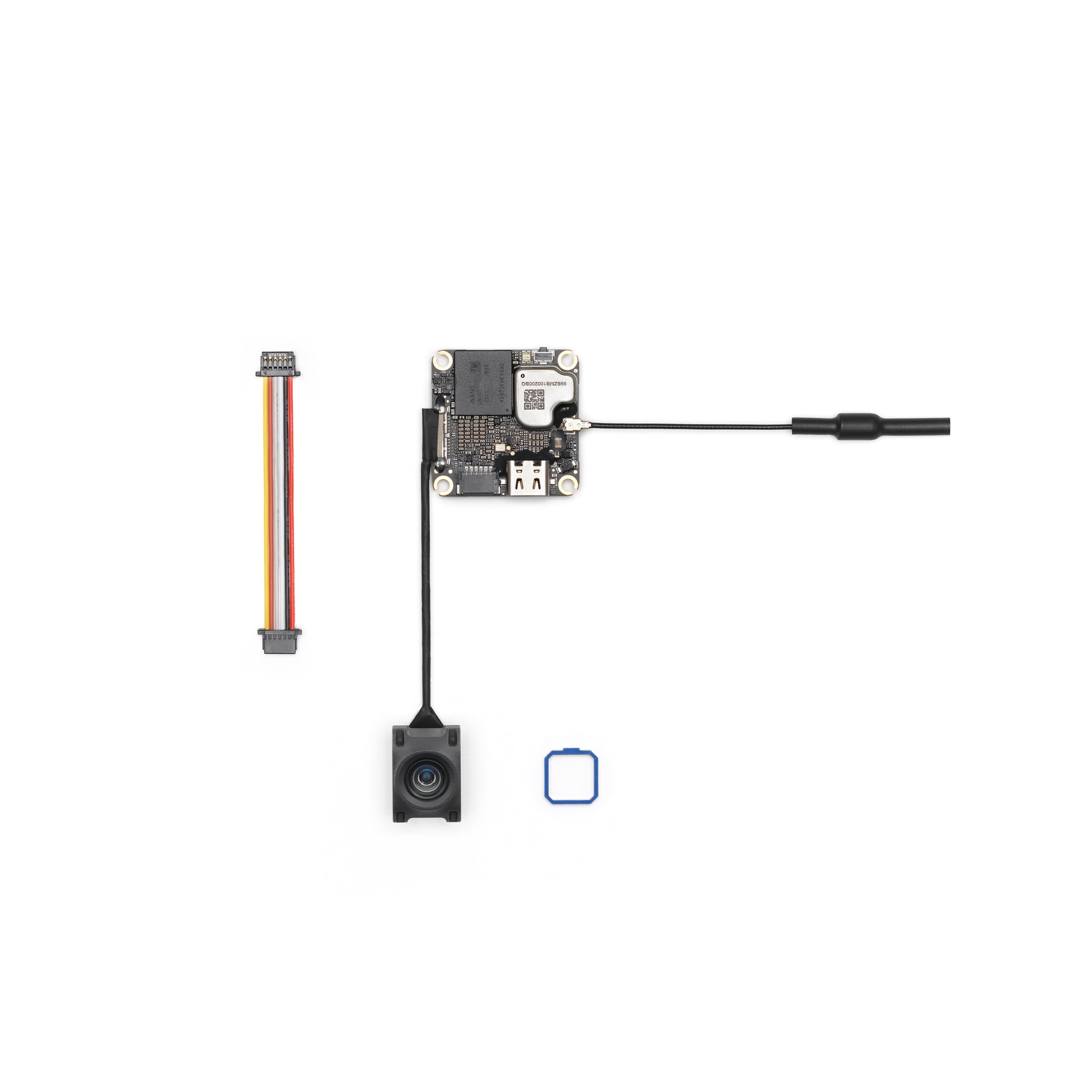

In the Box:

DJI O4 Air Unit Camera Module × 1
DJI O4 Air Unit Transmission Module × 1
DJI O4 Air Unit Antenna × 1
DJI O4 Air Unit 3-in-1 Cable × 1

Compatibility

Adaptation Plan 1
DJI Goggles 3
DJI Goggles N3
DJI FPV Remote Controller 3
Adaptation Plan 2
DJI Goggles 2
DJI Goggles Integra
DJI FPV Remote Controller 2
