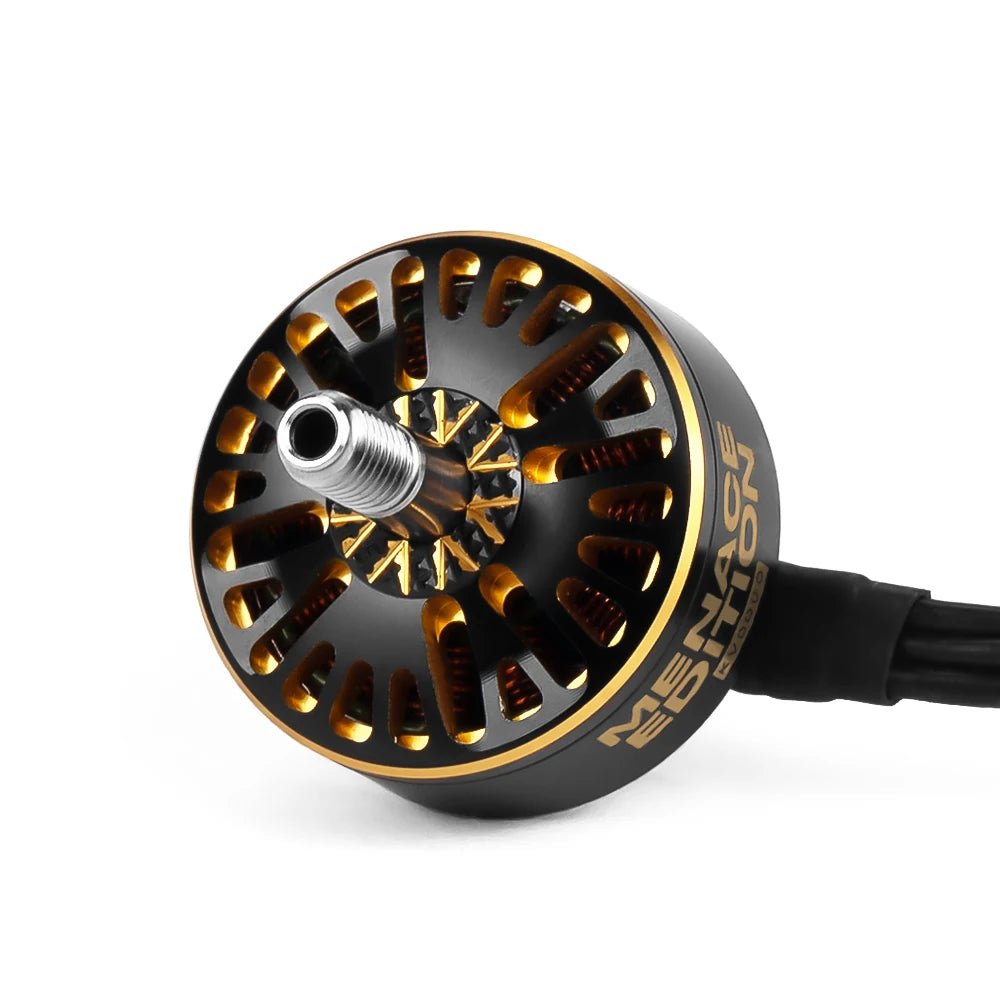

AxisFlying Co-brand Blackbird V4 2307 Brushless Motor

Description

     Experience explosive power with the AxisFlying BlackBird V4 2307. The larger 2307 stator size provides significantly more torque than standard motors, giving you incredible control at low throttle and instant response when you punch it. Equipped with the signature BSA Bearing Shield Technology, these motors are sealed against dust and debris, ensuring they stay smooth flight after flight. Perfect for heavy freestyle builds carrying full-size GoPros.

Bearing Shield Technology

• An IP53 rating dustproof and waterproof bearing placement design.
• BST protects from environmental elements and prolongs the smoothness and lifespan of the bearng .
• Increased thrust effciency and say goodbye to crush motor bearings

Specification

• 1960KV is proxy edition for 6S
• 2060KV is extreme edition for 6S
• Configuration: 12N14P / N52H arc magnet
• Motor stator size: 2307.3
• Motor cables: AWG 20#, 150MM
• Motor dimensions (Dia *Len): Φ27.8*32.9MM  / M5 shaft
• Motor weight (including 150MM cables) : 34.74g
• The motor is very powerful that can get over 1.9KG and most current is about 50A

Package

• 1* BBV4 motor
• 4* M3*8 screws for motor
• 1* M3*4 screw for lock shaft
• 1* M5 Flanged Nylon Insert lock
• 1* O-ring
• 2* Washers
